IBP threaded sleeve for water and gas M/F 22 mm x 1 inch IG302 02208000
IBP IG302 02208000
5052740015801

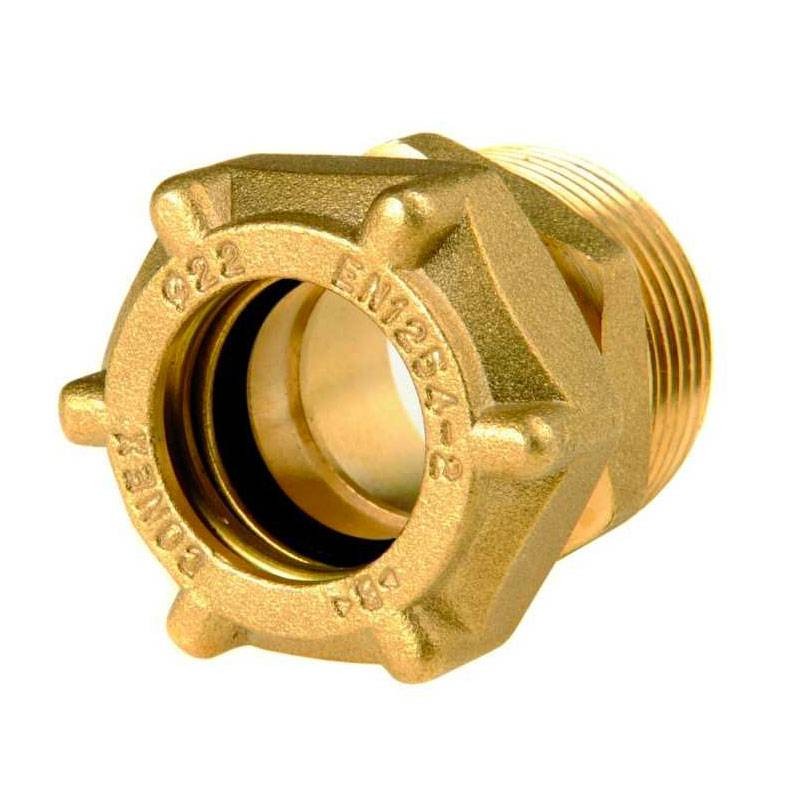

IBP Bänninger Conex O-Ring threaded sleeve for water and gas with the following characteristics:
- Connection: Female/Male Threaded
- Diameter: 22 mm x 1 inch
- O-Ring Seal
- Material: Brass
IBP threaded sleeve for water and gas M/F 22 mm x 1 inch IG302 02208000
€6.96
Tax included
€6.96
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 93
: 16
Pay in installments with Klarna
Features:
- Tapered threads according to EN 10226-1
- Metal seal on the thread: the use of anaerobic sealants or Teflon is recommended
- Avoid applying excessive torque during installation
- Mandatory internal reinforcement bushing in conjunction with annealed copper tubing (R220)
- Fitting material Brass CW617N-DW
- Fittings reference standard EN 1254-2, EN 1254-4
- O-Ring material EPDM black according to EN681-1 for water, HNBR yellow according to EN549 for gas
- Threaded ends according to EN 10226-1
- Compatible piping: Copper according to EN 1057, Stainless Steel according to EN 10312, Carbon Steel according to EN 10305-3
There are no reviews
Data sheet
- Diameter: 22mm
- Type: Sleeves
- Connection: M/F
- Model: Threaded
- Hoses: 1
- Material: Brass
