Abb NA contact for EO 570 5 pushbuttons
ABB EO 570 5
7320500307748

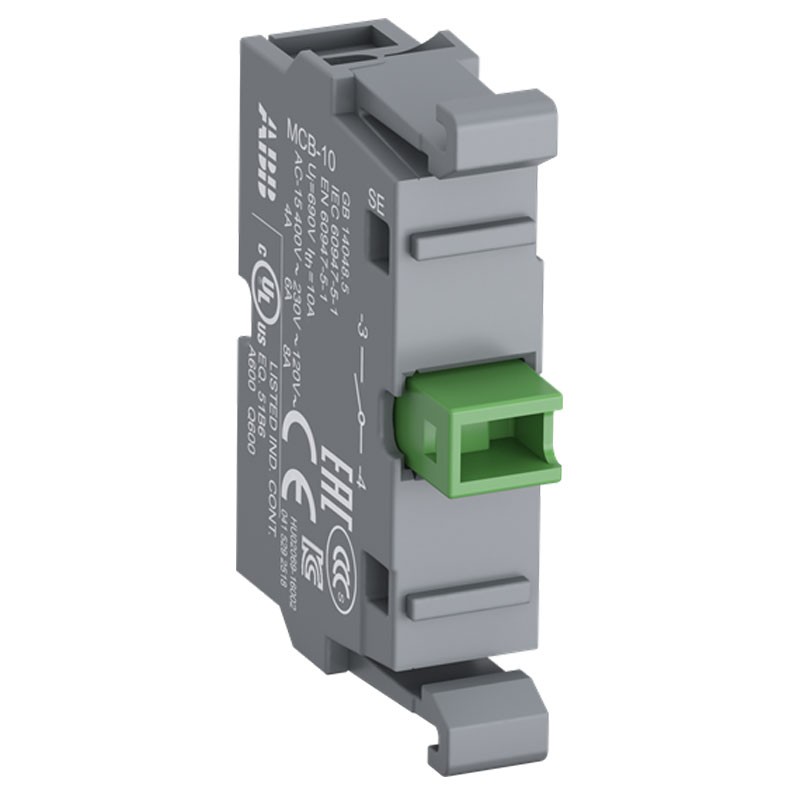

ABB 1 NO contact device, for front mounting push buttons.
Abb NA contact for EO 570 5 pushbuttons
€4.14
Tax included
€4.14
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 55
: 10
Pay in installments with Klarna
From the smallest internal component to the strongest external one, ABB controllers are pieces of true engineering. They are reliable, flexible, robust. The devices of the compact and modular range can be easily combined to achieve a uniform appearance on the panel front. Complete range to meet all customer requirements.
Features:
- Abb Series
- Rated Frequency (f): 50/60 Hz Power Circuit
- Rated Operating Voltage: Maximum 690V AC/DC
- Lighting: Non-illuminated
- Function: Without holder
- Mounting Type: Front mounting
- Number of NC auxiliary contacts: 0
- Number of NO auxiliary contacts: 1
- Degree of protection: Terminals IP20
- Terminal type: Screw Terminals
- Tightening torque: 0.9 Nm
- Cable stripping length: 8 mm
- Rated operating current AC-15 (Ie): (230 V AC) 6A
- Power Loss: Maximum 2.5W
- Mechanical life: 10 million
Ambient Temperature:
- In operation -25 ... +70 °C
- In storage: -40 ... +85 °C
Rated operating current DC-13 (Ie):
- (24 V) 5 A
- (125 V) 1.1 A
Cable cross-sections-main circuit
- Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
- Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm
- Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² Flexible with Insulated Ferrule
- Flexible 1 x 0.75 ... 2.5 mm² flexible
- Flexible 2 x 0.75 ... 2.5 mm
- Solid 1 x 0.75 ... 2.5 mm²
- Solid 2 x0.75...2.5 mm²
Dimensions:
- Width: 0.01 m
- Height: 0.044 m
- Depth: 0.028 m
- Net weight: 0.04 kg
