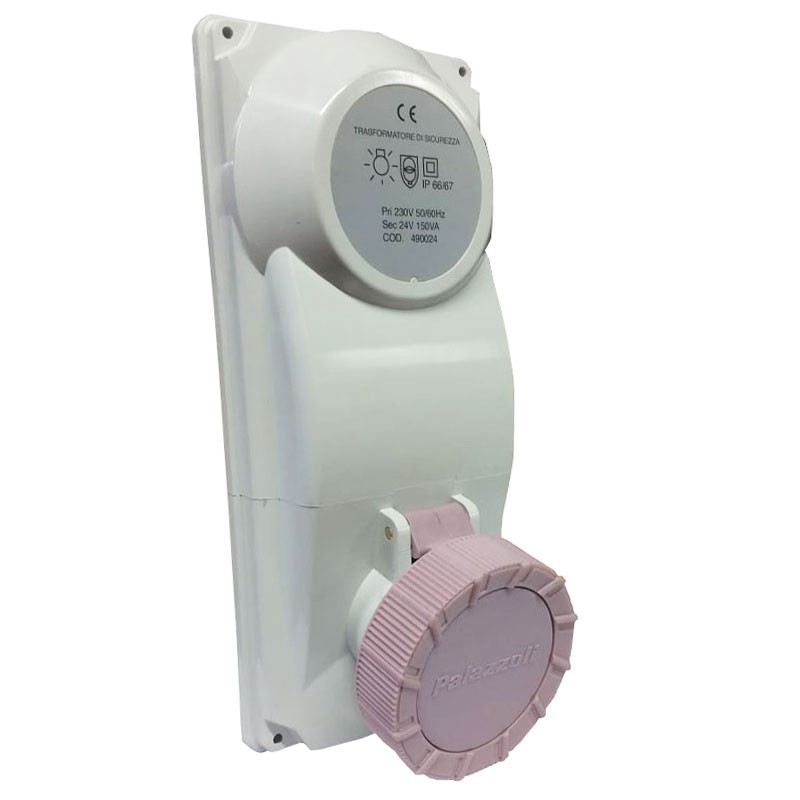

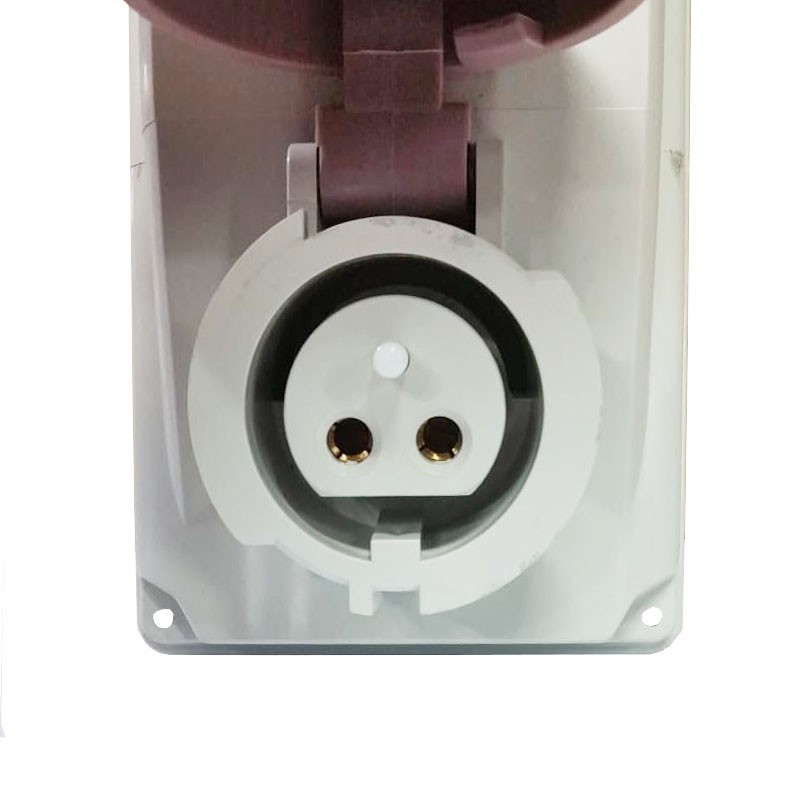

CEE Palazzoli 2P+16A 24V IP67 interlocked industrial socket with transformer
PAL 490024
8014950037223
Palazzoli CEE Interlocked Industrial Socket, with the following characteristics:
- Rated voltage: 230/24V~
- Rated insulation voltage: 690V
- 2 poles
- Nominal current 16A
- Frequency 50/60Hz
- Power 150VA
- With SELV safety transformer
- Complete with thermal protection for panel installation
- Degree of protection IP66/IP67
CEE Palazzoli 2P+16A 24V IP67 interlocked industrial socket with transformer
€148.23
Tax included
€148.23
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 7
: 1
Pay in installments with Klarna
Frequently bought together
Features:
- Palazzoli Series
- Storage ambient temperature: MIN -30°C - MAX +70°C
- Ambient temperature: MIN -25°C - MAX +50°C
- Max conductor section 4 mm²
- Terminals type: indirect clamping
- Shock resistance IK08 according to IEC/EN 62262
- Color: gray RAL 7035
- Body material: thermoplastic
- Execution: panel
- Insulation class II
- Width 103 mm
- Dimensions 103X128X230 mm
There are no reviews
Data sheet
- Type: Interlocked switch socket outlets
- Voltage: 230/24VAC
- Poles: 2P
- Degree of protection: IP67
- Installation: Wall/Recessed
- Amps: 16A
