Gewiss interlocked socket 3P+E 63A IP67 380V GW67252N
GEW GW67252N
8011564742222

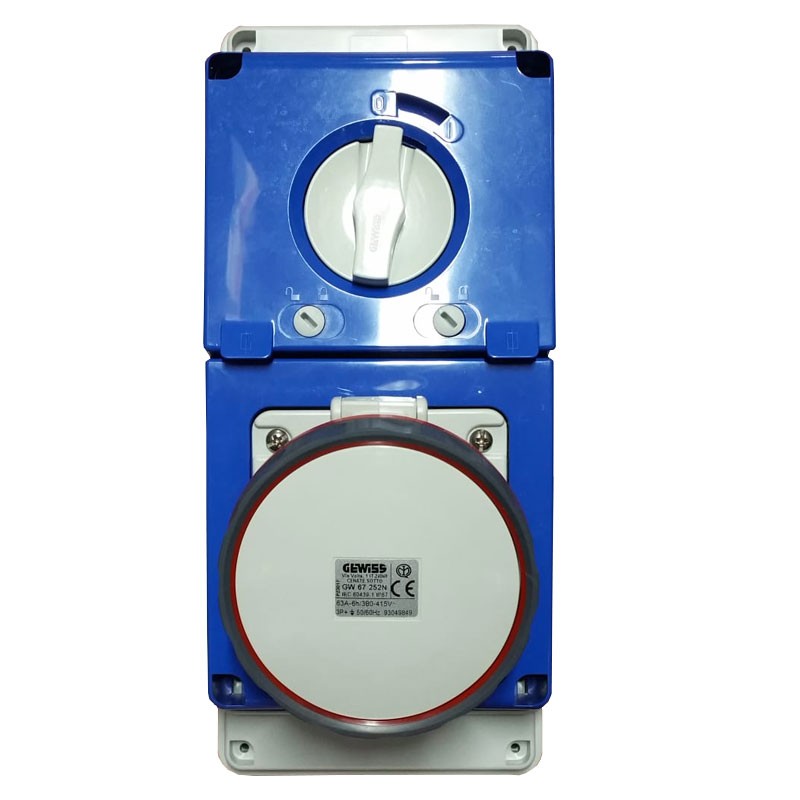

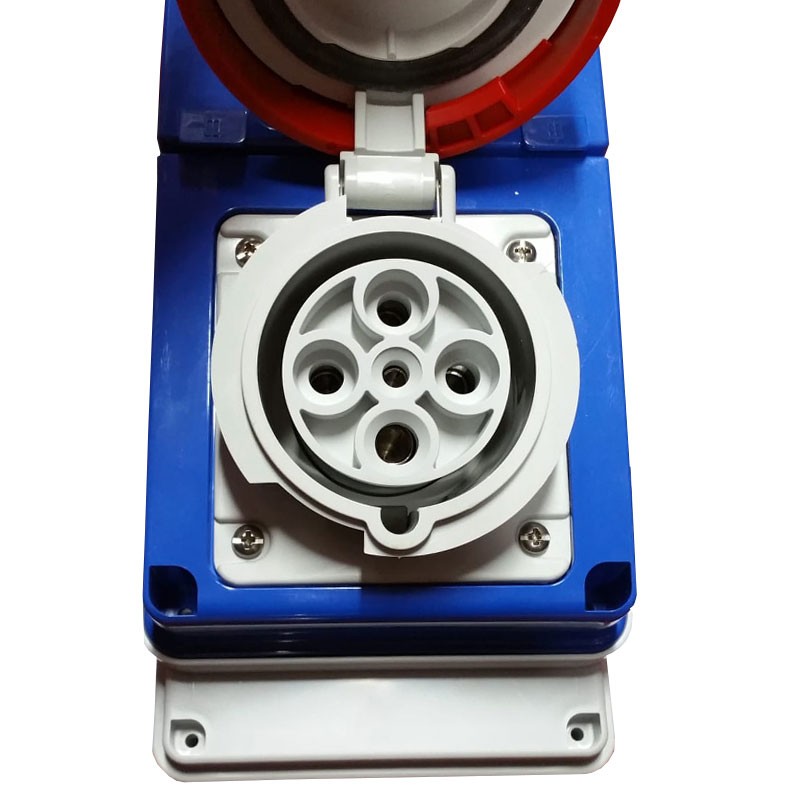

Gewiss vertical interlocked fixed socket, with the following characteristics:
- Rated voltage: 380-415V
- Rated insulation voltage (Ui) 500V
- Nominal current 63A
- Rated current (In) socket IB 48A
- Frequency 50/60 Hz
- Number of poles 3P+T
- Protection degree IP67
Gewiss interlocked socket 3P+E 63A IP67 380V GW67252N
€226.05
Tax included
€226.05
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 30
: 4
Pay in installments with Klarna
Features:
- Gewiss Series
- Protection: Fuse holder base (CBF)
- With bottom
- Fuse type: Ø 22x58 mm
- Typology: vertical
- Fuse breaking capacity: > 50 kA
- Thermopressure with ball: 125 °C (IB socket) - 80 °C (Bottom box)
- Impact resistance: IK08
- Operating temperature: -25 +40 °C
- Electrocod code 2222
- Glow wire test: 850 °C (Socket IB) - 650 °C (Bottom box)
- Color: red
- Nominal short-circuit current (Icc): 10 kA
- Weight: Max. 2,5 Kg
- Rated impulse withstand voltage: 4 kV
- Reference: h 6
- Ware number 85366990
There are no reviews
Data sheet
- Type: Interlocked switch socket outlets
- Voltage: 380/415VAC
- Poles: 3P+T
- Degree of protection: IP67
- Installation: Wall-mounted
- Amps: 63A
