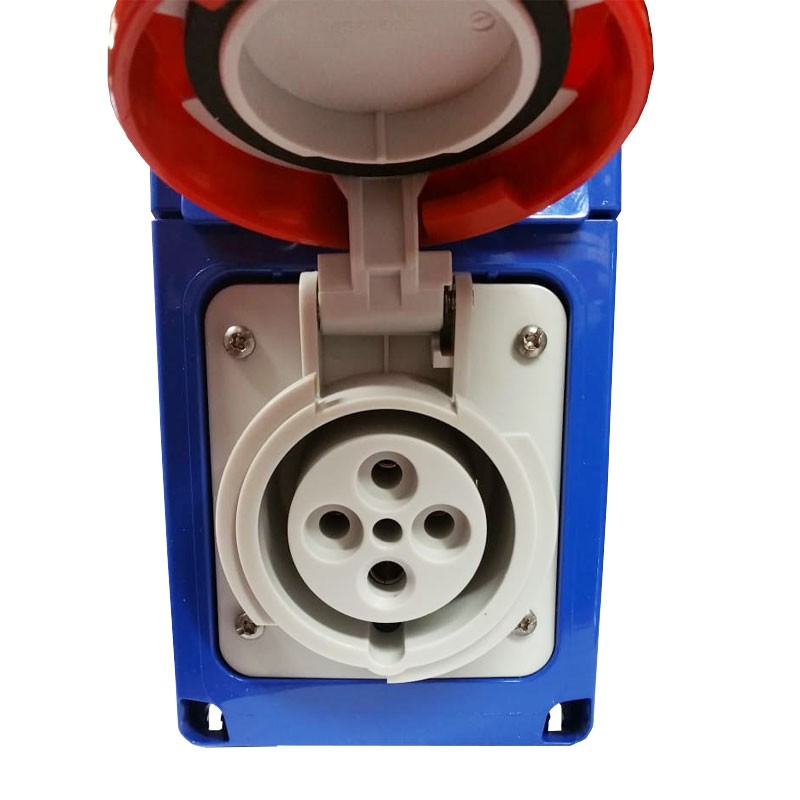

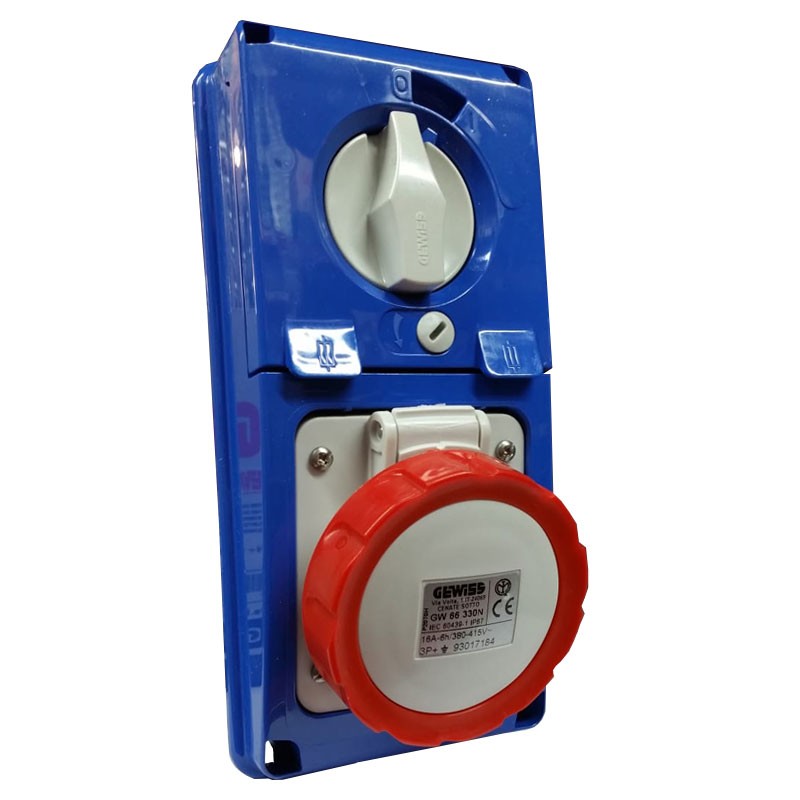

Gewiss vertical interlocked socket 3P+E 16A IP67 GW66330N
GEW GW66330N
8011564741850
Gewiss vertical interlocked fixed receptacle with the following characteristics:
- Rated insulation voltage (Ui) 500V
- Rated voltage: 380 - 415 V
- Rated current (In) IB socket: 15A
- Rated current 16A
- Number of poles: 3P+T
- Frequency: 50/60 Hz
- Degree of protection IP67
Gewiss vertical interlocked socket 3P+E 16A IP67 GW66330N
€79.78
Tax included
€79.78
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 151
: 11
Pay in installments with Klarna
Features:
- Gewiss Series
- Rated short-circuit current (Icc): 10 kA
- Rated impulse withstand voltage: 4 kV
- Without bottom
- Protection with fuse holder base
- Fuse type: Ø 10,3x38 mm
- Fuse breaking capacity: > 50 kA
- Type: vertical
- Thermopressure with ball: 125 °C
- Reference h: 6
- Shock resistance: IK08
- Operating temperature -25 +40 °C
- Electrocod code: 2222
- Glow wire test: 850 °C
- Color: red
- Weight: max. 0,8 Kg
- Ware number 85366990
There are no reviews
Data sheet
- Type: Interlocked switch socket outlets
- Voltage: 380/415VAC
- Poles: 3P+T
- Degree of protection: IP67
- Installation: Wall/Recessed
