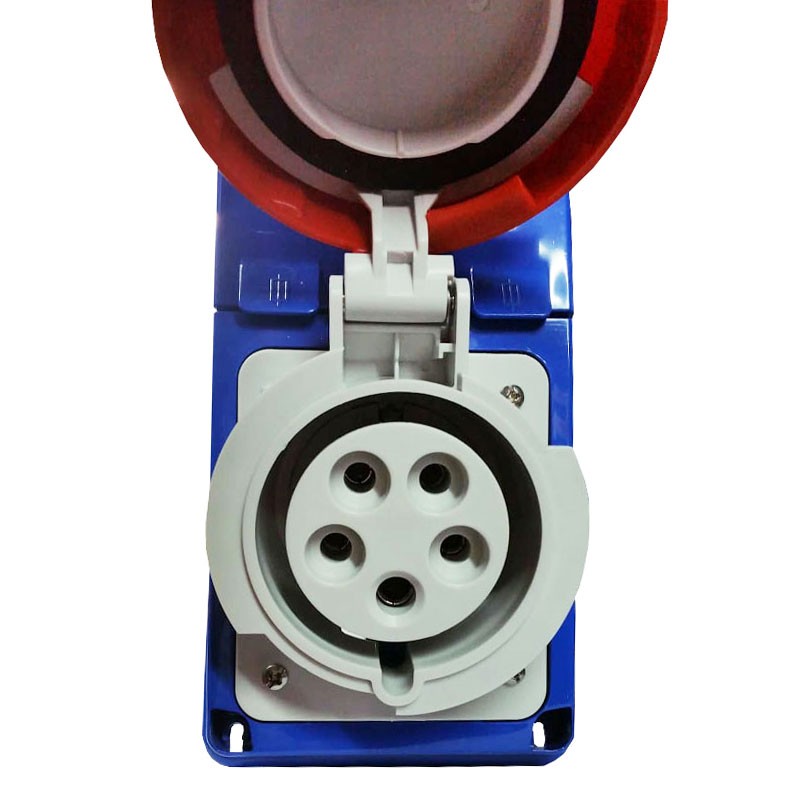

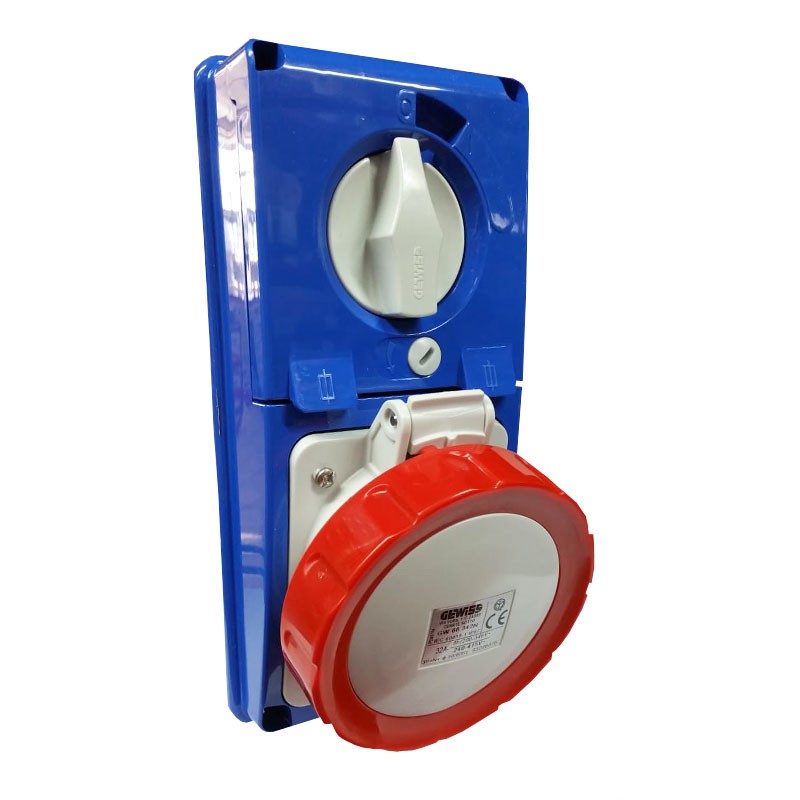

Gewiss vertical interlocked socket 3P+N+E 32A IP67 GW66342N

Gewiss
Gewiss
GEW GW66342N 8011564741973

Gewiss vertical interlocked fixed receptacle with the following characteristics:

  • Rated insulation voltage (Ui) 500V
  • Rated voltage: 380 - 415 V
  • Rated current (In) IB socket: 27A
  • Rated current 32A
  • Number of poles: 3P+T+N
  • Frequency: 50/60 Hz
  • Protection degree IP67

Request info about this product

Gewiss vertical interlocked socket 3P+N+E 32A IP67 GW66342N

€118.35 Tax included
€118.35

Gewiss vertical interlocked socket 3P+N+E 32A IP67 GW66342N

€118.35
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 131
logo priority: 24
Altre disponibilità dal produttore
qty

Gewiss vertical interlocked socket 3P+N+E 32A IP67 GW66342N

€118.35

Buy it within and receive it from Tuesday, 11 November
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Gewiss Series
  • Rated short-circuit current (Icc): 10 kA
  • Rated impulse withstand voltage: 4 kV
  • Without bottom
  • Protection with fuse holder base
  • Fuse type: Ø 10,3x38 mm
  • Fuse breaking capacity: > 50 kA
  • Type: vertical
  • Thermopressure with ball: 125 °C
  • Reference h: 6
  • Shock resistance: IK08
  • Operating temperature -25 +40 °C
  • Electrocod code: 2222
  • Glow wire test: 850 °C
  • Color: red
  • Weight: max. 0,9 Kg
  • Ware number 85366990

There are no reviews

Data sheet

Type:
Interlocked switch socket outlets
Voltage:
380/415VAC
Poles:
3P+N+T
Degree of protection:
IP67
Installation:
Wall/Recessed
