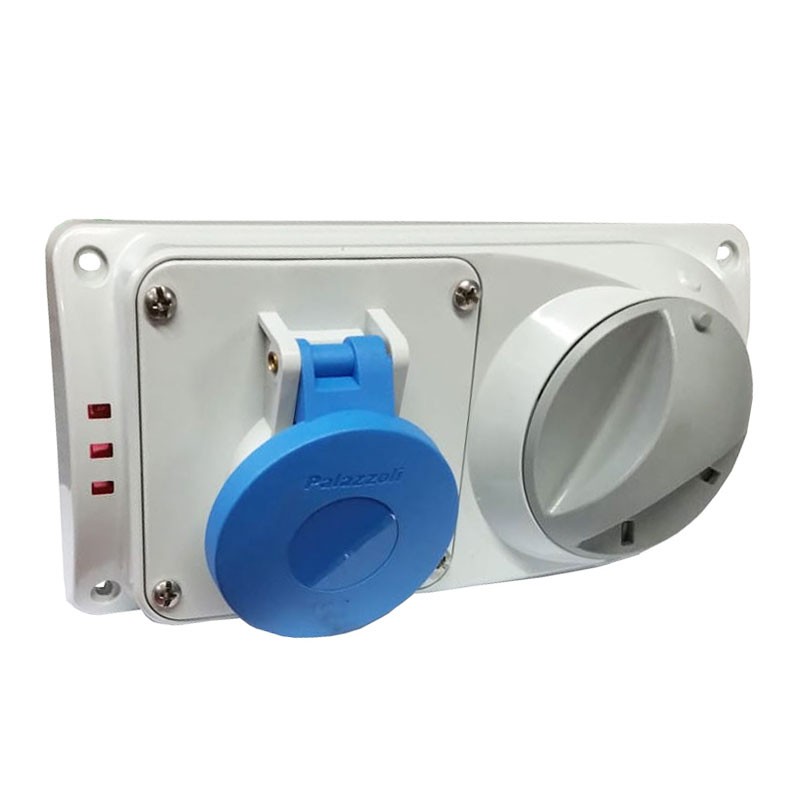

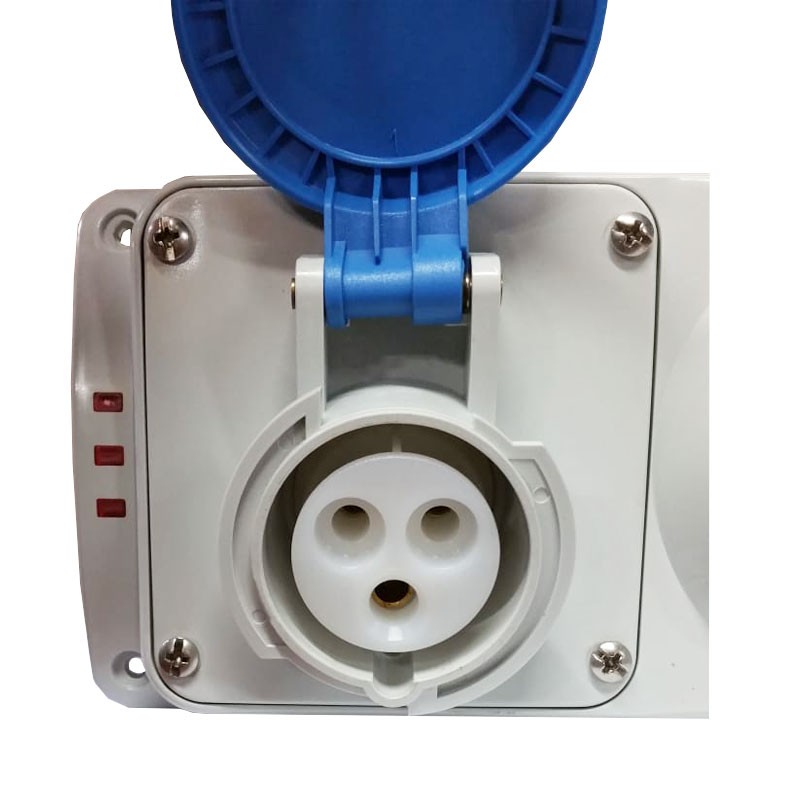

Palazzoli CEE Interlocked Industrial Socket 2P+E 16A 230V IP44 fuse
PAL 494126
8014950006410
Palazzoli interlocked industrial fixed socket, with the following characteristics:
- Rated voltage: 230V
- Rated insulation voltage: 690V
- Poles: 2P+E
- Nominal current 16A
- Frequency: 50/60Hz
- Degree of protection IP44
- Horizontal and compact
- With fuse holder base
Palazzoli CEE Interlocked Industrial Socket 2P+E 16A 230V IP44 fuse
€46.36
Tax included
€46.36
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
: 1
Pay in installments with Klarna
Features:
- Palazzoli Series
- Storage ambient temperature: MIN -30°C - MAX +70°C
- Ambient temperature: MIN -25°C - MAX +50°C
- Max conductor section 10 mm²
- Color: gray RAL 7035
- Terminal type: indirect clamping
- Shock resistance IK08 according to IEC/EN 62262
- Hourly ref: 6h
- Body material: thermoplastic
- Execution: panel
- Protection: fuses
- Width: 103 mm
- Insulation class II
- Utilization category AC-23A / AC-3 16A - 250V
- Dimensions: 103X206X80 mm
There are no reviews
Data sheet
- Type: Interlocked switch socket outlets
- Voltage: 220/250VAC
- Poles: 2P+T
- Degree of protection: IP44
- Installation: Recessed
- Amps: 16A
