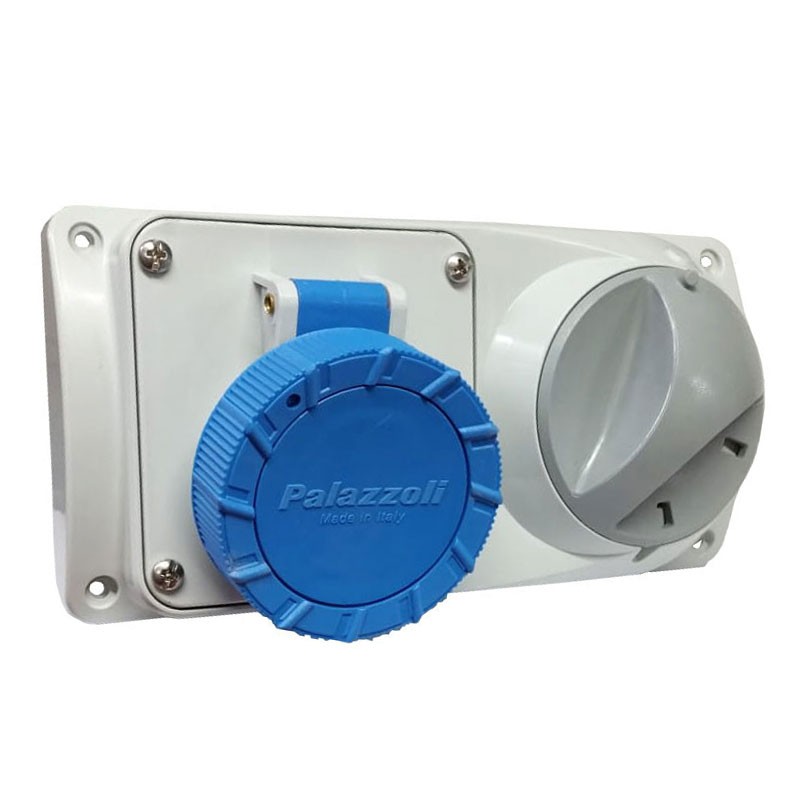

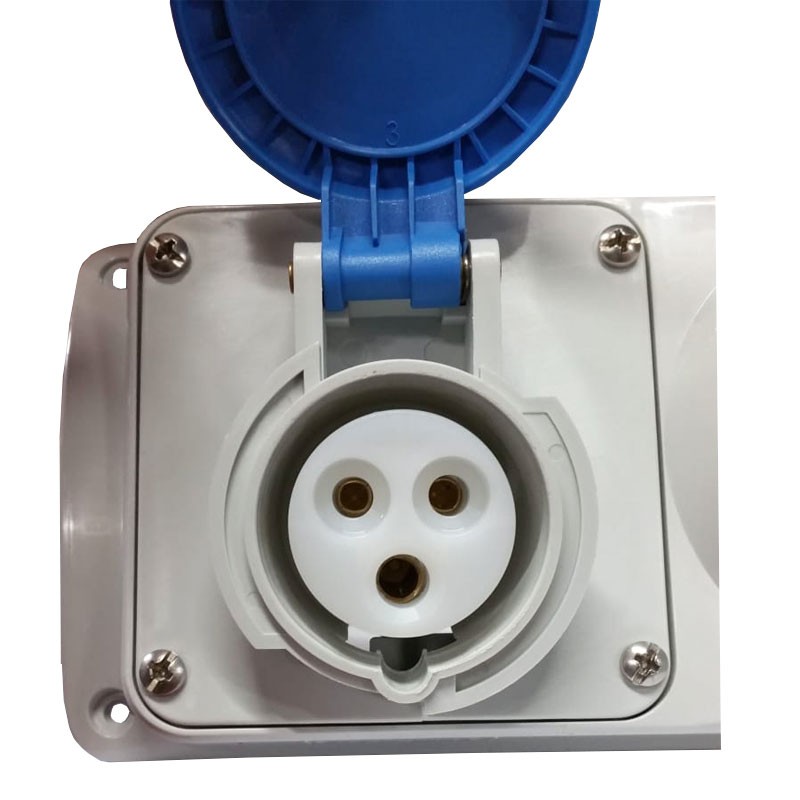

Palazzoli CEE Interlocked Industrial Socket 2P+E 16A 230V IP55

Palazzoli
Palazzoli
PAL 495126 8014950010974

Palazzoli interlocked industrial fixed socket, with the following characteristics:

  • Rated voltage: 230V
  • Rated insulation voltage: 690V
  • Poles: 2P+E
  • Nominal current 16A
  • Frequency: 50/60Hz
  • Degree of protection IP55
  • Horizontal and compact

Request info about this product

Palazzoli CEE Interlocked Industrial Socket 2P+E 16A 230V IP55

€37.67 Tax included
€37.67

Palazzoli CEE Interlocked Industrial Socket 2P+E 16A 230V IP55

€37.67
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 3
Altre disponibilità dal produttore
qty

Palazzoli CEE Interlocked Industrial Socket 2P+E 16A 230V IP55

€37.67

Buy it within and receive it from Monday, 22 December
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Palazzoli Series
  • Storage ambient temperature: MIN -30°C - MAX +70°C
  • Ambient temperature: MIN -25°C - MAX +50°C
  • Max conductor section 10 mm²
  • Color: gray RAL 7035
  • Terminal type: indirect clamping
  • Shock resistance IK08 according to IEC/EN 62262
  • Hourly ref: 6h
  • Body material: thermoplastic
  • Execution: panel
  • Protection: none
  • Width: 103 mm
  • Insulation class II
  • Utilization category AC-23A / AC-3 16A - 250V
  • Dimensions: 103X206X80 mm

There are no reviews

Data sheet

Type:
Interlocked switch socket outlets
Voltage:
220/250VAC
Poles:
2P+T
Degree of protection:
IP55
Installation:
Recessed
Amps:
16A
