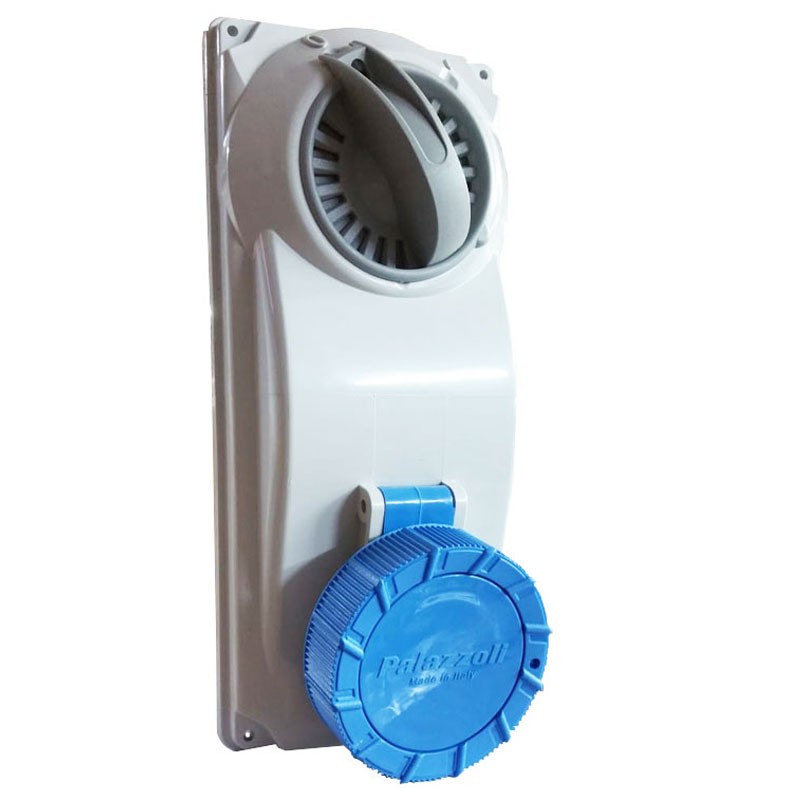

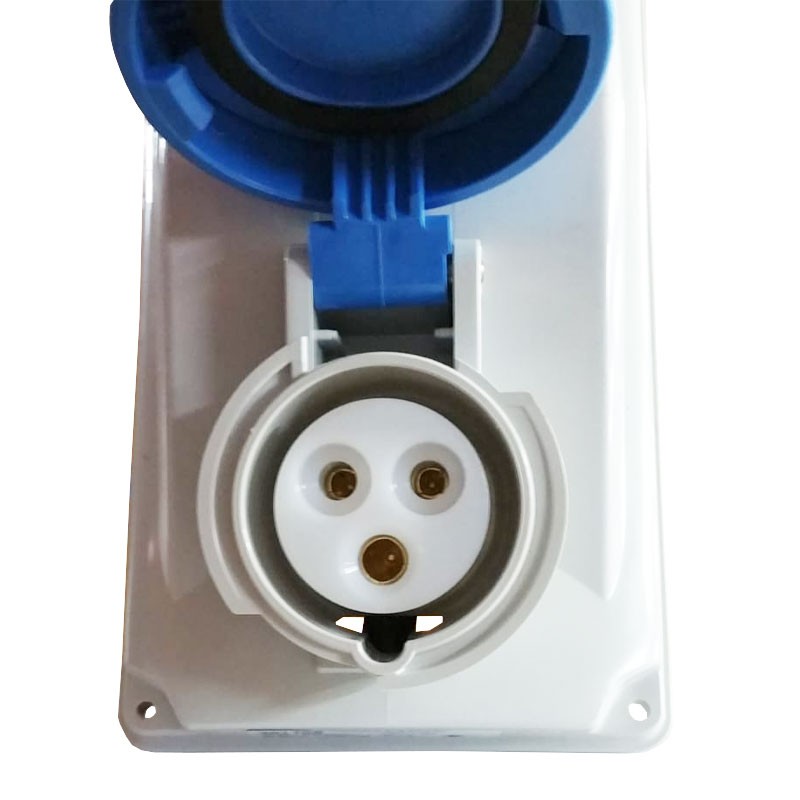

Palazzoli CEE Interlocked Industrial Socket 2P+E 32A 230V IP67
PAL 491226
8014950037483
Palazzoli CEE Interlocked Industrial Socket, with the following characteristics:
- Rated voltage: 230V
- Rated insulation voltage: 690V
- 2 poles+T
- Rated current 32A
- Frequency 50/60Hz
- Degree of protection IP66/IP67
- Suitable for panel installation
Palazzoli CEE Interlocked Industrial Socket 2P+E 32A 230V IP67
€51.85
Tax included
€51.85
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 7
: 3
Pay in installments with Klarna
Frequently bought together
Features:
- Palazzoli Series
- Storage ambient temperature: MIN -30°C - MAX +70°C
- Ambient temperature: MIN -25°C - MAX +50°C
- Terminal type: indirect clamping
- Max conductor section 10 mm²
- Protection: none
- Utilization category AC-23A / AC-3 32A - 250V
- Shock resistance IK08 according to IEC/EN 62262
- Color gray RAL 7035
- Hourly Ref: 6h
- Body material: thermoplastic
- Execution: panel
- Insulation class II
- Width 108 mm
- Dimensions 103X230X135 mm
Data sheet
- Type: Interlocked switch socket outlets
- Voltage: 220/250VAC
- Poles: 2P+T
- Degree of protection: IP67
- Installation: Wall/Recessed
- Amps: 32A
