LG DualCool Atmosphere Air Conditioner 9000BTU 2.5kW WI-FI R32 A++/A+
KIT AP09RK.NSJ
8806091603661
LG DualCool Atmosphere air conditioner 9000BTU 2.5kW, with GAS R32 included, Energy Class A++/A+.
Kit includes:
- 1 indoor unit AP09RK.NSJ
- 1 outdoor unit AP09RK.UA3
- 1 Infrared remote control
Strengths:
- Advanced air purification system AirCare Complete System.
- Ion diffuser
- 4-color air quality display
- DUAL Inverter™ compressor with 10-year warranty
- ThinQ built-in wifi
For a room of approximately 27m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
LG DualCool Atmosphere Air Conditioner 9000BTU 2.5kW WI-FI R32 A++/A+
€917.97
Tax included
€917.97
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Air conditioners of the same series
Frequently bought together
- -50%
- -50%
Advantages and Functions Indoor Unit:
Fan Sterilization System:
- Using UV (ultraviolet) LED, the air and FAN inside the SPLIT unit are sterilized. Ultraviolet rays of UVC wavelength directly damage the DNA of microorganisms (bacterial / Mould), making it impossible for them to multiply.

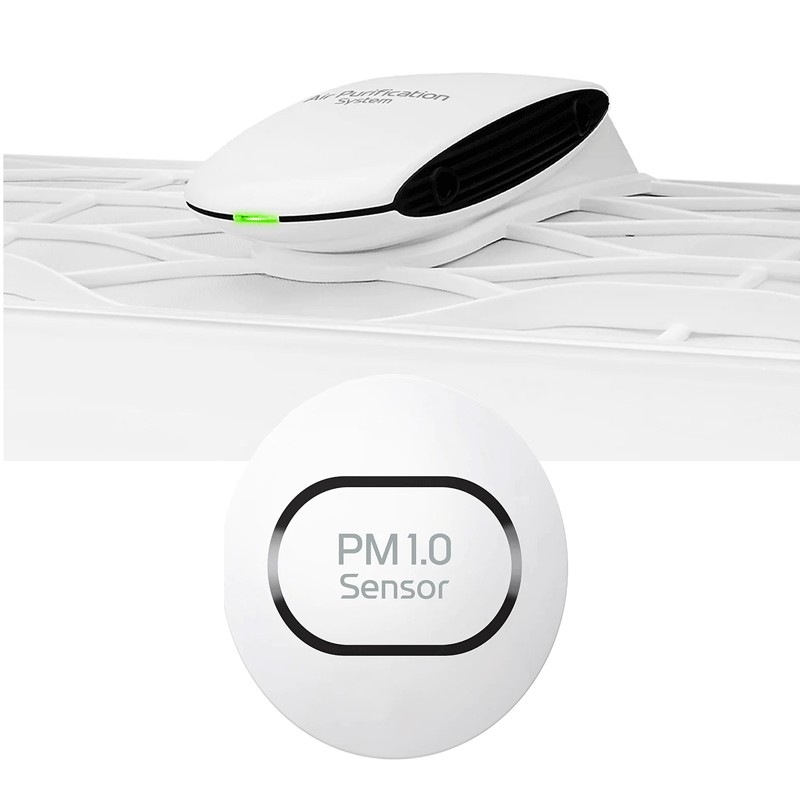

Air Purification System:
- Indoor unit equipped with dust detector with diffused light meter .Air diameter detected less than 1 micron with display of room concentration via display.
- Indoor unit equipped with Ionizer with negative ion emission according to the degree of PM measured by the detector. Green LED identifies its power on and ion emission
- Indoor unit equipped with full-coverage magnetic filter capable of electrostatically attracting dust ensuring 99% purification in less than 2 hours.
Allergy Filter:
- Allergy Filter removes allergy-causing substances, such as house dust mites, pollen, fungi, mold, floating in the air
- Indoor unit equipped with display showing PM concentration in micro grams per cubic meter
BLDC Ventilation Motor:
- The ventilation motor is BLDC type in addition to allowing greater modulation of capacity ,given the wider range of rotation speeds available, it dissipates less heat than conventional AC motors. It operates with less noise and in the absence of electrical humming.
Lifting clip:
- On the indoor unit, there is a lifting clip that allows the product to be kept at an angle to the wall to facilitate piping and electrical wiring connections.
Removable bottom panel:
- On the indoor unit, the bottom panel is removable to improve access to electrical connections and piping. When the connection work is finished ,the panel can be easily repositioned quickly and easily.
Built-in Wifi:
- Indoor unit with built-in Wi-Fi to manage key functions through the Smart ThinQ app available for Android or iOS
Voice Control: Indoor unit compatible with Google Home voice assistants Available functions:
- Power on
- Turning off
- Temperature adjustment
- Operating mode setting
- Ventilation adjustment
- Monitoring
Total airflow control:
- Indoor unit with total airflow control. Vertical adjustment with 6 steps, which can be displayed on infrared control, and 5 horizontal steps
Comfort Air function:
- By pressing the button on the infrared control, the positioning of the deflector occurs automatically according to the selected operating mode. In heating, the deflector adjusts to the lowest position while in cooling to the highest position.
Smart Diagnosis:
- Smart Diagnosis allows functionality and troubleshooting to be checked via smartphone with a simple SMART DIAGOSIS app available for android devices.
Advantages and Features Outdoor Unit:
Structure:
- Self-supporting structure made of galvanized steel sheet panels painted in warm gray with surface treatment and Cataphoresis process, a surface treatment that can give considerable resistance to corrosion in order to protect the outdoor unit from weathering. Removable right panel for connection operations with the refrigeration circuit. Removable cover for access to control components. Protective grille on air exhaust.
Heat exchanger:
- Wide Louver Fin external heat exchanger that gives an improvement in 'exchange efficiency of 28% more than a conventional exchanger coated with a GOLD FIN galvanic bath anti-corrosion treatment to give better resistance to acid rain and saltiness in sea areas.
Compressor:
- Capacity delivery system consisting of No. 1 Twin Rotary Dc inverter type hermetic compressor with direct starting,. linear capacity control with a range of action from a minimum of 10%up to a maximum of 130%..Warranty 10 years.
Motor/fan:
- Heat exchange fan with outside helical type with suction on the back side and horizontal discharge on the front side with air flow rate of 27 cu m/min. BLDC inverter motor type with 0.43kW air flow rate and low noise.
Refrigerant circuit:
- Made of aluminum tubes, complete with filter driers, 4-way cycle reversing valve, electronically controlled expansion valves on each connection, liquid state refrigerant separator with storage function at compressor suction, dedicated service valves at each connection of indoor units on gas side. The distribution system provides connections having the liquid and gas diameters of mm 6.35and mm 9.52, respectively.
Main Electronic Board:
- Main electronic control and safety board accessible by removing the top cover, capable of automatically managing the cooling and heating operation modes and the defrost function of the external heat exchanger.
Specifications:
Cooling:
- Min/Max rated capacity: 2.5 KW (890-3.7)
- Rated power consumption Min-nom-max: W 200-710-1400
- SEER 6.5
- Energy class: A++
- EER 3.52
- Indicative annual energy consumption kW/a 133
Heating:
- Rated capacity Min/Max: KW 3.3 (890-4100)
- Min-nom-max rated power consumption 195-850-1600
- SCOP: 4.0
- Seasonal energy efficiency class A+
- COP 3.88
- Indicative annual energy consumption: kWh/a 875
Indoor Unit Features:
- Dimensions: 857x348x189mm
- Weight 9.5kg
- Ventilation Capacity Cooling Sleep m/min 3.0 - Min m/min 4.2 - Medium m/min 6.6 Air Flow Rate Cooling High m/min 10.0 Air Flow Rate Cooling Max (Power) m/min 11
- Fan Capacity Heating Min m/min 4.2 Air Flow Rate Heating Medium m/min 6.6 Air Flow Rate Heating High _ Max m/min 10.0/11
- Dehumidification capacity l/hr 1.1
- Sound pressure level (Cooling/Heating) dBa 19-27-35-41/45 - 30-35-41/45
- Sound power level dBA 59
- Power supply V /Hz 220-240 / 50
Outdoor Unit Features:
- Dimensions: 717x495x230mm
- Weight 27.8kg
- Sound Pressure Level dBa 48/50
- Sound Power Level dBA 65
- Air Flow Rate Cooling High ㎥/min 27
- Power Supply Single Phase 220-240 / 50Hz
- Liquid/Gas Piping 6.35 (1/4") - 9.52 (3/8)
- Gas precharge 7.5m 700g
- Gas addition g/m 20
- GWP 675
- Max/min piping length 15/3 meters
- Max height difference between indoor/outdoor unit 7 meters
- Refrigerant Type: R32 Gas
- Operating Limits: Cooling Min~Max °CDB -10~48 - Heating Min~Max °CWB→°CDB -10~24
There are no reviews
Data sheet
- Air conditioners: Monosplit
- Gas: R32
- Power: 9000 BTU (2,5 Kw)
- WIFI: Integrated
- Room Size: 27m²
- Energy class: A++
- Series: Atmosfera
