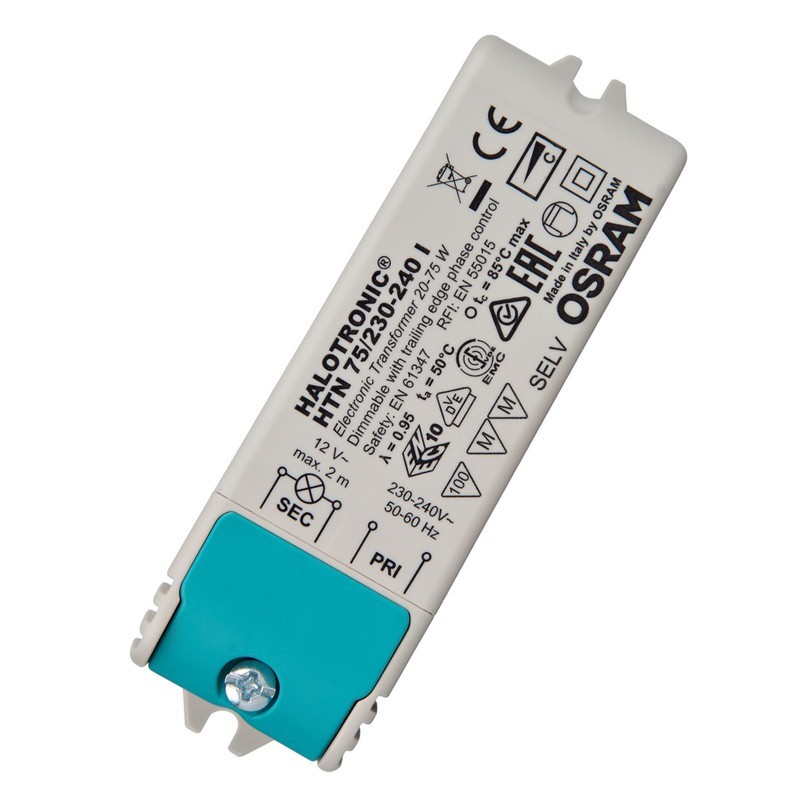

Electronic Transformer Osram Ledvance HTN 75/230-240V HTN75I
LDV HTN75I
4008321073037
Electronic transformer Osram Ledvance HTN 75/230-240V 20-75W dimmable. Suitable for very low voltage halogen lamps.
Electronic Transformer Osram Ledvance HTN 75/230-240V HTN75I
€30.22
Tax included
€30.22
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
APPLICATION AREAS:
- Effect and accent lighting
- Stays
- Lighting of objects
- Meeting rooms
- Restaurants
- Furniture luminaires for recessed or surface mounting
- Shop lighting
- Event rooms.
PRODUCT ADVANTAGES:
- Minimal power loss due to high efficiency
- Wire clamp suitable for different types of cables (HTM)
- Suitable for installation in small spaces thanks to its compact and functional design
- Extremely compact transformer for installation in very tight spaces (HTN)
- Protective operation over the entire partial load range to ensure long lamp life.
Features:
- Line frequency: 5060 Hz
- RI suppression: according to EN 55015 (A1: 2007)/CISPR 15, EN 55022
- Mains Harmonics according to CEI EN 61000-3-2
- Electromagnetic immunity according to CEI EN 61547
- Safety: according to EN 61347
- Short circuit, overload, overtemperature protection: electronically reversible
- Electrical insulation between primary and secondary side
- Energy efficiency: ? 91% - according to Regulation (EU) No 1194/2012
- Dimmable with IGBT phase cut dimmer (without HTN) and TRIAC.
Electrical data:
- Lamp power 2075 W
- Supply current 0.32 A
- Power factor A 0,95
- Operating frequency 50 kHz
- Output voltage 11.5 / 11.7 V
- Nominal voltage 230240 V
- Input voltage 207254 V
- Mains frequency 5060 Hz
- System power 79.00 W
- Voltage range 230240 V
- Trigger current 0.37A
- Dimensions: Length 104 mm - Width 33 mm - Distance between fixing holes/length 94 mm - Height 22 mm
- Cable cross section, input side 1.5 mm
- Cable cross section, output side 1.5 mm.
Technical specifications:
- Dimmer Downhill phase control
- Overload protection Automatically reversible
- Overheating protection Automatically reversible
- Short circuit protection Automatically reversible.
Data sheet
- Type: Electronic transformers
