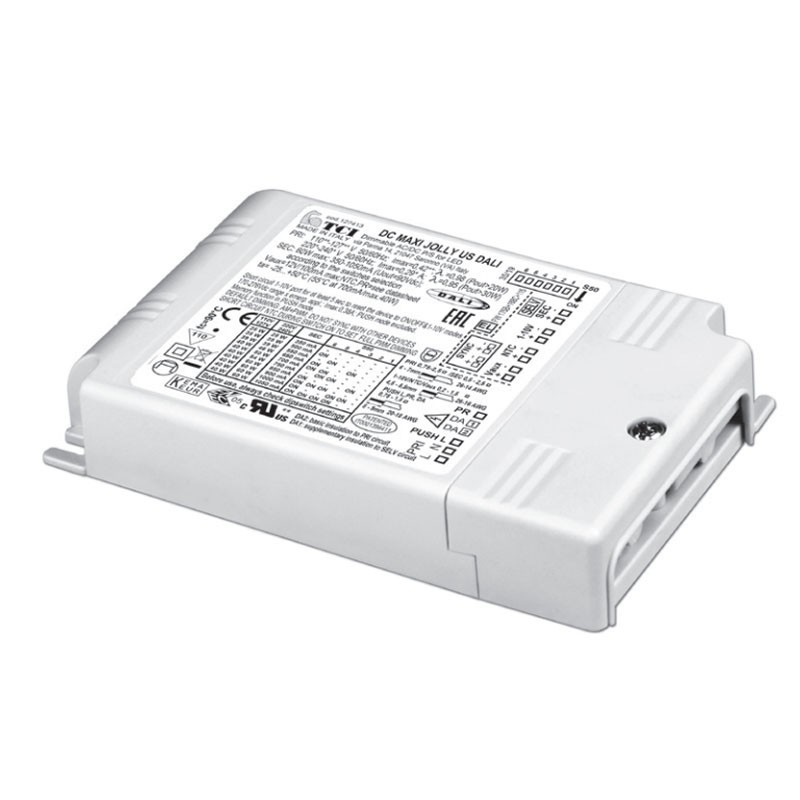

TCI DC MAXI JOLLY US DALI power supply unit for LED lamps 127413
TCI 127413
TCI DC MAXI JOLLY US DALI dimmable ballast for LED lamps.
TCI DC MAXI JOLLY US DALI power supply unit for LED lamps 127413
€53.38
Tax included
€53.38
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 29
: 20
Pay in installments with Klarna
Features:
- AM/PWM dimming
- Output power 25W
- V out 274DC
- I out 350 mA cost DC
- U out 90V
- ta -25+50 Degrees
- Nominal voltage 110 ÷ 127 V / 220 ÷ 240 V
- Frequency 50-60 Hz
- AC Operation range Operating voltage AC 99 ÷ 264 V
- Multi-power power supply equipped with dip-switch for output current selection
- IP20 stand-alone power supply, for indoor use
- Protected in class II against electric shock for direct and indirect contacts
- Can be used for luminaires in protection class I and II
- Active PFC
- Analog input (NTC) for thermal sensor connection
- Auxiliary output 12 V max. 100 mA
- Controlled current ±5 % including temperature variations
- Input and output terminals on the same side (cable cross section up to 2.5 mm2 / AWG13)
- Cable clamp on primary and secondary for cable diameter: min. 3 mm - max. 8 mm
- Protection: - thermal and short circuit; - against mains extra-voltage; - against overloads
- Thermal protection = C.5.a.
There are no reviews
