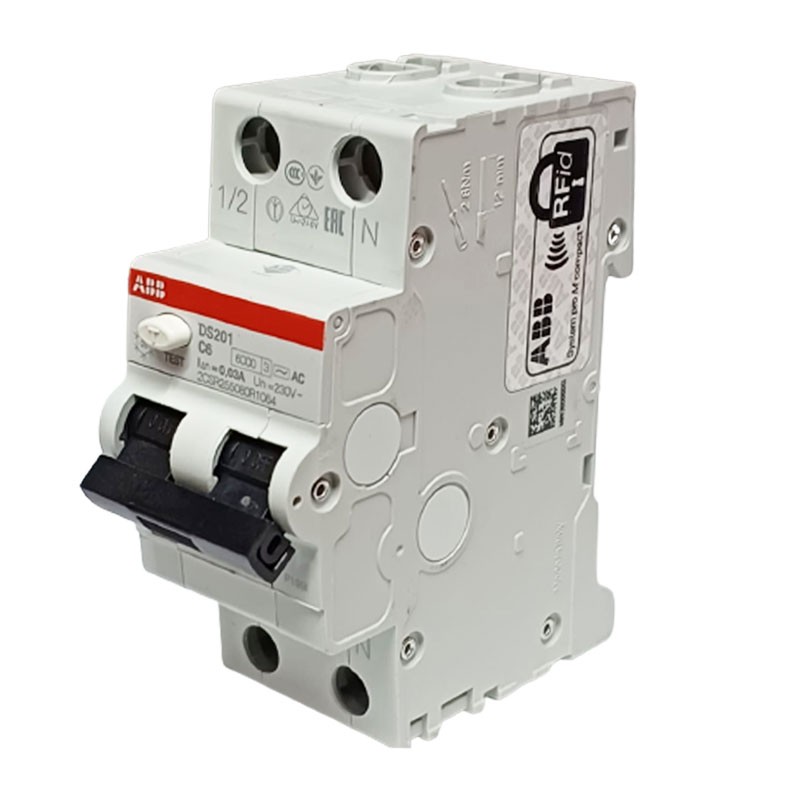

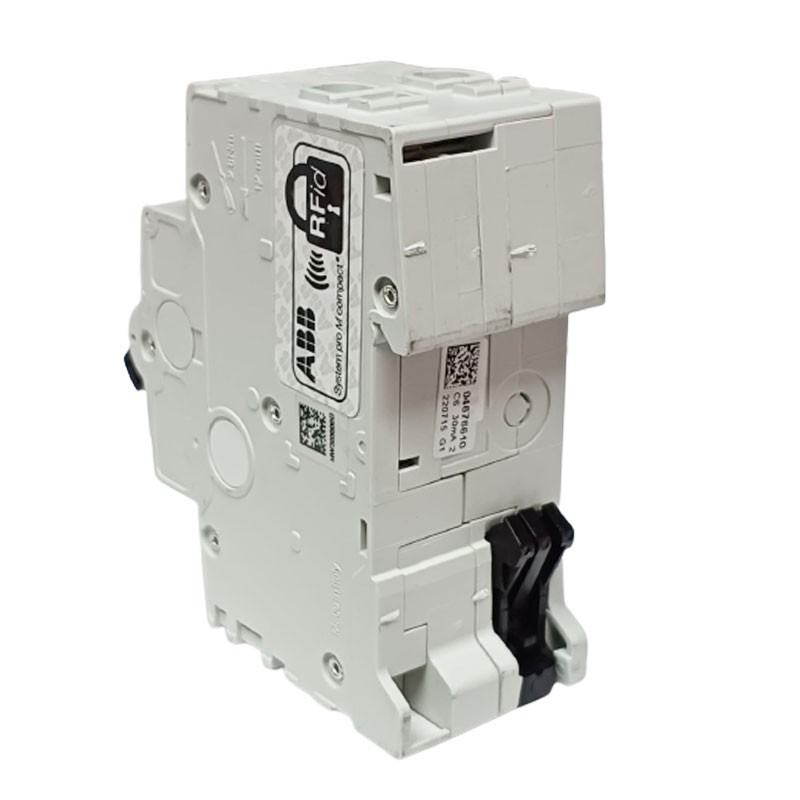

ABB Thermal-magnetic circuit breaker 1P+N 6A 30mA 6KA AC Type 2 Modules DS201C6AC30
ABB DS201C6AC30
8012542896319
ABB Thermal-magnetic circuit breaker with the following features:
- 2 modules
- DIN connection (universal for any switchboard on the market)
- Number of poles: 1P+N
- Rated current: 6 amps
- Rated residual current 30mA
- Rated voltage 230 Vac
- Rated short-circuit capacity: 6kA
- Type of AC differential
ABB Thermal-magnetic circuit breaker 1P+N 6A 30mA 6KA AC Type 2 Modules DS201C6AC30
€121.81
Tax included
€121.81
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 51
: 3
The thermal-magnetic differ ential is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.
The magnetothermal differential switch in the electrical system integrates three different protections:
- the magnetic one for short circuits that can endanger an entire building with the danger of fire
- the thermal one for overloads in the supply of electricity (for example, more than one appliance in operation)
- the differential one proper to the earth leakage circuit breaker, which protects the subject from a current leakage
The AC-type differential circuit breaker the tripping is ensured for suddenly or slowly increasing applied sine-sine differential alternating currents.
Characteristics:
- Rated insulation voltage (Ui): 500 V
- Dielectric proof voltage: 2 kV
- Rated primary impulse withstand voltage: 4 kV
- Type of input voltage: alternating current
- Rated extreme short-circuit capacity (Icu): 10kA
- Rated service short-circuit capacity (Ics): 7.5 kA
- Frequency (f): 50/60 hz
- Rated frequency (f): 50/60 hz
- Power loss: 2.4 W
- Power supply voltage connection: Arbitrary
- Contact position indication: Red ON / Green OFF
- Energy limitation class: 3
- Overvoltage category: III
- Tightening torque: 2.8 Nm
- Type of screw terminal: bidirectional failsafe cylinder lifting terminal
- Cable stripping length: 12mm
- Ambient temperature: -25...55 °C
- Ambient temperature: Operating -25...55 °C
- Ambient air reference temperature:30 °C
- Degree of protection: IP20
- Pollution degree: 2
- Product width: 35 mm
- Product height: 85 mm
- Product depth: 69 mm
- Built-in depth: 69 mm
- Weight: 200 grams
There are no reviews
Data sheet
- Voltage:
- 230VAC
- Modules:
- 2
- Poles:
- 1P+N
- RCD Type:
- AC
- Differential current :
- 0.03A
- Amps:
- 6A
- Circuit Protections:
- RCBO
