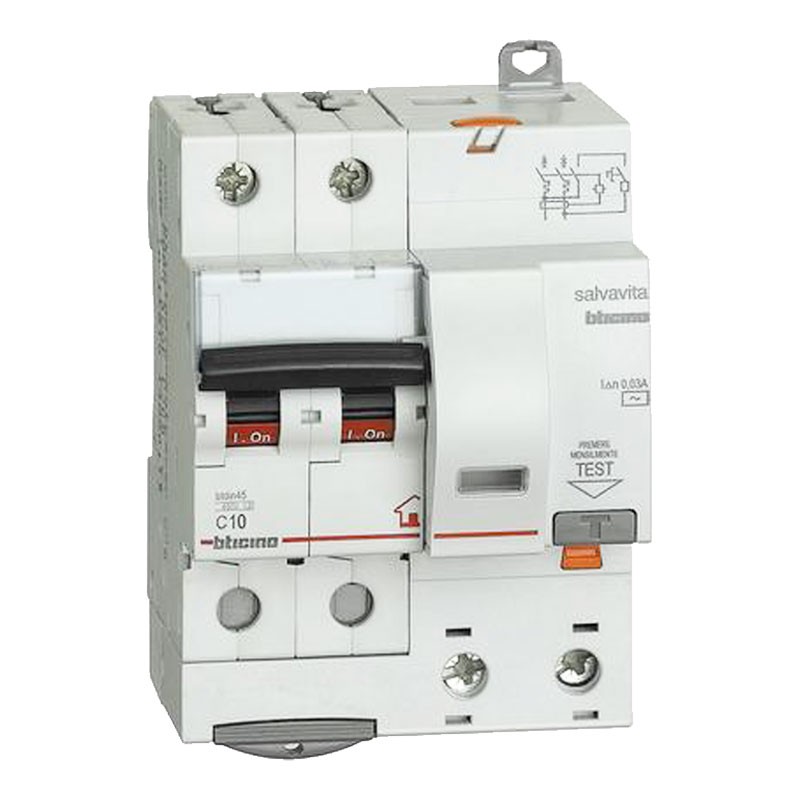

Bticino 10A 2 poles thermal-magnetic circuit breaker 30MA AC 4,5KA 4M GC8230AC10
BTI GC8230AC10
8005543534793
Bticino BTDIN-RS thermal-magnetic circuit breaker:
- Current In 10A
- 2 Poles
- Differential current Idn 0.03A
- Intervention curve C
- AC differential type
- Interrupting capacity Icn 4.5kA
- 4 modules
- Voltage 230 Vac
Bticino 10A 2 poles thermal-magnetic circuit breaker 30MA AC 4,5KA 4M GC8230AC10
€34.93
Tax included
€34.93
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 5
Pay in installments with Klarna
The thermal-magnetic circuit breaker is located next to the circuit breaker and integrates a magnetic protection to a thermal one and in case of need it interrupts the electric current.
The thermal-magnetic circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.
The thermal-magnetic circuit breaker in the electrical system integrates three different protections:
- the magnetic one for short circuits that can put an entire building at risk of fire;
- the thermal one for overloads in the supply of electrical energy (for example more than one household appliance in operation);
- the differential circuit breaker which protects the subject from a current leakage.
The AC differential circuit breaker intervention is ensured for sinusoidal differential alternating currents applied suddenly or slowly increasing (CEI EN 61008-1).
The C curve, tripping threshold from 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic installations.
Characteristics:
- Reference Standard CEI EN 61009-1
- Degree of protection IP20
- Dimensions: Height 83mm - Width 71.2mm - Depth 76mm
- Maximum cable section 25/35mmq
There are no reviews
Data sheet
- Voltage: 230VAC
- Modules: 4
- Poles: 2P
- Curve: C
- Power: 4.5KA
- RCD Type: AC
- Differential current : 0.03A
- Amps: 10A
