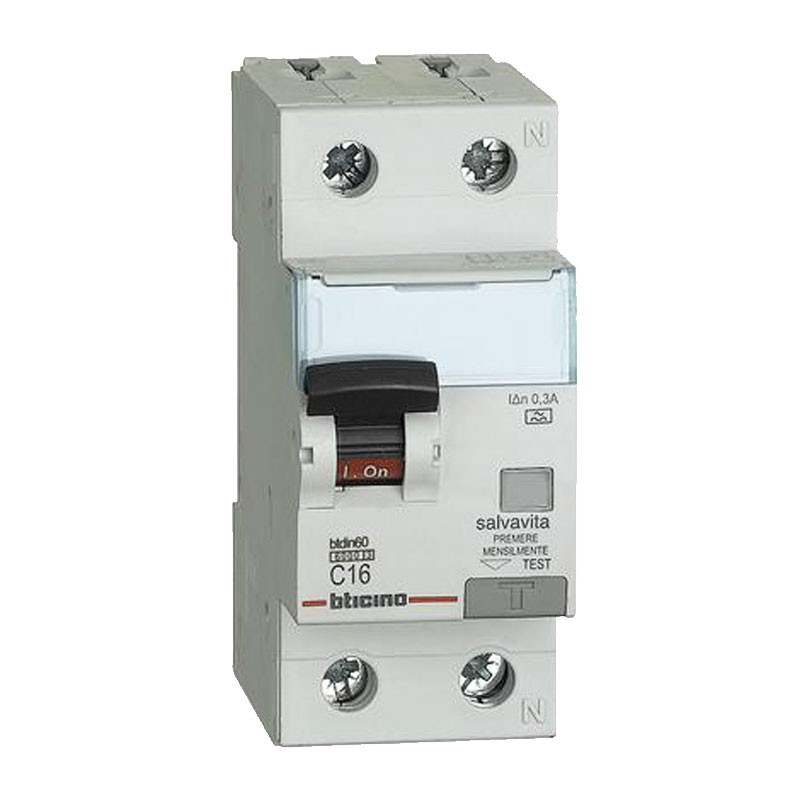

Bticino residual current circuit breaker 16A 1P+N 300MA A 6KA GN8814A16
BTI GN8814A16
8005543458891
Bticino thermal-magnetic circuit breaker:
- Current In 16A
- Poles 1P+N
- 2 modules
- Idn differential current 0.3A
- Differential type A
- Intervention curve C
- Interrupting power Icn 6KA
Bticino residual current circuit breaker 16A 1P+N 300MA A 6KA GN8814A16
€139.54
Tax included
€139.54
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
The thermomagnetic circuit breaker is located next to the circuit breaker and integrates a magnetic protection with a thermal one and, if necessary, interrupts the electric current.
The thermal-magnetic differential is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.
The thermal-magnetic circuit breaker present in the electrical system integrates three different protections
- the magnetic one for short circuits that can put at risk an entire building with the danger of fire
- the thermal one for overloads in the supply of electrical energy (for example more than one household appliance in operation)
- the differential one, typical of the circuit breaker, which protects the subject from a current leakage.
The C curve, intervention threshold from 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic installations.
Characteristics:
- Reference Standard CEI EN 61009-1
- Voltage 230Vac
- Protection degree IP20
- Dimensions: Height 83mm - Width 35.6mm - Depth 76mm
- Maximum section of cable 25/35mmq.
There are no reviews
Data sheet
- Voltage: 230VAC
- Modules: 2
- Poles: 1P+N
- Curve: C
- Power: 6KA
- RCD Type: A
- Differential current : 0.3A
- Amps: 16A
