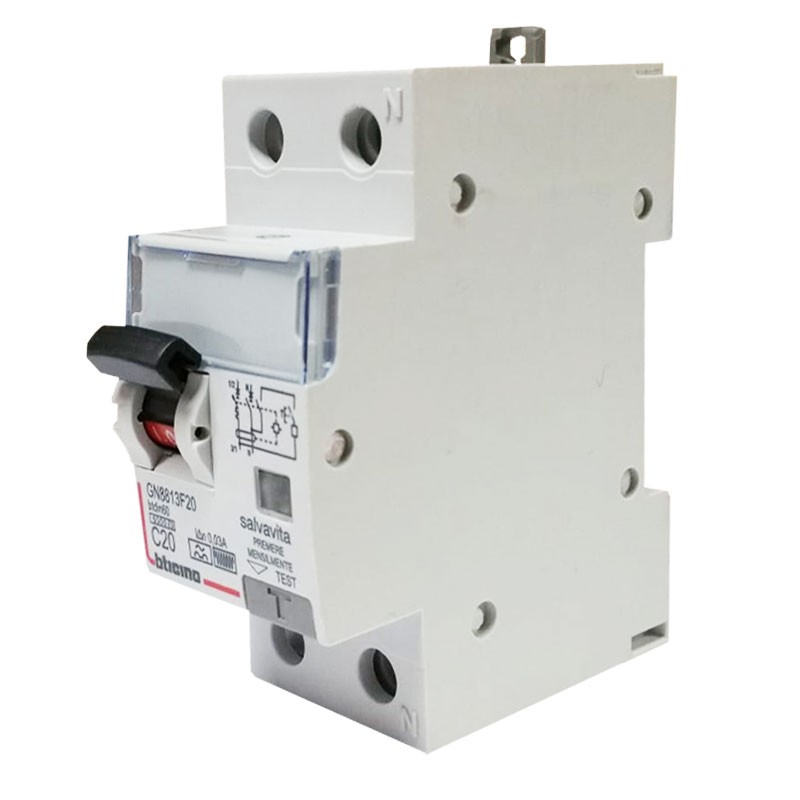

Bticino 20A 1P+N 30mA F 6KA 2M Differential Circuit Breaker GN8813F20
BTI GN8813F20
8005543608920
Bticino Differential Magnetothermal Circuit Breaker:
- Current In 20A
- Poles 1P+N
- Idn differential current 0.03A
- Differential type F
- Interrupting capacity Icn 6kA
- 2 Modules
- Tripping curve C
Bticino 20A 1P+N 30mA F 6KA 2M Differential Circuit Breaker GN8813F20
€201.06
Tax included
€201.06
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
The thermal-magnetic circuit breaker is located next to the circuit breaker and integrates a magnetic protection to a thermal one, and in case of need it interrupts the electric current.
The thermal-magnetic circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal features.
The magneto-thermal differential switch in the electrical system integrates three different protections:
- the magnetic one for short circuits that can endanger an entire building with the danger of fire
- the thermal one for overloads in the supply of electricity (for example, more than one appliance in operation
- the differential one proper to the circuit breaker that protects the subject from a power leakage.
The C curve, trip threshold of 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. And widely used in domestic systems.
F-type lifesavers introduced by the recent product standard CEI EN 62423, provide effective protection against indirect contacts in the presence of loads equipped with single-phase frequency converters.
Features:
- Reference Standard CEI EN 61009-1
- Voltage 230Vac
- Degree of protection IP20
- Height 83mm
- Width 35.6mm
- Depth 76mm
- Maximum cable cross section 25/35mmq
Data sheet
- Voltage: 230VAC
- Modules: 2
- Poles: 1P+N
- Curve: C
- Power: 6KA
- RCD Type: F
- Differential current : 0.03A
- Amps: 20A
- Circuit Protections: RCBO
