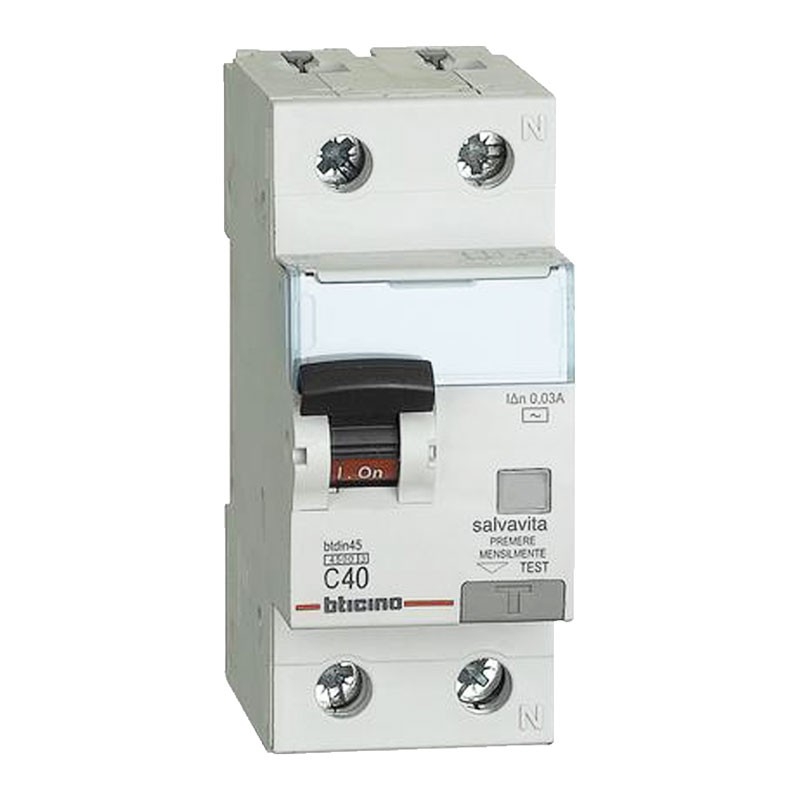

Bticino residual current circuit breaker 40A 1P+N 30MA AC 4,5KA GA8813AC40
BTI GA8813AC40
8005543458341
Bticino thermal-magnetic circuit breaker:
- Current In 40A
- Poles 1P+N
- Idn differential current 0.03A
- AC differential type
- Intervention curve C
- Interrupting capacity Icn 4.5kA
- 2 Modules
Bticino residual current circuit breaker 40A 1P+N 30MA AC 4,5KA GA8813AC40
€68.85
Tax included
€68.85
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
: 4
Pay in installments with Klarna
The thermomagnetic circuit breaker is located next to the circuit breaker and integrates a magnetic protection with a thermal one and, if necessary, interrupts the electric current.
The thermal-magnetic circuit breakeris, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.
The thermal-magnetic circuit breaker present in the electrical system integrates three different protections
- the magnetic one for short circuits that can put at risk an entire building with the danger of fire
- the thermal one for overloads in the supply of electrical energy (for example more than one household appliance in operation)
- the differential one, typical of the lifesaving device, which protects the subject from a current leakage.
Characteristics:
- Reference standard CEI EN 61009-1
- Voltage 230Vac
- Degree of protection IP20
- Dimensions: Height 83mm - Width 35.6mm - Depth 76mm
- Maximum cable section 25/35mmq
Come detto il prodotto è molto valido un prezzo onesto
Prodotto regolarmente funzionante. Per ora nessun problema
Data sheet
- Voltage: 230VAC
- Modules: 2
- Poles: 1P+N
- Curve: C
- Power: 4.5KA
- RCD Type: AC
- Differential current : 0.03A
- Amps: 40A
