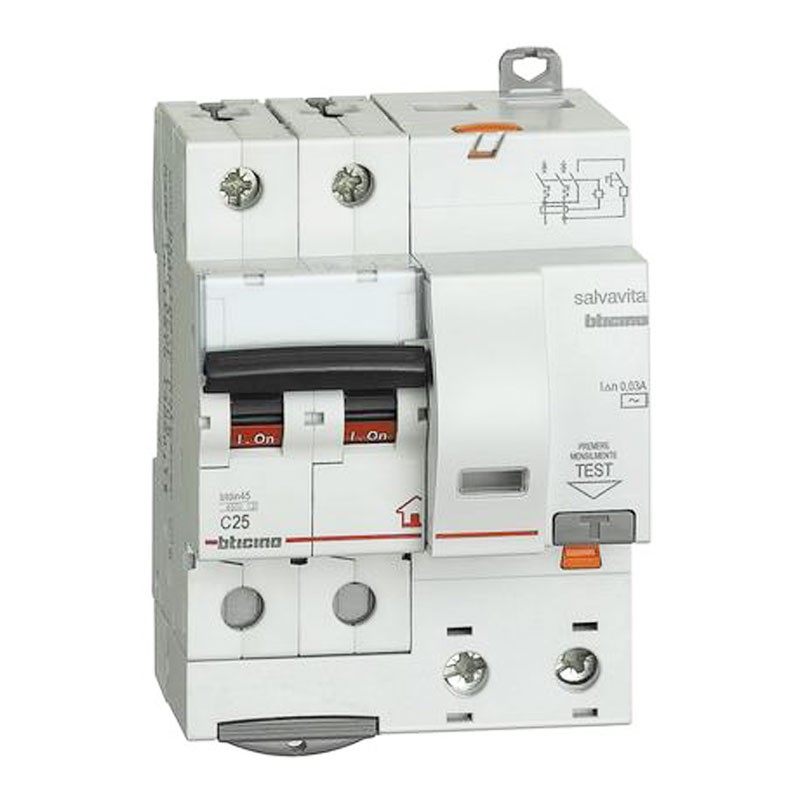

Bticino differential thermomagnetic 25A 30mA AC 4.5KA 2 poles 4 modules GC8230AC25
BTI GC8230AC25
8005543534823
Bticino differential thermomagnetic:
- Current In 25A
- Differential current Idn 0.03A
- Interrupting power Icn 4.5kA
- Intervention curve C
- AC differential type
- 4 modules
- Poles 2P
Bticino differential thermomagnetic 25A 30mA AC 4.5KA 2 poles 4 modules GC8230AC25
€34.93
Tax included
€34.93
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12
: 2
Pay in installments with Klarna
A circuit breaker is a safety device capable of automatically interrupting (i.e., without external intervention) the flow of electrical current in an electrical circuit in the event of an overcurrent.
TheC curve, intervention threshold from 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. And widely used in domestic systems.
Characteristics:
- Reference standard CEI EN 61009-1
- Voltage 230 Vac
- Degree of protection IP20
- Dimensions: Height 83 mm - Width 71.2 mm - Depth 76 mm
- Maximum cable section 25/35mmq
- Series IT Btdin
tutto ok , spedizione e prodotto,al telefono professionale
Ottimo prodotto.
Venditore serio, spedizione veloce come previsto
È un magnetotermico differenziale che a me serviva in sostituzione di uno vecchio e che era in grado di proteggere anche l'impianto elettrico.
Data sheet
- Modules: 4
- Poles: 2P
- Curve: C
- Power: 4.5KA
- RCD Type: AC
- Differential current : 0.03A
- Amps: 25A
