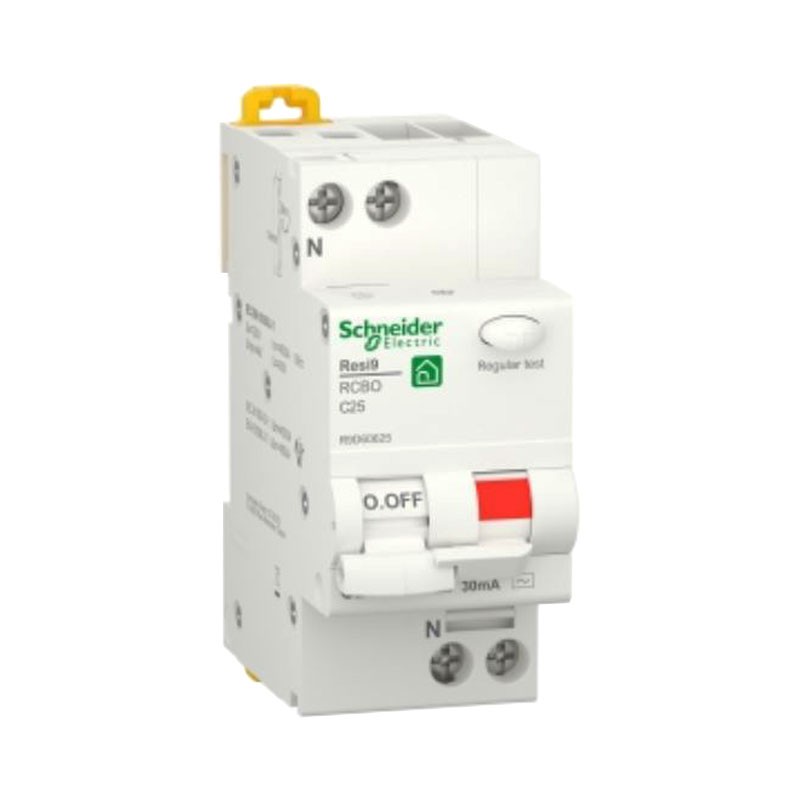

Schneider residual current circuit breaker 25A 30MA 1P+N AC 4,5KA 2 modules R9D60625
SNR R9D60625
3606481928825
Schneider differential magneto-thermal switch:
- Rated current In 25A
- Differential sensitivity 30MA
- Poles 1P+N
- AC differential protection type
- Breaking capacity 4,5KA
- 2 Modules
Schneider residual current circuit breaker 25A 30MA 1P+N AC 4,5KA 2 modules R9D60625
€29.79
Tax included
€29.79
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 57
: 88
Further Schneider circuit breaker combinations:
Features:
- Type of product or component Residual current circuit breaker with overcurrent protection (RCBO)
- Number of Poles Acti9 VigiARC iC60
- Neutral position Left
- Number of protected poles 1
- Type of network "AC
- Timing instantaneous differential protection
- Device position in the system Starting point
- Mains frequency "50 Hz
- Nominal operating voltage
- 230 V "AC" "50 Hz" operating voltage
- Magnetic trip limit 5...10 x In
- Voltage-independent" differential technology
- Rated insulation voltage
- Ui 400 V
- Rated impulse withstand voltage
- Uimp 4 kV
- peak current 250 A
- contact position signaling Yes
- Control type Lever
- Local signaling ON/OFF indication
- Mounting mode Mounting bracket
- Mounting bracket DIN rail
- 9 mm steps 4
- height 82 mm
- Width 36 mm
- depth 70.5 mm
- product weight 186 g
- White color
- Mechanical life 20000 cycles
- Electrical life 7500 cycles
Beh la marca non lascia dubbi, di ottima fattura e funzionalità
très bon suivi et conforme a ma demande
Todo correcto ,envío rápido y buen precio
Produits bien emballés, non encore testés
Bonjour, Matériel de qualité Schneider à un prix très correcte, je recommande ce site pour l'achat de ce type de disjoncteur différentiel 25A 30mA Ph N.
Data sheet
- Modules:
- 2
- Poles:
- 1P+N
- Power:
- 4.5KA
- RCD Type:
- AC
- Amps:
- 25A
