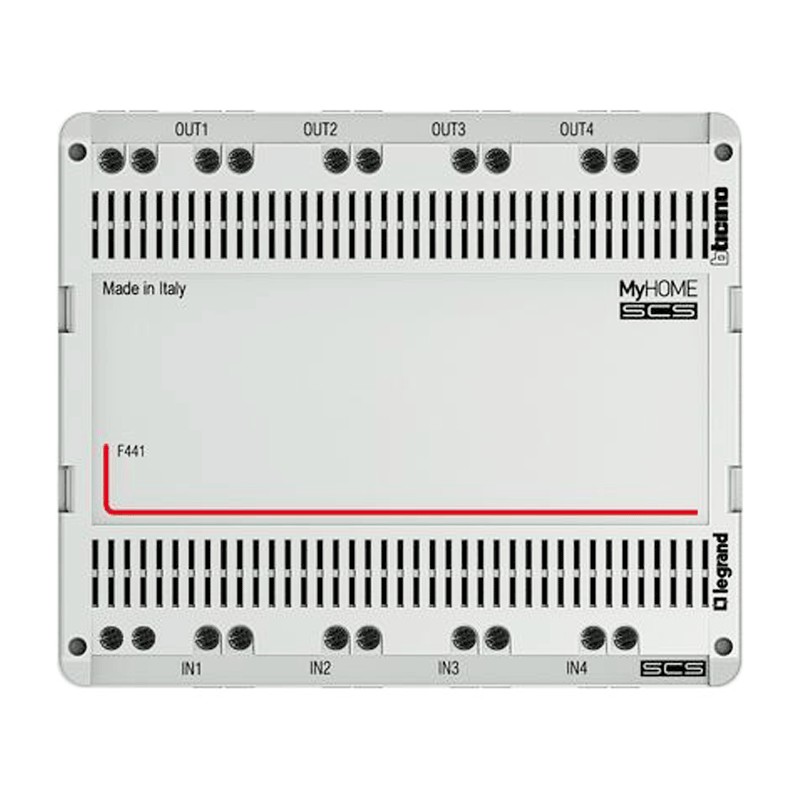

Bticino 6 DIN F441 Modular Audio Video Node
BTI F441
8012199684406
Bticino audio/video node, with the following features:
- In 6 DIN modular housing prepared with 4 input terminals and 4 output terminals
- Allows connection of up to 4 source devices (door units or cameras) on input and up to 4 2-wire video risers on output.
- The device must be combined with system power supply unit 346000
- It must be used as an alternative to the video adapter 346830
- Power supply from BUS SCS 18-27 Vdc
- Absorption from BUS 20 mA
- Power dissipation 0.5W
- Operating temperature 0 - 40 °C
Bticino 6 DIN F441 Modular Audio Video Node
€246.44
Tax included
€246.44
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12
: 1
The audio/video node is a mixing device that allows you to distribute up to 4 sound sources or 2-WIRE audio video risers. The 4 outputs necessarily all have the same signal coming from the input selected among the 4 available.
Features:
- Bticino series
- In a 6 DIN modular housing, prepared with 4 input terminals and 4 output terminals.
- Allows to connect up to 4 source devices (door units or cameras) in input and up to 4 2-wire video risers in output
- The device must be combined with system power supply unit 346000
- It must be used as an alternative to the video adapter 346830
- Power supply from BUS SCS 18-27 Vdc
- Absorption from BUS 20 mA
- Power dissipation 0.5W
- Operating temperature 0 - 40 °C
There are no reviews
Data sheet
- Type:
- Audio video modules
