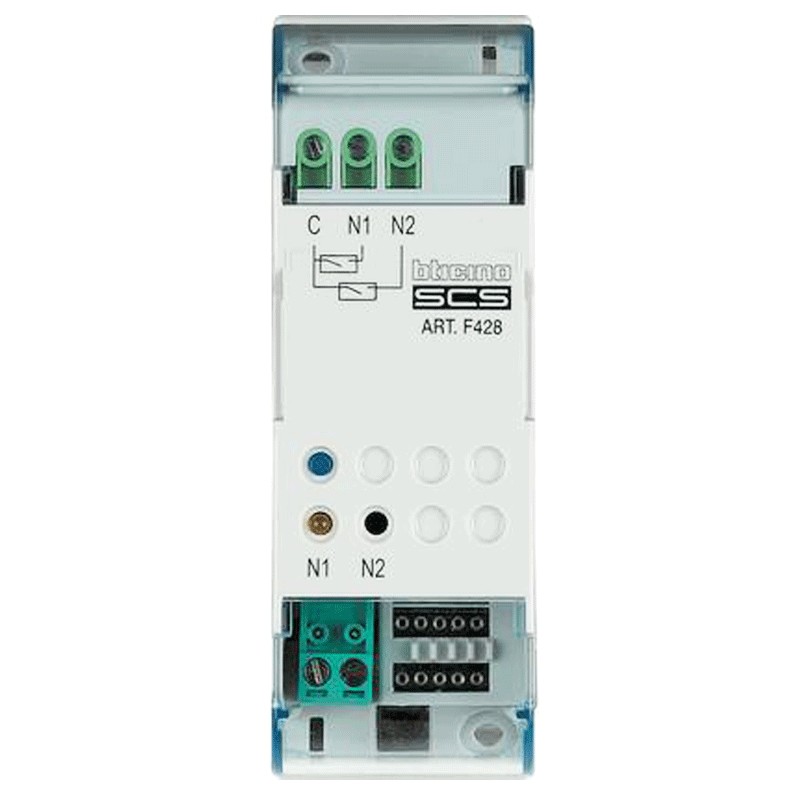

Bticino control interface for 2 independent contacts F428
BTI F428
8012199837222
Bticino control interface, with the following characteristics:
- With 2 independent contacts for the control of 2 actuators for single function loads or for the control of 1 actuator for dual function loads (roller shutters)
- Accepts as input two switches or traditional push-buttons with NO and NC contact or one traditional diverter or interlocked push-buttons
- 2 DIN modules
- Voltage 27 Vdc
- Current In 0.009A
- Absorption 9 mA
- Power dissipation with maximum load 0.2W
Bticino control interface for 2 independent contacts F428
€56.86
Tax included
€56.86
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 10
Pay in installments with Klarna
This device makes it possible to integrate traditional control devices (switch, button, etc.) into advanced systems with BUS operating logic. It is therefore possible to extend the use of the Lighting Management system in environments where traditional systems are already present or in historical and valuable environments for which the complete or partial renovation of the electrical system involves costly masonry work. The old but valuable switch with its wiring no longer compliant with standards, can therefore continue to perform its service because the connection to the load to be controlled is made in complete safety by means of the connection to the respective interface with voltage-free contact. The N1 contact pilots the light point PL1, the N2 contact pilots the light point PL2.
The following can be connected
- Two traditional switches or pushbuttons of type NO (normally open) and NC (normally closed);
- A diverter switch
The device is equipped with 2 LEDs to signal contact closure, programming/ cancellation and the status of the controlled devices.
Features:
- Bticino series
- Power supply from BUS SCS 27 Vdc
- Operating power supply with BUS SCS 18 - 27 Vdc
- Absorption 9 mA
- Dissipated power with maximum load: 0.2 W
Data sheet
- Type: Interfaces
