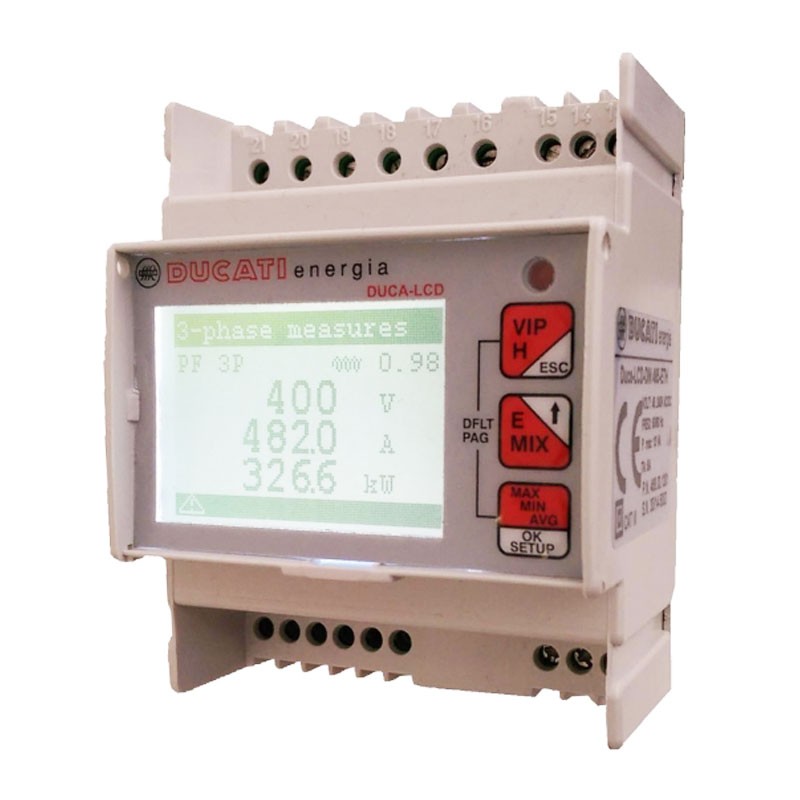

Ducati DUCA Network analyzer LCD 485 4 modules 468001300
DUC 468001300
Ducati DUCA Network analyzer LCD 485 4 modules RS-485 interface: ASCII-Ducati and Modbus-RTU protocols selectable by the user.
Ducati DUCA Network analyzer LCD 485 4 modules 468001300
€219.76
Tax included
€219.76
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 6
: 1
Features:
- 4 DIN modules model
- Graphic display (128x80) backlit with white backlight
- Frontal red LED for signaling energy pulses or alarms
- Simple user interface thanks to 3 menu navigation keys with quick access
- Backlight intensity setting
- Possibility to set up 4 measurements simultaneously displayed
- Possibility to set the mono-measurement visualization mode to have only 1 size displayed in large characters for a better visibility from far away
- 218 measures shown on the display on more than one page
- Default page setting
- Measurement of harmonics of voltages and currents up to 31st
- Voltage and current time graphs (in real time)
- Max-demand measurement
- Accuracy class = 1
- Accuracy of primary measurements = 0.5%
- High accuracy due to over-sampling techniques and automatic calibration processes
- Current measurements via internal shunts
- Automatic current direction recognition on the CT for easy installation
- Self-diagnostic functionality for fast insertion control
- Easy setting of CT/VT transformation ratios
- User selectable cogeneration mode (2 or 4 quadrants) with separate meters and energy balance
- Partial energy indication for examining industrial processing cycles
- Energy conversion into () and CO2 production (also in cogeneration mode)
- 2 isolated pulse outputs selectable as energy pulses or alarm outputs on 35 parameters
- 2 isolated pulse inputs for energy reading from external meters in different configurations
- Particularly suitable for easy remote reading of external meters
- User selectable configuration mode according to the type of insertion (single-phase, three-phase, balanced three-phase or general)
- User password protection
- User-selectable interface language
- Free-running timer for instrument life time and count-down timer for system operation time (programmable counting threshold)
There are no reviews
Data sheet
- Type:
- Network analysers
