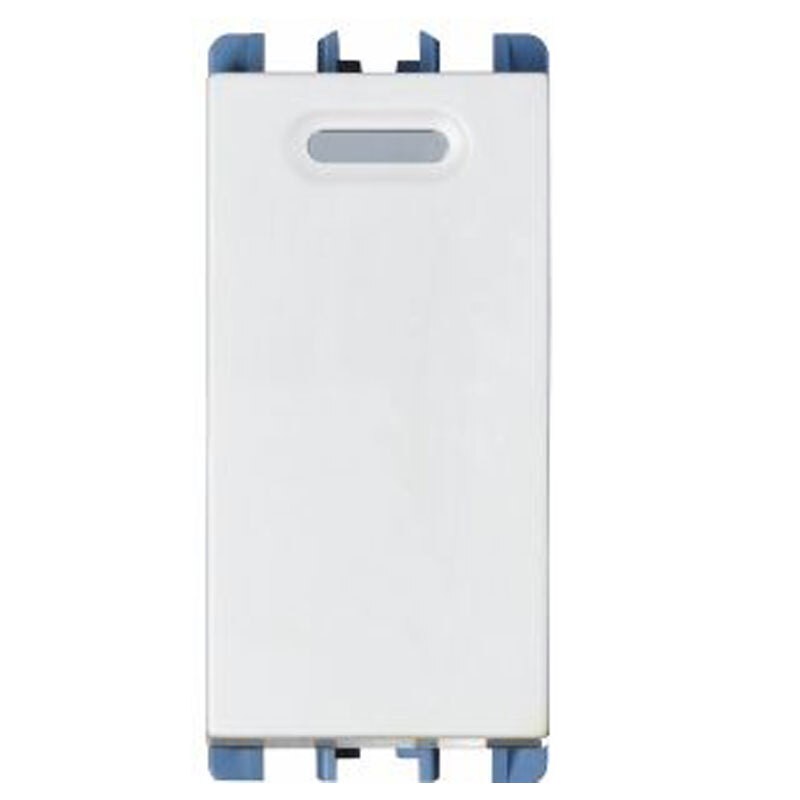

Urmet Simon Nea series MTR1300EBRP electronic relay module 5454811

Simon Urmet
UTD 5454811 3760054548114

Electronic relay module Urmet timed step MTR1300EBRP, Radio Power system, on push button series NEA Simon-Urmet, 1300W. It is realized on fruit with button on civil series NEA.



It allows the control of lights and other automations including:

  • Electric locks
  • Irrigation system
  • Motorized gates
  • Suction fans
Request info about this product

Urmet Simon Nea series MTR1300EBRP electronic relay module 5454811

€34.19 Tax included
€34.19

Urmet Simon Nea series MTR1300EBRP electronic relay module 5454811

€34.19
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 8
Altre disponibilità dal produttore
qty

Urmet Simon Nea series MTR1300EBRP electronic relay module 5454811

€34.19

Buy it within and receive it from Thursday, 25 September
Two-year warranty
Secure Payment
Easy return within 14 days
Purchase with tax breaks

Frequently bought together

Thanks to the integration between Simon Urmet and Yokis technologies, the new range of Smart inserts of the NEA line was born, through which it is possible to enjoy more features, preserving the aesthetic harmony with the adopted civil series.



It can be connected to other models of Yokis radio receiver and can be controlled both in wired mode, by electromechanical push-button (code 10108xx), and by Yokis radio transmitters, to realize single, group and centralized commands.



The load can be controlled locally or, if the Yokis Hub is present, also remotely through the YnO App.



It provides the following functions

  • Timing: with customizable duration, from 2 seconds to 4 hours
  • Extended duration: increases up to 12 hours the duration of ignition
  • Pre-announcement of shutdown: flashing of the light at the end of the timing
  • Current status memory in case of power failure
  • Instantaneous / impulsive / flashing mode.



Equipped with a blue LED for identification in the dark and a red LED for signaling during configuration.



Supplied with white key cover mounted and key cover in anthracite finish inside the package.




Features:

  • Mains voltage: 230V ~ (+10% - 15%) - 50Hz
  • Power: on resistive load: 8A 250VAC, max. 1800VA 8A - other loads: Max. 500VA
  • Frequency range: 2,4 Ghz
  • Maximum Radio Transmission Power: 10mW
  • Ambient temperature -20°C + 50°C
  • Relative humidity from 0 to 99%.
  • Dimensions: 1 module

There are no reviews

Data sheet

Modules:
1
Smart System:
Connected Relays
