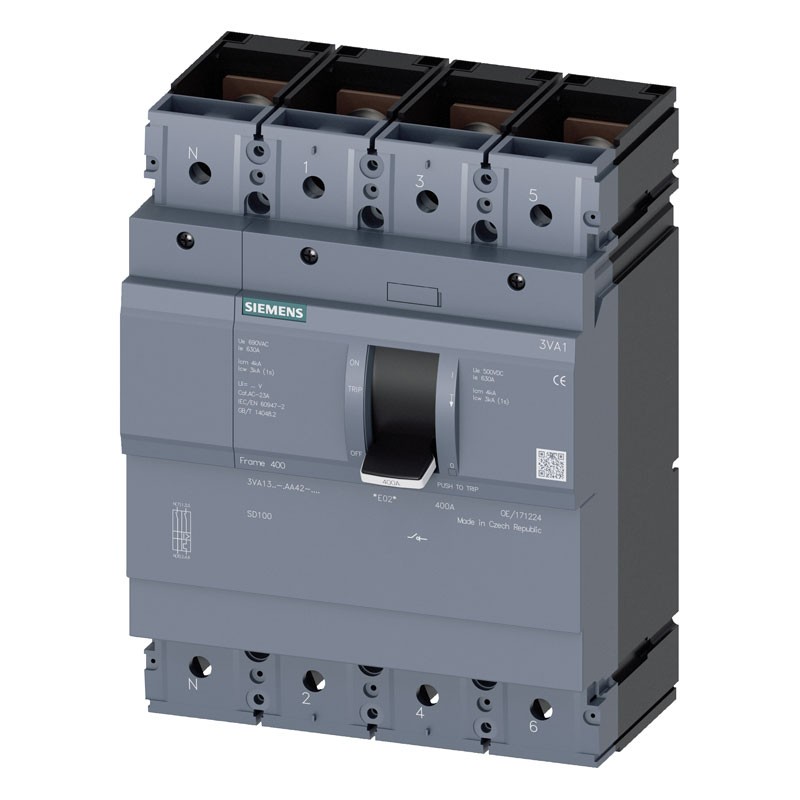

Siemens Automatic Disconnect Switch 400A 3VA 4 Poles 3VA13401AA0
SIE 3VA13401AA420AA0
4042948800416
Siemens Sentron 400A 3VA 4 Poles IEC Frame 400 automatic under-load disconnector, without overload protection without short-circuit protection flat screw connections.
Siemens Automatic Disconnect Switch 400A 3VA 4 Poles 3VA13401AA0
€732.92
Tax included
€732.92
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 16
Pay in installments with Klarna
Features:
- Rated insulation voltage Ui 800 V
- Max. rated operational voltage Ue at AC 690 V
- Operating voltage / at DC / nominal value 600 V
- Power loss
- W / max. 77 W
- Mechanical service life (switching cycles) / typ. 15 000
- Product function / communication function No.
- Net weight 6 812 g
Electricity:
- Rated permanent current Iu 400 A
- Permissible short-time withstand current (Icw) limited to 1 s 6 kA
- Operating current: at 40 °C 400 A - at 45 °C 400 A - at 50 °C 400 A - at 55 °C 400 A - at 60 °C 400 A - at 65 °C 400 A - at 70 °C 400 A
- Dimensions: Height 248 mm - Width 184 mm - depth 110 mm
- arrangement of electrical connection / for main circuit front connections
- arrangement of electrical connection / for main circuit busbar connection
Environmental conditions
- degree of protection IP / front side IP40
- Ambient temperature: during operation / min. -25 °C - during operation / max. 70 °C - during storage / min. -40 °C - during storage / max. 80 °C.
There are no reviews
Data sheet
- Poles: 4P
- Amps: 400A
- Circuit Protections: Disconnectors
