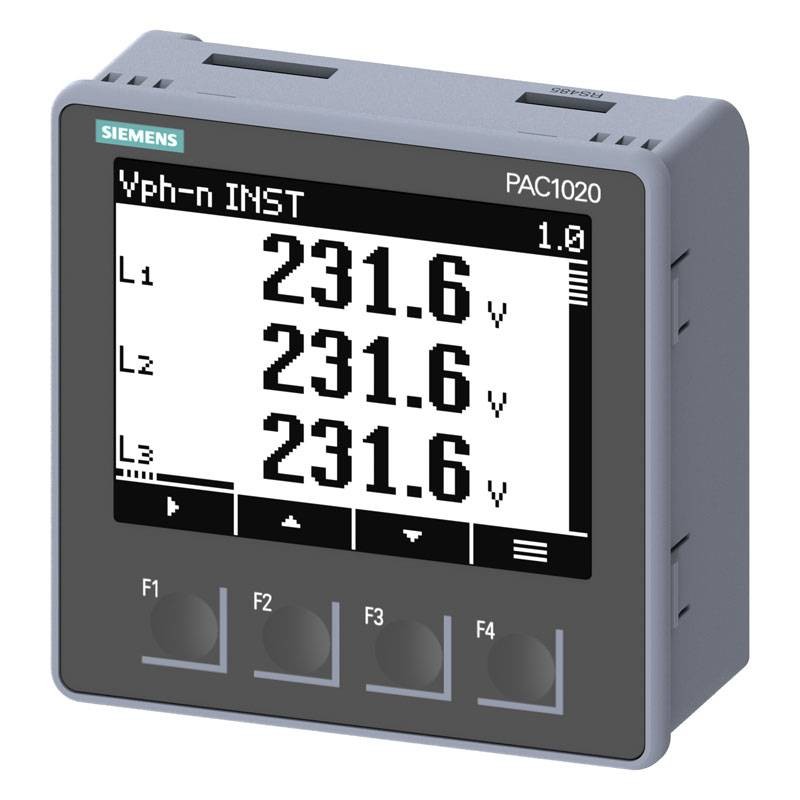

Siemens Sentron PAC1020 230V AC/DC power control module 7KM10200BA011DA0
SIE 7KM10200BA011DA0
4001869576800
Siemens Sentron PAC1020 230V AC/DC power control module:
- Panel mount type
- For measurement of electricity, values
- Protocol: Modbus RTU
- With graphic display
- Un max: 400/230V 45-65Hz
- Input current 5A AC
- Power supply 85V - 276V AC
- Terminal blocks
Siemens Sentron PAC1020 230V AC/DC power control module 7KM10200BA011DA0
€275.45
Tax included
€275.45
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
: 4
Pay in installments with Klarna
Version:
- SENTRON product brand
- Product name multifunction measuring instrument
- Basic product execution
- Type of measurement value acquisition without spaces
- Wide voltage power supply execution
Features:
- Width of fenestration 92 mm
- Height of the fenestration 92 mm
- Construction size of the multimeter construction size 96
- Mode of operation for measuring value detection automatic detection of mains frequency Yes
- Sinusoidal or distorted voltage curve shape
- Measurable mains frequency / initial value 45 Hz
- Measurable mains frequency / final value 65 Hz
Supply voltage:
- Supply voltage / 1 / with AC min rated value 100 V max rated value 250 V
- Supply voltage / 1 / with DC min. rated value 100 V - max. rated value 250 V
- type of voltage / of the AC/DC supply voltage
- measurement category / for supply voltage CATIII
- apparent power consumption / without extension module / typ. 4 VA
- degree of protection front side IP40 - rear side IP20
- equipment protection class / in the state of installation
- operating current / with AC / rated value 10 A
- Measurable current 1 / with AC / nominal value 1 A
- 2 / with AC / rated value 5 A
- suitability for use flush mounting in fixed control panels in enclosed spaces
- suitability for use / reactive power meter Si
- time grid settable / min. 10 ms
Product function:
- reactive power measurement Si
- frequency measurement Yes
- voltage measurement Si
- current measurement Si
- active power measurement Yes
Display and operation:
- LCD display execution
- number of keys 4
- color / of the indicator background white
- national language / in the display display / es, en, cn, pt is supported
- backlight illumination intensity on the display adjustable Yes
- display contrast adjustable Yes
- horizontal screen resolution 128
- vertical screen resolution 96
Inputs Outputs:
- input voltage / on digital input initial value for signal recognition <1> 11 V - with DC / nominal value 24 V - final value for signal recognition<0> 11 V
- input voltage / on the digital input / with DC / max. 30 V
- input current / on the digital input - for signal <1> 7 mA
- operating voltage / as output voltage / with DC / max. permissible 30 V
- number of digital inputs 1
- execution of electronic switching input, passive
- execution of electrical connection / on digital inputs screw terminals
- operating condition for digital inputs / external supply voltage
- execution of electrical connection / on digital outputs screw terminals
- execution of digital outputs switching function or pulse output
- number of digital outputs 1
- execution of electronic switching output, passive
- output current on digital outputs / with DC / limited to 100 ms / max. 130 mA - on digital outputs / with DC / max. 50 mA
- switching frequency / on the digital output / max. 17 Hz
Dimensions:
- height 96 mm
- height / of display 56 mm
- width 96 mm
- width / of display 74 mm
- depth 42 mm
- recessed depth 42 mm
There are no reviews
Data sheet
- Type: Control Modules
- Amps: 5A
