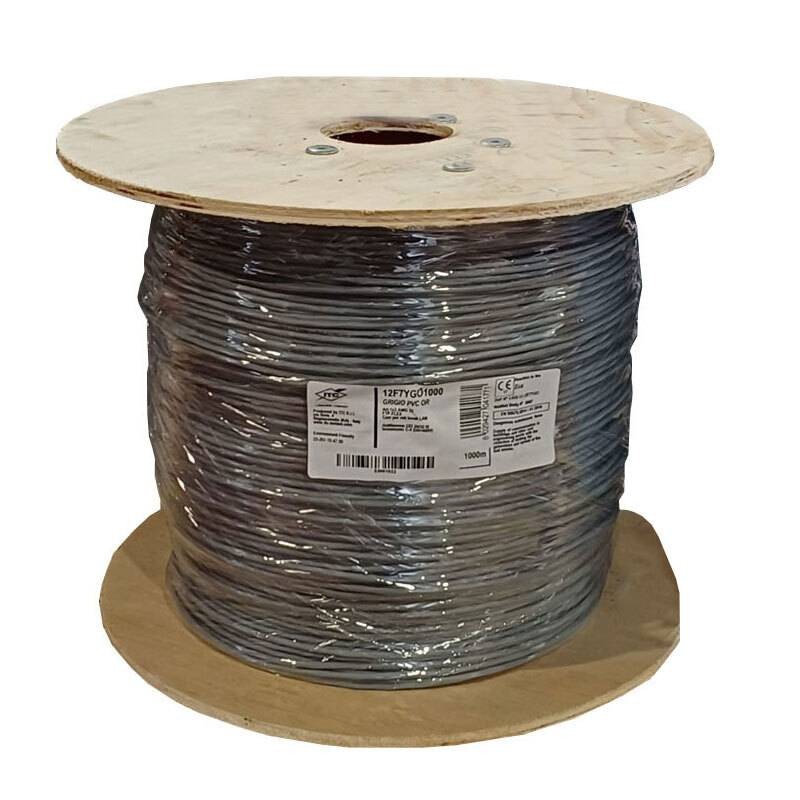

ITC Serial Cable 1x2 AWG22 FLEX FTP PVC gray for canbus and modbus 12F7YGO1000
ITC 12F7YGO1000
Serial bus cable for electronics and automation 1 X 2 X AWG 22 FLEX FTP INTERCONN with the following characteristics:
- Flameproof PVC outer sheath Grey Olioresistant
- Characteristic inductance 0.65 mH/Km
- Rated voltage 300V
- Operating temperature range -20/+80 degrees
- Sheath Insulation C-4 (U0=400V)
- Test voltage 2.5 KVac
- Minimum bending radius 8 x O.D
The selling price is intended per meter.
This product doesn t benefit from the right of withdrawal Cable cut and therefore non-refundable
ITC Serial Cable 1x2 AWG22 FLEX FTP PVC gray for canbus and modbus 12F7YGO1000
€0.95
Tax included
€0.95
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1228
: 1173
Pay in installments with Klarna
Two-year warranty
Balanced cable for Profi, Field, Lon, Can, Mod, Inter - BUS networks.
Support major transmission protocols such as EIA RS-232, EIA RS-422, EIA RS-485.
Suitable for cohabitation with 450/750V and 0.6/1kV energy cables.
Characteristics:
- Conductor 1: CuSn 7x0.25mm
- Conductor 1 (Resistance): 50 Ohm/Km
- Conductor color: Black/Neutral
- Foil 1 AL/Pet 100 %
- Outer Sheath (Diameter): 4.3mm
- Characteristic Impedance: 64 ± 15 Ohm
- Mutual or coaxial cable capacitance: MUTUA 70 pF/m
- Characteristic inductance: 0.65 mH/Km
- CuSn continuity wire: 7x0.20 mm
There are no reviews
