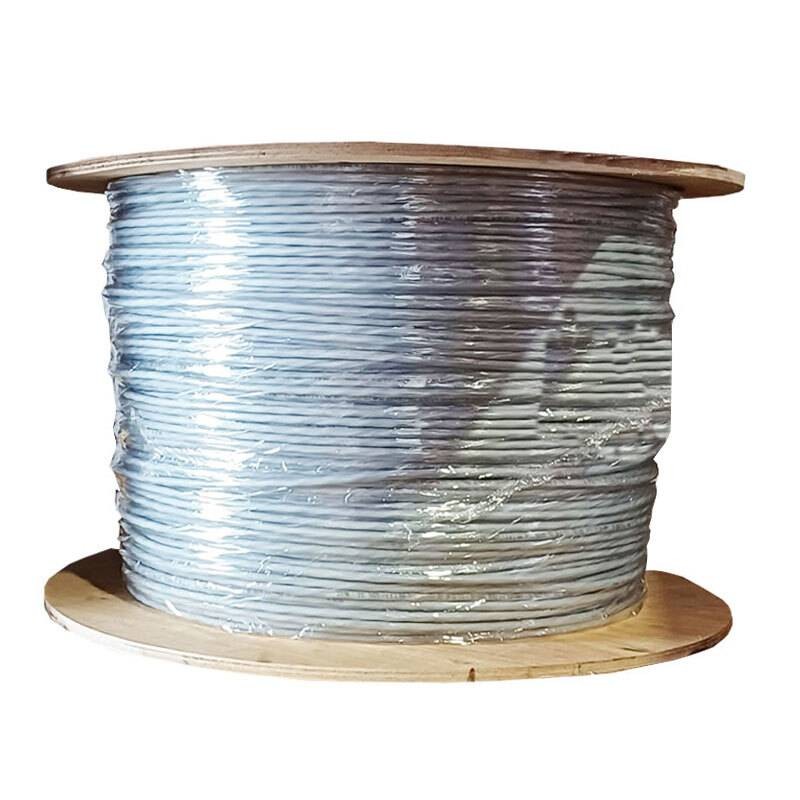

ITC serial cable 2x2 AWG24 FLEX S FTP gray for canbus and modbus 24S7YGR1000
ITC 24S7YGR1000
Serial bus cable for canbus and modbus applications 2 X 2 XAWG 24 FLEX S(FTP) RS485 MODBUS with the following features:
- Flameproof PVC outer sheath Grey
- Shielding efficiency (30-1000 MHz): > 85 dB
- Operating temperature range -20 to +80 degrees
- Sheath insulation C-4 (U0=400V)
- Test voltage 2.5 KVac
- Minimum bending radius 10 x O.D
The selling price is intended per meter.
This product doesn t benefit from the right of withdrawal Cable cut and therefore non-refundable
ITC serial cable 2x2 AWG24 FLEX S FTP gray for canbus and modbus 24S7YGR1000
€2.48
Tax included
€2.48
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 5
: 166
Pay in installments with Klarna
Two-year warranty
They support the main transmission protocols such as EIA RS - 485. Suitable for cohabitation with 450/750V and 0.6/1kV energy cables.
Features:
- Conductor 1: CuSn 7x0.20mm
- Conductor 1 (Resistance): 79 Ohm/Km
- Foil 1 AL/Pet 100 %
- Outer Sheath (Diameter): 7.2mm
- Characteristic impedance: 120 ± 15 Ohm
- Mutual or coaxial cable capacitance: MUTUA 43 pF/m
- Propagation rate 68%.
