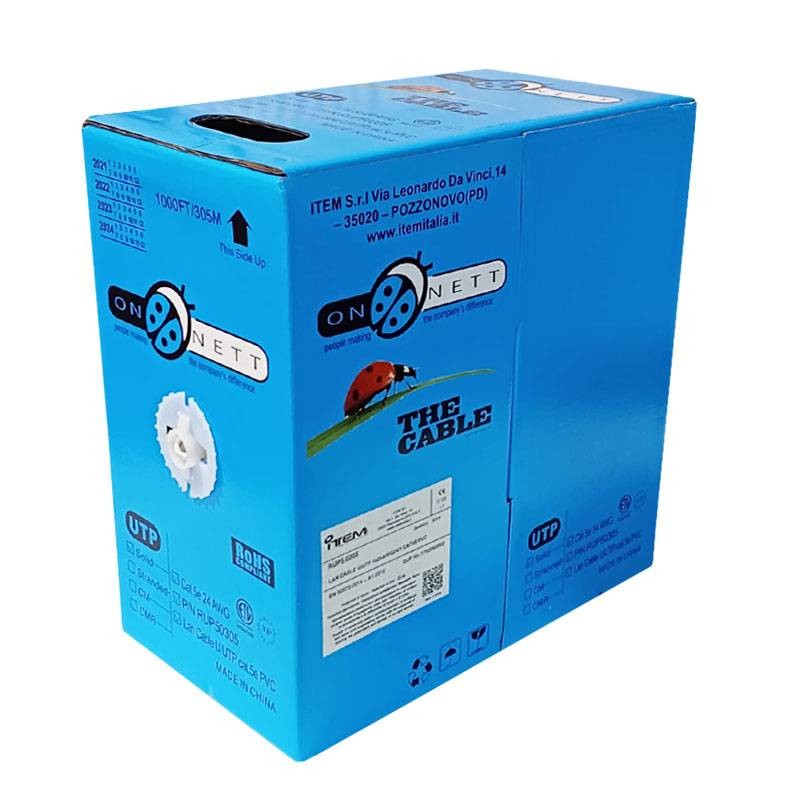

Item CAT6 U/UTP LSZH CPR ECA Data Cable 305 meter reel RUL60305
IT2 RUL60305
Item CAT6 U/UTP LSZH CPR ECA Data Cable:
- 4 COUPLE formation AWG 23/1
- U/UTP Version
- Without shielding
- LSZH sheathing
- Sheath Diameter 6.0
- 305-meter box
- Euroclass Eca
Item CAT6 U/UTP LSZH CPR ECA Data Cable 305 meter reel RUL60305
€0.67
Tax included
€0.67
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 53120
Pay in installments with Klarna
Applications:
- ETHERNET, TP-DDI, 1000BASE TX, 1000BASET, 10GBASET, ATM(TP)
Reference Specifications:
- CEI 20-37-4-5, CEI 20-52, CEI 20-35 (IEC 60322-1), CEIEN 50267-2-1, CEIEN 50267-2-2, EN 50173, EN 50288-6/1, EN 55022, EN 50081, EN 50082 IEC61034/2, IEC 60754-1-1, IEC60754-2, IEC61156, TIA/EIA-568-A5/B2, ISO/IEC-11801, ISO/IEC TR24750, ANSI/TIA/EIA TSB 155
Directives:
- RoHS 2002/95/EC
Inner conductor:
- Solid red copper - nominal cross section AWG 23/1 or 0.55 mm²
Individual conductor insulation:
- Polyolefin diameter 1.03 mm
Outer Sheath:
- Low Smoke Zero Alogen (LSZH)
Characteristics:
- Characteristic impedance: 100 ± 15
- Nominal mute capacitance: 48 pF/m
- Max. loop resistance: 16.8 ?//100 m at 20 °C
- Nominal propagation rate: 68%
- Operating voltage: 80 V max.
- Insulation resistance: 5 G? x km
- Operating temperature: -15 °C ÷ +70 °C
- Installation temperature: -5 °C ÷ +50 °C
- Minimum bending radius: 48 mm
- Maximum tensile load: 15 kg.
- Cable weight (PVC-LSØH): 40 Kg./Km
- Cable weight (PE): 42 Kg./Km
