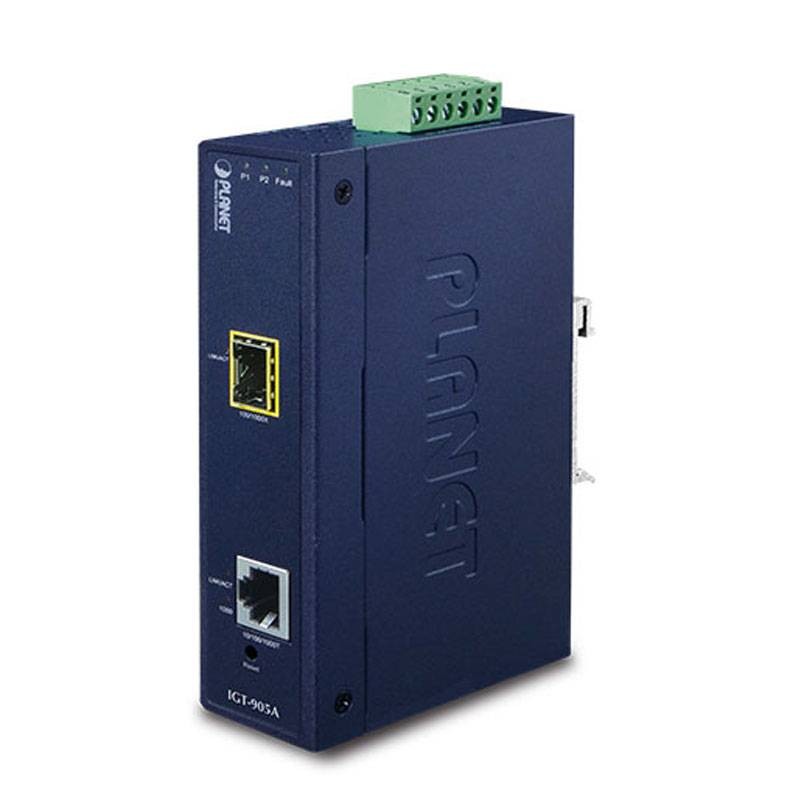

Multimedia Converter 4 Power industrial 1 port SFP 10/100/1000BASE-T IGT-905A
4PW IGT-905A
4711213687983
Industrial 4 Power multimedia converter 1 SFP port 10/100/1000BASE-T to 100/1000BASE-X with the following features:
- 1 10/100/1000BASE-T RJ45 port with automatic negotiation and auto-MDI/MDI-X function
- 1 SFP 100/1000X slot

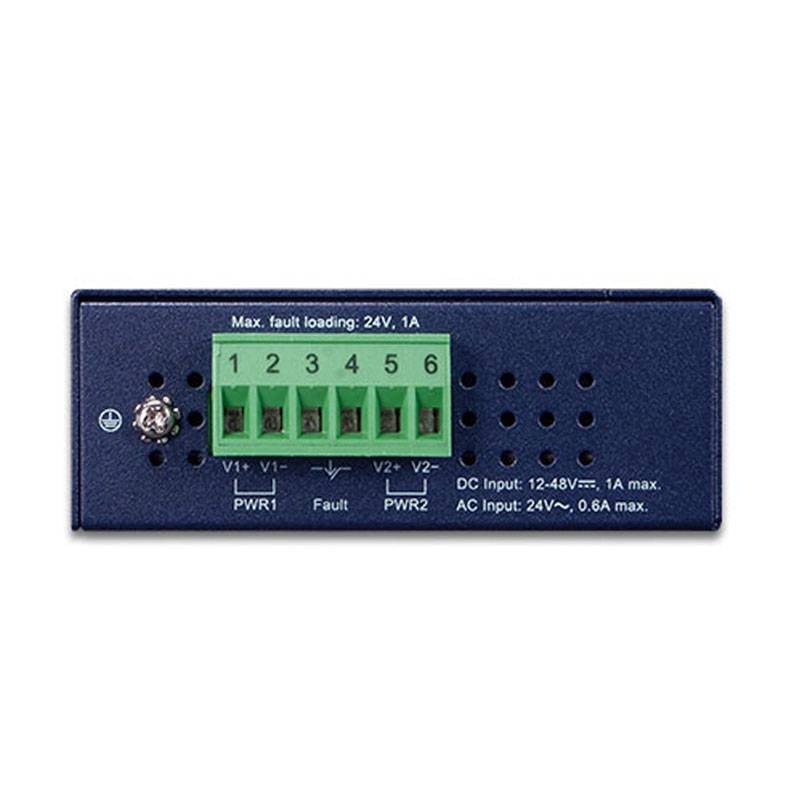

- 12 V to 48 V DC, redundant power supply
- Operating temperature range of -30 to 75 degrees C
- IP-30 metal housing
- Alarm relay for port failure
- Supports ESD 6KV DC Ethernet protection
- Drop free, shock and vibration resistant
- DIN-rail and wall mounting
- Store-and-Forward Mechanism
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x (full-duplex) pause frame flow control
- Maximum frame size of 9216 bytes
- Loop detection and storm control broadcast, multicast and unicast
- Supports VLANs
- Input/output bandwidth control on TP/fiber port
- 4 priority queues, strict priority and weighted round robin (WRR)
Multimedia Converter 4 Power industrial 1 port SFP 10/100/1000BASE-T IGT-905A
€211.47
Tax included
€211.47
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
Pay in installments with Klarna
PLANET IGT-905A Industrial Managed Gigabit Media Converter extends the communication distance with high Gigabit performance over fiber optic cable, where the distance can be extended up to 120 km. The IGT-905A is specifically designed with durable components and a rugged housing to operate reliably in electrically harsh and climatically demanding environments. The IGT-905A provides a high level of immunity to electromagnetic interference and strong electrical spikes usually found on plant floors or in sidewalk traffic control cabinets. Being capable of operating in the temperature range of -30 to 75 degrees C, the IGT-905A can be placed in almost any harsh environment.
The PLANET IGT-905A industrial managed media converter efficiently supports conversion between 10/100/1000BASE-T and 100/1000BASE-X Ethernet and offers remote monitoring and management capabilities. The IGT-905A provides the flexibility of operation made possible with all types of 10/100/1000 Mbps Ethernet media on RJ45 port and offers highly stable Gigabit SFP fiber performance. It also provides dynamic status reports and real-time alarm messages that help the network administrator easily monitor and manage the entire industrial network.
For efficient management, the IGT-905A is equipped with a remote Web/SNMP (simple network management protocol) interface. With the integrated Web-based management interface, the IGT-905A serves as an easy-to-use, platform-independent management and configuration tool. It can also be managed through any standards-based management software supporting SNMP. In addition, the IGT-905A can manage remote client devices via the TS-1000/802.3ah OAM (operation, administration and maintenance) protocol.
The IGT-905A can be programmed for advanced management features such as IP address configuration, DHCP client function, port configuration, converter configuration, 802.1Q VLAN tag, VLAN Q-in-Q, QoS, OAM control, Layer 2 protocol filtering, broadcast storm control, and inbound/outbound bandwidth control to improve bandwidth utilization. The advanced management capabilities offered by IGT-905A make it ideal for mission-critical and real-time control applications in Industrial Ethernet networks.
The IGT-905A offers high reliability and security to ensure that industrial operation in harsh environments such as traffic control cabinet areas, factory floors, and factories with extremely low or high temperatures can operate stably. In industrial network environments, every device on the network must continue to operate continuously in the hazardous state. If industrial equipment fails to connect to the network, it could affect the entire operation of industrial systems, causing incredible financial losses. With the IGT-905A meeting all the requirements of industrial applications, customers can expect high reliability, fast recovery capability and safe Ethernet network operation.
With high-speed data transmission and easy installation, the IGT-905A can create FTTH (Fiber to the Home) and FTTC (Fiber to the Curb) for ISPs and FTTB (Fiber to the Building) for enterprises. The IGT-905A enables network administrators to easily monitor operations through the Web management interface.
Features:
- Integrated IP-based Web interface for remote management
- SNMP v1/v2c and 4 RMON groups, event trap and SNMP trap support
- Manual DHCP IP address/client setting for IP address assignment
- TS-1000 OAM/IEEE 802.3ah OAM/Loop Back Test
- 16 TCP/UDP filter groups
- Password setting, IP setting and device status via Planet Smart Discovery utility
- Firmware update via remote Web interface
- Reset button for restoring factory settings
- Display of current operating temperature
There are no reviews
Data sheet
- Type: IP Converters
