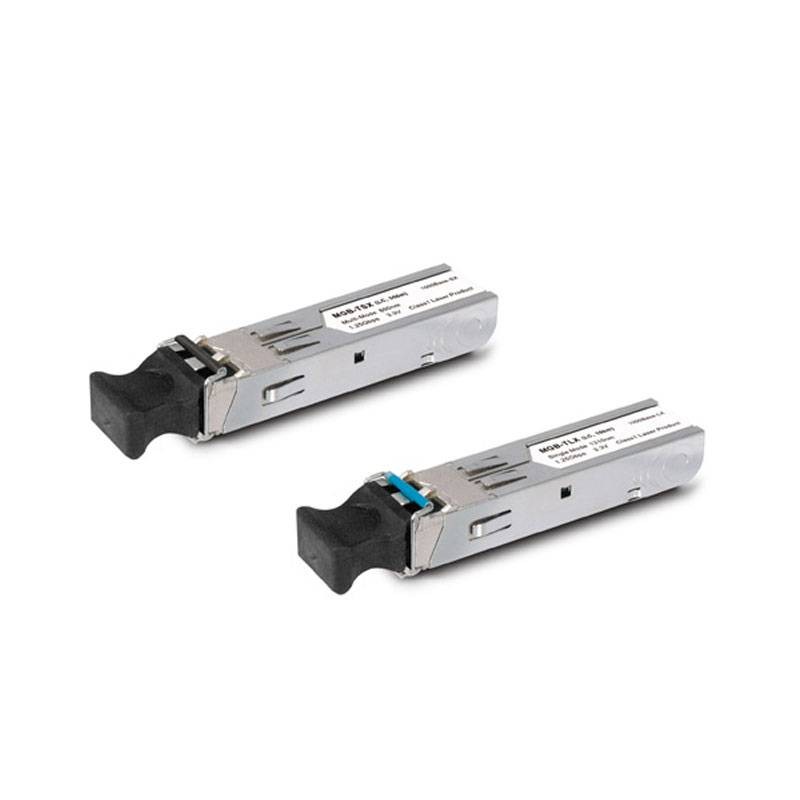

Transceiver Module Mini GBIC SFP-Port 1000BASE-SX - 550 m MGB-TSX
4PW MGB-TSX
4711213687730
Transceiver Module mini GBIC SFP-Port 1000BASE-SX - 550 m with the following features:
- Compliant with IEEE 802.3ab/802.3z Gigabit Ethernet standard.
- One 1000Mbps TP/LC fiber port
- Duplex/single LC connector
- Differential PECL inputs and outputs
- Single 3.3V power supply
- TTL signal detection indicator
- Hot pluggable
- Class 1 laser product complies with EN 60825-1 standard
- Plug and Play installation
Transceiver Module Mini GBIC SFP-Port 1000BASE-SX - 550 m MGB-TSX
€34.92
Tax included
€34.92
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 27
: 11
Pay in installments with Klarna
The MGB family consists of Small Form Factor Pluggable (SFP) transceiver modules designed specifically for high-performance integrated duplex data link over single-mode optical fiber. These transceiver modules comply with the SFP Multisource Agreement (MSA) and are hot-pluggable. These modules offer an easy way to be installed in SFP MSA-compliant ports at any time without the interruption of host equipment operation.
The MGB family of Gigabit Ethernet SFP Mini -GBIC modules can be installed in PLANET Switch products with a mini-GBIC SFP interface. The deployment distance can be extended from 100 meters (TP) to 550 meters (Multi-mode, LC) and up to 120 kilometers (Single-mode, LC).
To meet the growing demand for the Industrial Ethernet fiber solution, Planet releases the MGB-T 1000BASE-SX/LX/BX series transceivers capable of reliable operation in electrically harsh, climatically demanding and wide temperature range (-40 ? to 75 ?) environment. MGB-T series 1000BASE-SX/LX/BX transceivers provide fast and easy 1000BASE-SX/LX/BX connection for wide temperature Planet industrial equipment.
The MGB family of Gigabit Ethernet SFP module can be installed in PLANET Switch and Media Converter products with 1000BASE-SX/LX/BX SFP interface. The deployment distance can be extended from 550 m (Multi-mode, LC) to a maximum of 120 kilometers (Single-mode, LC). SFP transceivers are hot plug and hot swap. You can plug and unplug transceivers to/from any SFP port without having to turn off the Switch/Media Converter.
The MGB-T 1000BASE-SX/LX/BX series transceiver is an ideal solution for industrial equipment in temperatures from -40 to +75 degrees with 1000BASE-SX/LX/BX SFP interfaces. The deployment distance can be extended from 550 m (Multi-mode, LC) to 10/20/40/80 kilometers (Single-mode, LC).
Features:
- PHY Type: IEEE 802.3z 1000BASE-SX
- Fiber Type: Multi-mode
- Connector: Dual LC/UPC
- DDM
- Wavelength: 850nm
- Maximum distance: 550 m
- Operating temperature: -40/+75°C
There are no reviews
Data sheet
- Type: Transceivers
