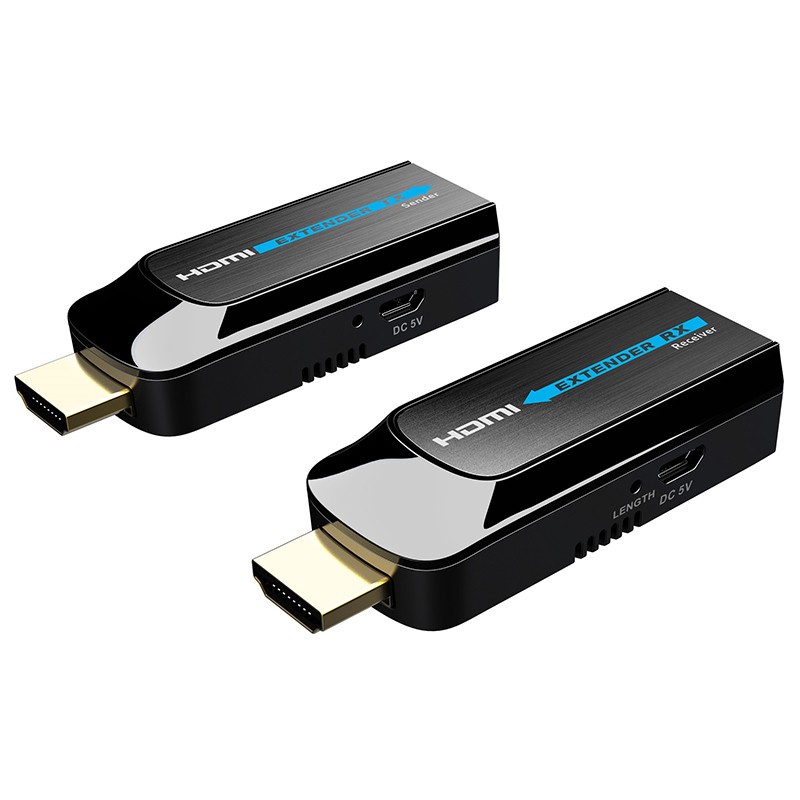

Extension of HDMI signal FTE and up to 50 metres EXTMINI
FTE EXTMINI
8436545305133
Extension of HDMI signal FTE is composed of the transmitter and receiver pair, and it allows you to extend the signal between two devices up to 50 metres via cat cable. 6/6a/7. Solution ideal for home use or show rooms , conference rooms, security.
Extension of HDMI signal FTE and up to 50 metres EXTMINI
€51.71
Tax included
€51.71
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 7
: 1
Pay in installments with Klarna
Features:
- Extends the HDMI signal over a single cat cable. 6/6a/7 up to 50 meters
- Miniature size
- Key LENGTH on the receiver for the managing of the power of the signal based on the length of the LAN cable used
- Plug & Play installation, requires no configuration
- The receiver function for the POC (Power On Cable) for remote power supply from the transmitter via LAN cable
- The number of inputs of transmitter 1
- Connector type HDMI type A male
- Number outputs the transmitter 1
- Type of connector RJ45 female
- Length maximum output cable - m 50, cat. 6/6a/7
- The number of inputs the receiver 1
- Type of connector RJ45 female
- Maximum cable length input - m 50, cat. 6/6a/7
- Number of outputs receiver 1
- Connector type HDMI type A male
- Speed bandwidth - Gbps to 10.2
- HDMI version 1.3
- Version HDCP 1.3
- Not 3D Compatible
- Not Support HDMI CEC function
- Frequency range - Hz 50/60
- NO Deep Color Support
- The maximum video resolution supported 1080p@60Hz
- Video resolution supported 480i/p@60Hz, 576i/p@50Hz, 720p@50/60Hz 1080i/p@50/60Hz
- Encodings supported audio L/R Stereo
- Support IR signals NO
- Types of connections supported point - to-Point (Solution 1:1)
- Power supply - VDC 5 (via micro USB cable supplied). Only needed for the TX (optional for the RX)
- Consumption - W, TX: 2, RX: < 2
- Material type ABS
- Dimensions of TX and RX (L x h x d) 71,5 x 26 x 11mm
- Weight of TX and RX - 10gr.
Package contents:
- Mini transmitter extender HDMI - LAN
- Mini receiver extender LAN - HDMI
- 2 power cables micro USB-1 m
- The user's manual.
There are no reviews
Data sheet
- Type: Extender
