Melchioni MK-1560 HDMI TX+RX Extender Kit up to 60 meters 149029700
MEM 149029700
8006012367546

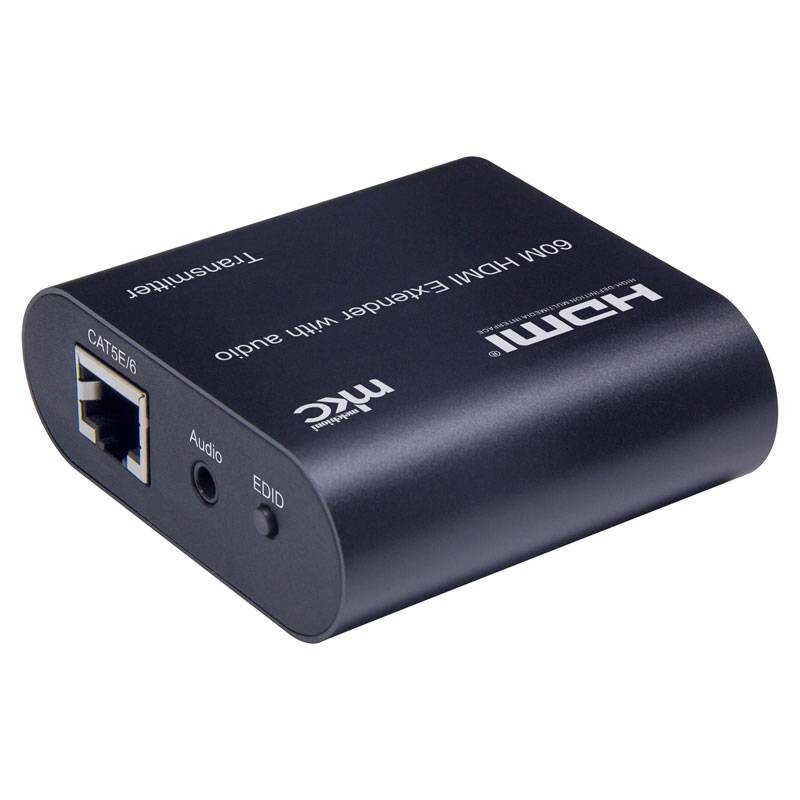

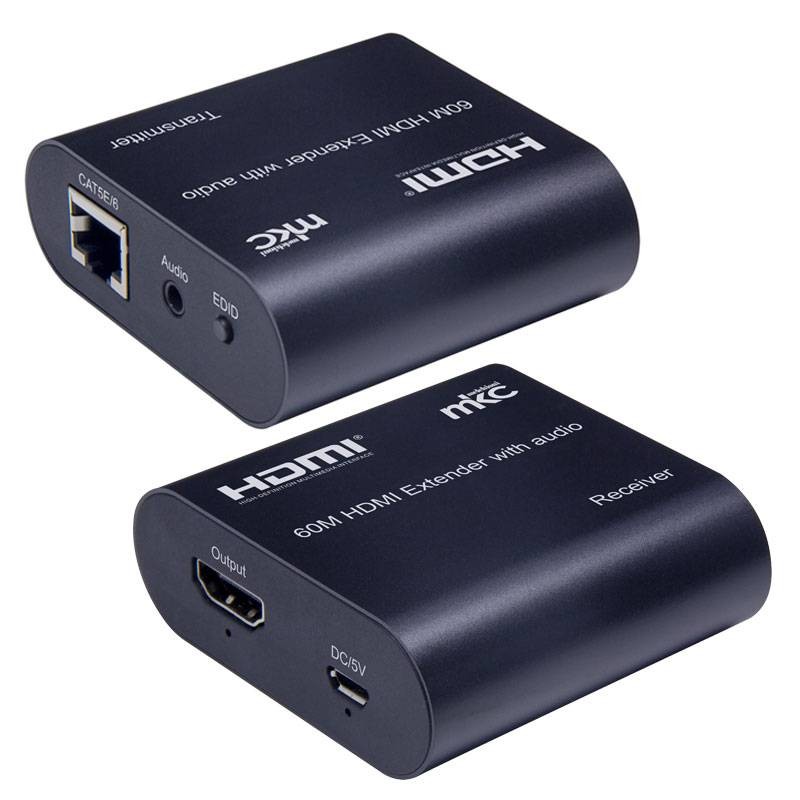

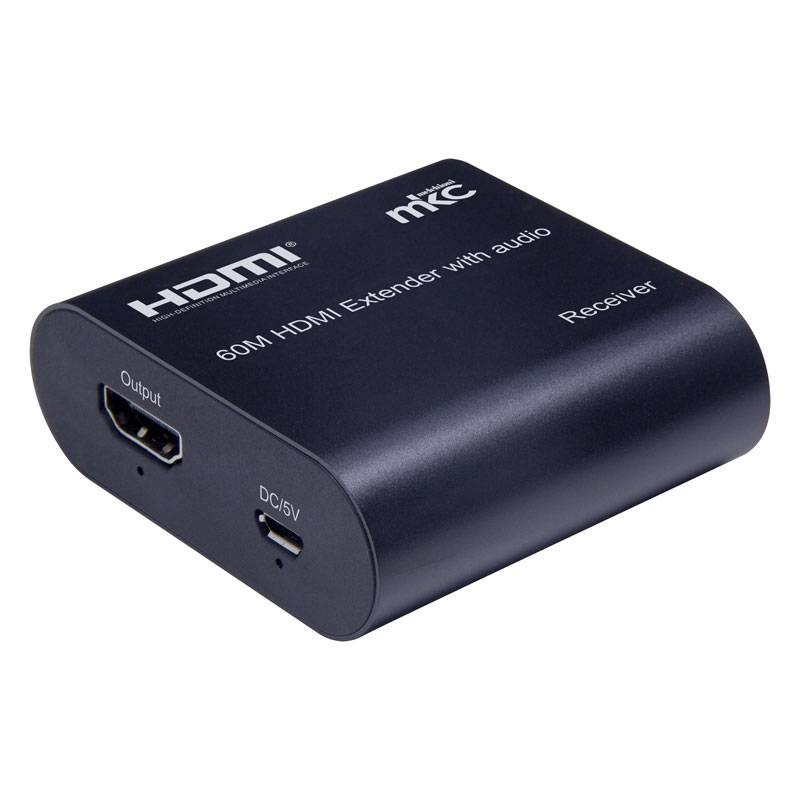

Melchioni MK-1560 1.4 HDMI TX+RX Extender Kit. Full HD 1080p 60Hz resolution up to 60mt over single Cat5e/6.
The Extender uses single cat5e or cat6 (recommended) cables instead of HDMI cable to transmit the high-definition signal up to 60 meters, lowering costs.
The Extender is designed to provide long-distance transmission of the high-definition signal.
Package includes:
- 1 x TX extender
- 1 x RX extender
- 2 x 5V 1.5A power supply
- 1 x user manual
Melchioni MK-1560 HDMI TX+RX Extender Kit up to 60 meters 149029700
€50.52
Tax included
€50.52
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 91
: 25
Pay in installments with Klarna
Applications: HDMI extender is used in audiovisual conference, command and control centers, home theater, multimedia teaching, conference system and so on.
Features:
- Supports the highest video resolution 1080p / 60Hz
- 60M long distance transmission
- Both TX and RX support left and right 3.5mm audio output
- Low power consumption, low temperature and high security
- CAT-6 / CAT-5E cable length between Rx and TX: up to 60 meters
- Supported input resolution via HDMI: 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
- Resolution supported output via HDMI: 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
- Maximum bandwidth: 150 MHz
- Maximum transmission rate: 4.5 Gbps
- Input video signal: 0.5 ~ 1.5 volts p-p
- DDC output signal: 5 volts p-p (TTL)
- HDMI input cable distance: standard HDMI cable AWG26 ?10m
- HDMI output cable distance: standard HDMI AWG26 cable ?15m
- TX Max working current: 300mA
- RX Max working current: 300mA
- Power supply: AC input (50/60Hz) 100V-240V; DC5V / 1.5A output
- Operating temperature range: (-15° to + 45° C)
- Operating humidity range: 5% to 90% relative humidity (non-condensing)
- Dimensions (W x D x H): 64x59x22 (mm)
- TX weight: 53 grams
- RX weight: 53 grams
Connections:
- Connect an HDMI cable between the source device and TX Extender, the maximum cable distance is 10 meters
- Connect an HDMI cable between the display device and RX Extender, the maximum cable distance is 15 meters
- Connect single cat-5e or cat-6 cables (recommended) instead of HDMI cables between TX and RX Extender, maximum cable distance is 60 meters
- Connect 5V power supply to TX and RX;
- LED indicator light: TX and RX LED indicator light: when there is an incoming signal, it turns blue
- EDID button: the button can support EDID switching between 720P and 1080P(1080P is the default EDID when the power is on)
There are no reviews
Data sheet
- Type: Network extensions
