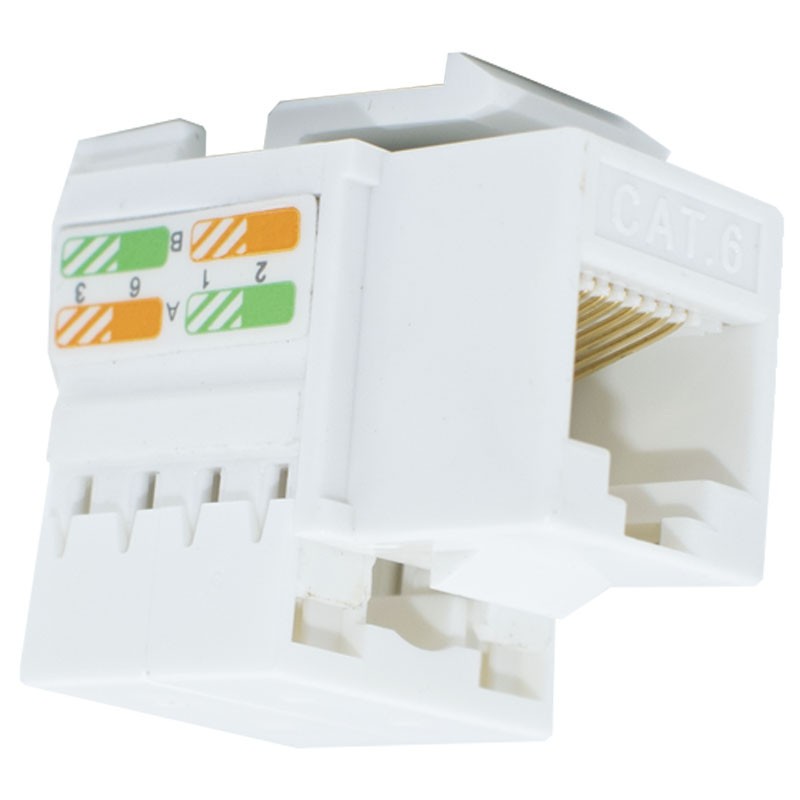

RJ45 socket Orca Category 6 UTP 8 positions 233130-00
ORC 233130-00
RJ45 socket Orca Category 6 UTP 8 pos. Color white modular Jack 750 Mating Cycles, Block-110 style with 150 cycles termination, IDC Contact with bronze and phosphor and foil, of nickel, Current Rating: 1.5 A, Voltage 125 VAC, insulation Resistance 100 Mohm min 500 VD, Cable 22-26 from the wire.
RJ45 socket Orca Category 6 UTP 8 positions 233130-00
€2.13
Tax included
€2.13
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1671
RJ45 socket Orca Category 6 UTP 8 pos. Color white modular Jack 750 Mating Cycles, Block-110 style with 150 cycles termination, IDC Contact with bronze and phosphor and foil, of nickel, Current Rating: 1.5 A, Voltage 125 VAC, insulation Resistance 100 Mohm min 500 VD, Cable 22-26 from the wire. The inserts ORCA category 6 requirements TIA/EIA-568-b.2, have slim body and compatible with the plaques ORCA. Can be used for the universal harness with the possibility of termination for both T568A is T568B. The cables can be handled at 90° or 180° and allow a greater flexibility. The relief dellinserto can be also used to reduce stress on cable at point of termination. Available either black or white. Jack shielded and unshielded to meet all the performance requirements of the user. Are the connectors 110 style modular for the termination of the solids from 22-26 AWG.
Data sheet
- Type:
- Sockets and plugs
