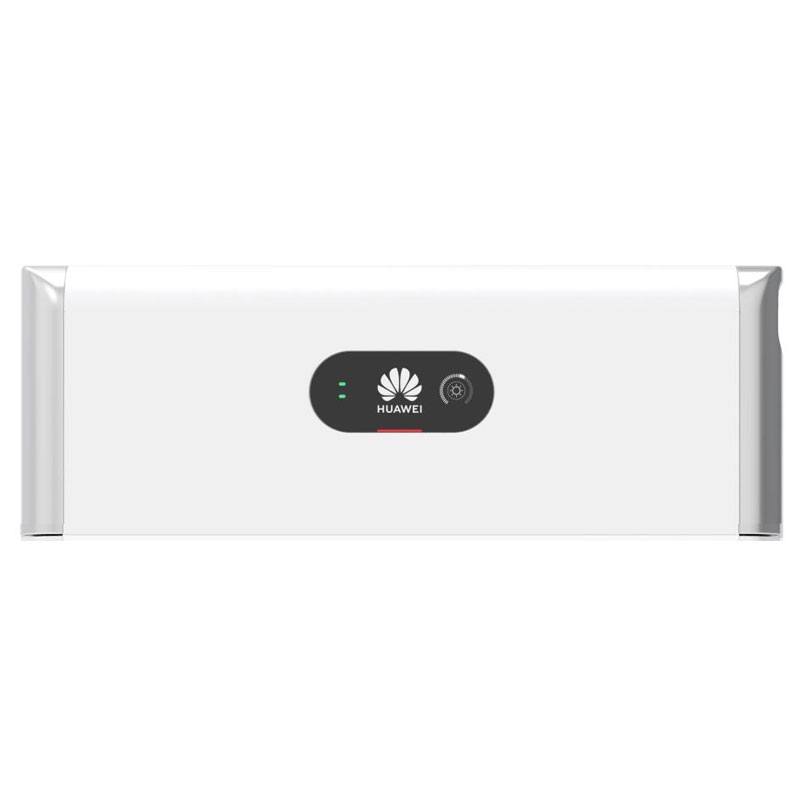

BMS Power Module Huawei LUNA2000-5KW-C0 SUNDCDCMODUL
35T SUNDCDCMODUL
Huawei LUNA2000-5KW-C0 BMS power module to be combined with LUNA2000-5-E0 batteries:
- Power module dimensions (WxDxH) 670x150x240 mm
- Weight of the power module 12 kg
- Degree of protection IP66
BMS Power Module Huawei LUNA2000-5KW-C0 SUNDCDCMODUL
€1,560.98
Tax included
€1,560.98
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Features:
- Rated charging and discharging power 5 kW
- Rated voltage (single-phase system) 450 V
- Operating voltage (single-phase system) 350560 V
- Rated voltage (three-phase system) 600 V
- Operating voltage (three-phase system) 600980 V
- Dimensions (H x W x D) 240 mm x 670 mm x 150 mm
- Weight 12 kg
- Cooling mode Free cooling
- IP66 rating
- RS485 and CAN communications (for cascade connection)
- Operating temperature -25°C to +55°C
- Operating humidity 5%95% RH
- Maximum operating altitude 4,000 m
There are no reviews
Data sheet
- Type: Electricity modules
