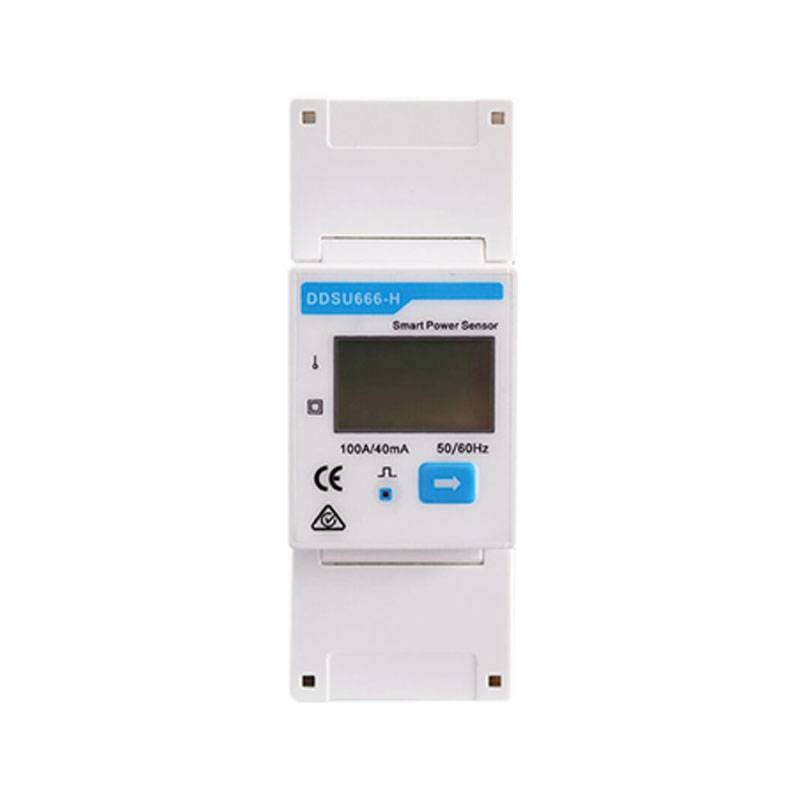

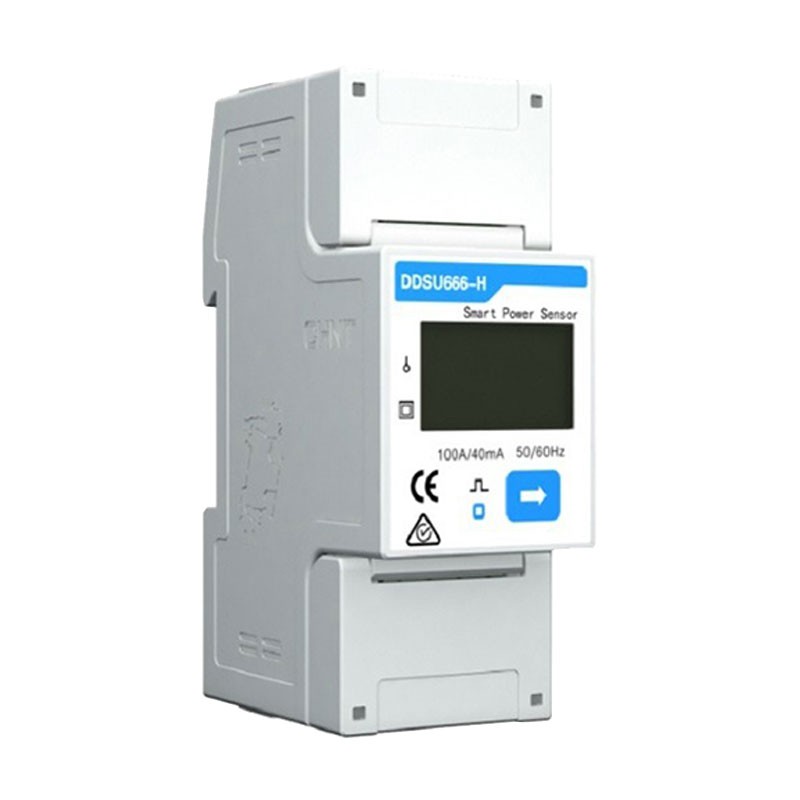

Huawei Single Phase Smart Power Sensor for Inverter and Batteries
35T SUNDDSU66H
Huawei DDSU666-H single-phase smart power sensor with LCD display. Required for connection between single-phase SUN2000-XKTL-L1 Huawei inverter and batteries.
Huawei's in-house Smart meter is a product for measuring the flow of electricity in photovoltaic systems.
Necessary for systems that require installations of storage devices as it calculates and records all input and withdrawal data from the grid.
Huawei Single Phase Smart Power Sensor for Inverter and Batteries
€156.10
Tax included
€156.10
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Features:
- Size (H x W x D) 100 x 36 x 65.5 mm
- DIN35 Rail mounting type
- Weight (including cables) 1.2 kg
Power supply:
- 1P2W Mains type
- Input voltage 176 Vac- 288 Vac
- Power consumption 0.8W
Measurement range:
- Tens phase 176 Vac - 288 Vac
- Current 0 ~ 100 A
Measurement Accuracy:
- Voltage ±0.5 %
- Current / Power / Energy ±1 %
- Frequency ±0.01 Hz
Communication:
- RS485 interface
- Baud rate 9,600 bps
- Modbus-RTU communication protocol
Environment:
- Operating temperature -25+60°C
- Storage temperature -40+70°C
- Operating humidity 5 %RH ~ 95 %RH (non-condensing)
Data sheet
- Type: Accessories
