Huawei Three Phase Smart Power Sensor for Inverter and Batteries ZIGHA009
860 ZIGHA009

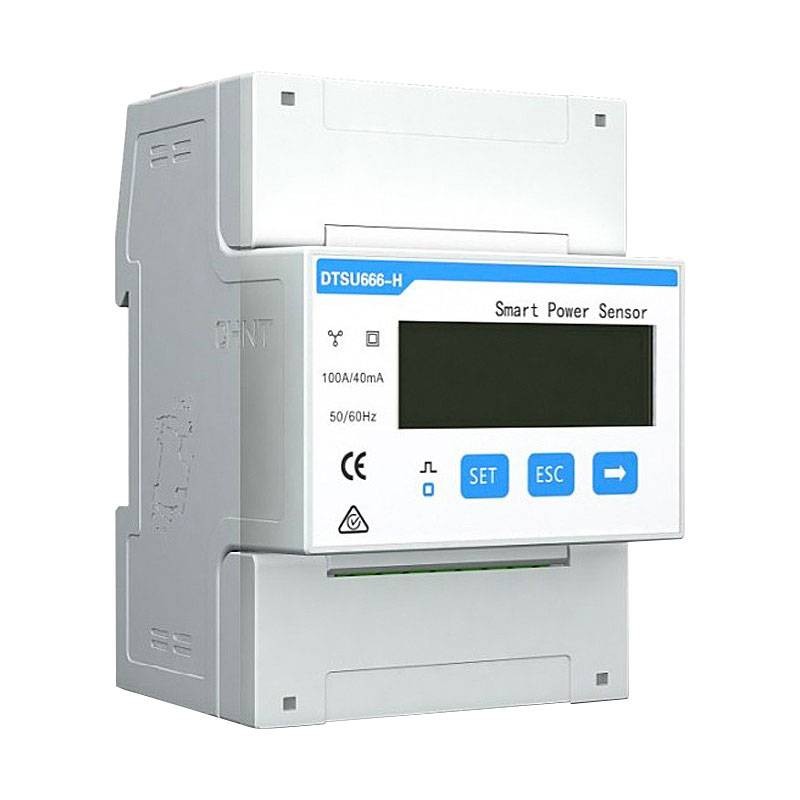

Huawei DTSU666-H 250A/50mA three-phase Smart Power Sensor for Inverter and batteries with LCD display.
Needed for connection between SUN2000-XKTL-M1 three-phase Huawei inverter and batteries.
Huawei Three Phase Smart Power Sensor for Inverter and Batteries ZIGHA009
€181.18
Tax included
€181.18
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Huawei's in-house smart meter is a product that enables electricity flow measurement in photovoltaic systems. Necessary for systems that require installations of storage devices as it calculates and records all input and withdrawal data from the grid.
Advantages:
- Accuracy of measurement: class 1
- LCD display, easy to use
- Total power consumption 1W
Features:
- Size (H x W x D) 100 x 72 x 65.5 mm
- Mounting type DIN35 Rail
- Weight (including cables) 1.5 kg
- Mains Power Supply Type 3P4W
- Input voltage 176 Vac ~ 288 Vac
- Power consumption ? 1 W
- Line voltage 304 Vac ~ 499 Vac
- Phase voltage 176 Vac ~ 288 Vac
- Current 0 ~ 250 A
Measurement accuracy:
- Voltage ±0.5 %
- Current / Power / Energy ±1 %
- Frequency ±0.01 Hz
Communication:
- RS485 interface
- Baud rate 9,600 bps
- Modbus-RTU communication protocol
Environment:
- Operating temperature -25/+60°C
- Storage temperature -40/+70°C
- Operating humidity 5 %RH ~ 95 %RH (non-condensing)
There are no reviews
Data sheet
- Type: Accessories
