Ball valve for Gas Enolgas female 3/4 x 1 S0284N38
06X S0284N38
8010660011836

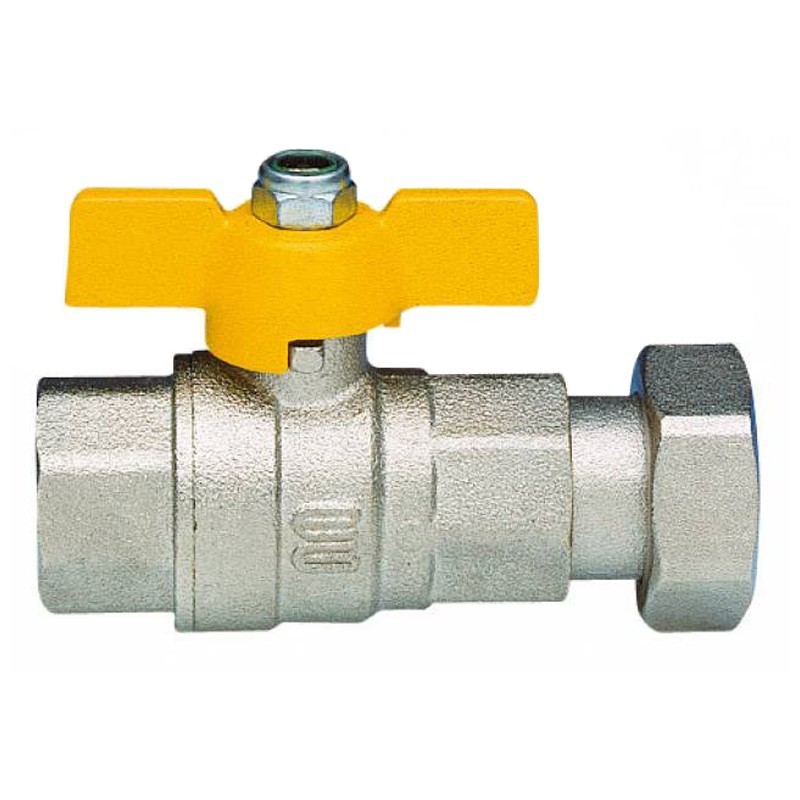

Ball valve for fuel Gas Enolgas Omega full bore female thread size 3/4 x 1" with butterfly or lever counters, nickel-plated.
Ball valve for Gas Enolgas female 3/4 x 1 S0284N38
€22.53
Tax included
€22.53
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 10
Pay in installments with Klarna
The ball valves in OMEGA they are approved in accordance with EN331. The ball valves OMEGA have obtained official approvals for use with gas in various countries.
Threads: threaded Ends UNI EN 10226 (ex ISO 7/1).
USES fuel Gas::
- town gas (1st family)
- natural gas (2nd family)
- liquid gas (3rd family).
The ball valves OMEGA are also suitable for the usocon hot and cold water, compressed air, oils and idrocarburiin general.
OPERATING PRESSURE
For fuel gas, 1^, 2^ and 3^ family max 5 MOP.
For other uses with liquids from PN 80 (1/4") to PN 16 (4").
See pressure/temperature diagram.
There are no reviews
Data sheet
- Type: Ball valves
- Connection: F
- System: Gas
- Hoses: 1
3/4
