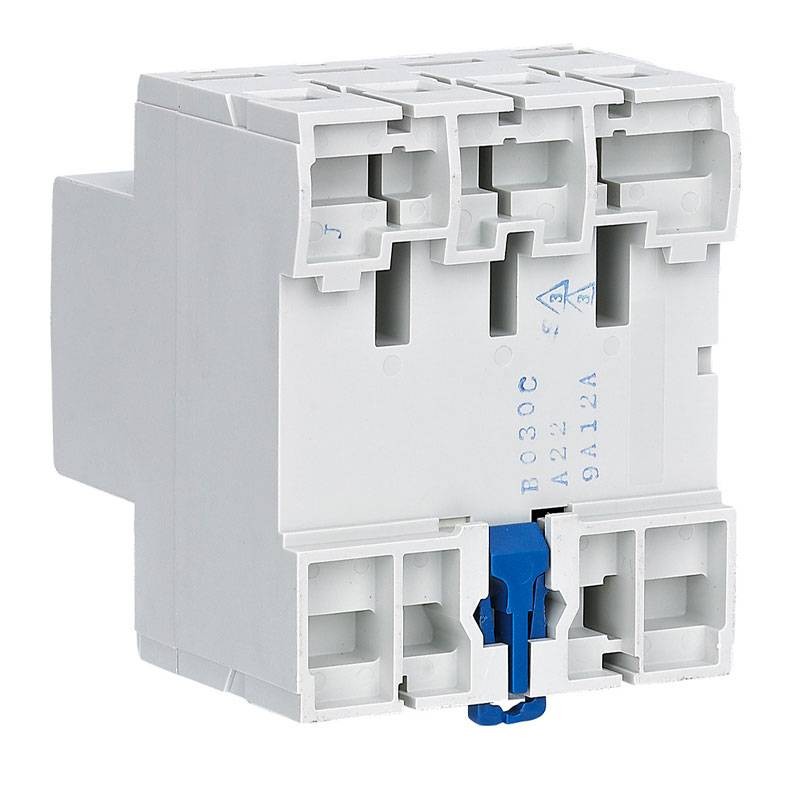

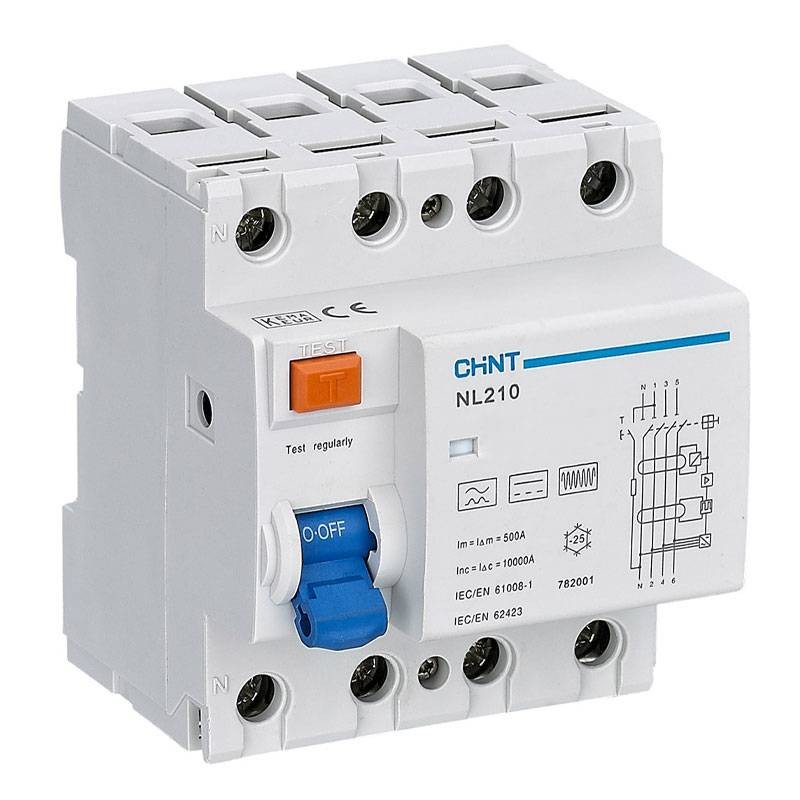

Chint Residual current device NL210 63A 4P 300MA Type B 4 Modules 782010
CHT 782010
6901800803157
Chint NL210 Residual current device with the following characteristics:
- Number of Poles: 4P
- Rated current: 63 A
- Type: B
- Rated voltage: 400 Vac
- Rated differential current: 300 mA
- Number of Modules: 4
- Degree of protection: IP20
Matching accessories: AX-5 series auxiliary contact.
Chint Residual current device NL210 63A 4P 300MA Type B 4 Modules 782010
€316.25
Tax included
€316.25
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
The Residual current device is used to protect people, not systems. The moment the person goes to touch it, it creates a circuit with the ground. The current instead of staying in the household circuit, uses the human body to go to ground.
The residual current device, also called a circuit breaker, is a device in your electrical system. It is capable of opening the circuit, that is, shutting off the power supply, the moment the current accidentally dissipates.
A Residual current device offers protection in case of current leakage but not in case of overvoltage. Instead, the circuit breaker is required for this type of problem.
Type B residual current circuit breakers were developed for the detection of fault currents with a continuous waveform or high frequency.
Pure differential circuit breakers NL210 series, without built-in overcurrent releases. For protection he users against direct and indirect contacts.
Features:
- Reference standard: IEC/EN 61008-1
- Number of Poles: 4P
- Rated current: 63 A
- Rated voltage: 400 Vac
- Rated frequency: 50/60 Hz
- Insulation voltage: 500 Vac
- Impulse voltage: 4 kV
- Conditional short-circuit current: 10 kA
- Power Dissipation: 24.12 W
- Number of DIN modules (1 DIN = 18 mm): 4
- Degree of protection: IP20
- Matching accessories: AX-5 series auxiliary contact
There are no reviews
Data sheet
- Voltage:
- 400VAC
- Modules:
- 4
- Poles:
- 4P
- RCD Type:
- B
- Differential current :
- 0.3A
- Degree of protection:
- IP20
- Amps:
- 63A
- Circuit Protections:
- Residual current devices
