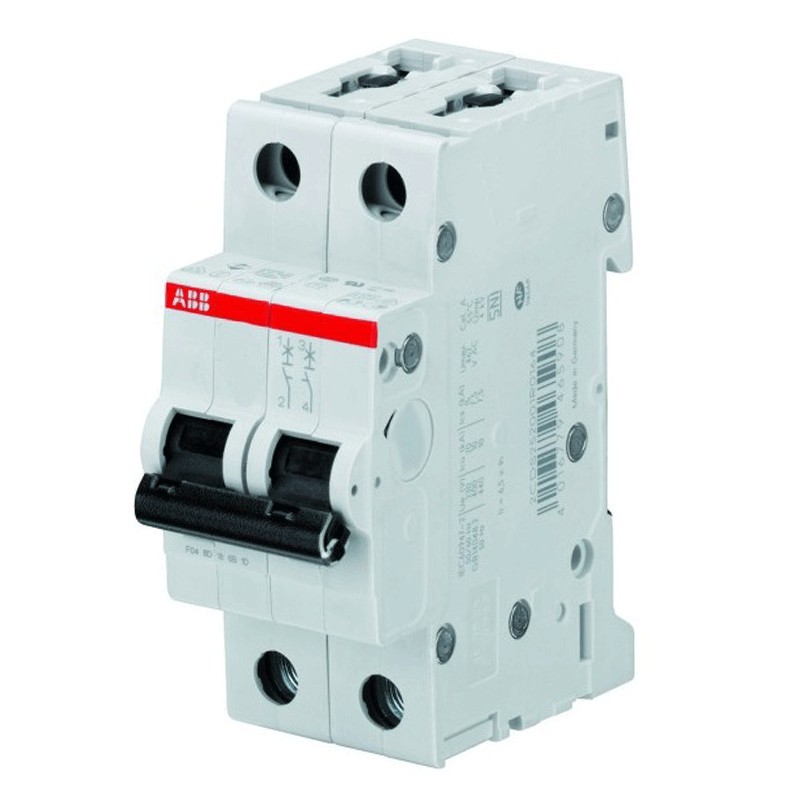

ABB circuit breaker 2 modules 1P+N 4.5 KA 20A S598408
ABB S598408
4016779598408
ABB circuit breaker, 2 modules, DIN connection (universal for any switchboard on the market), poles 1+N, 20 amperes, breaking capacity 4.5 kA, voltage 230 Vac, curve C.
ABB circuit breaker 2 modules 1P+N 4.5 KA 20A S598408
€18.58
Tax included
€18.58
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 134
: 5
Pay in installments with Klarna
The C-curve can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic installations.
A circuit breaker is a safety device that can automatically (i.e. without external intervention) interrupt the flow of electrical current in an electrical circuit in the event of an overcurrent.
Features:
- Abb series
- Voltage 230 Vac
- Current In 20A
- Interrupting capacity Icn 4.5kA
- Tripping curve C
- Rated frequency 50/60 Hz
- 2 modules
- Poles 1P+N
- Degree of protection IP20
- Recessed depth 68 mm
- Maximum cable cross-section mm² 25
Interruttore automatico perfetto come da descrizione.
Prodotto conforme alla descrizione ed all'ordine
Ottimo MAGNETOTERMICO 2 MODULI 1P N 4,5KA 20A S598408:
Data sheet
- Voltage: 230VAC
- Modules: 2
- Poles: 1P+N
- Power: 4.5KA
- Amps: 20A
- Circuit Protections: Circuit breakers
