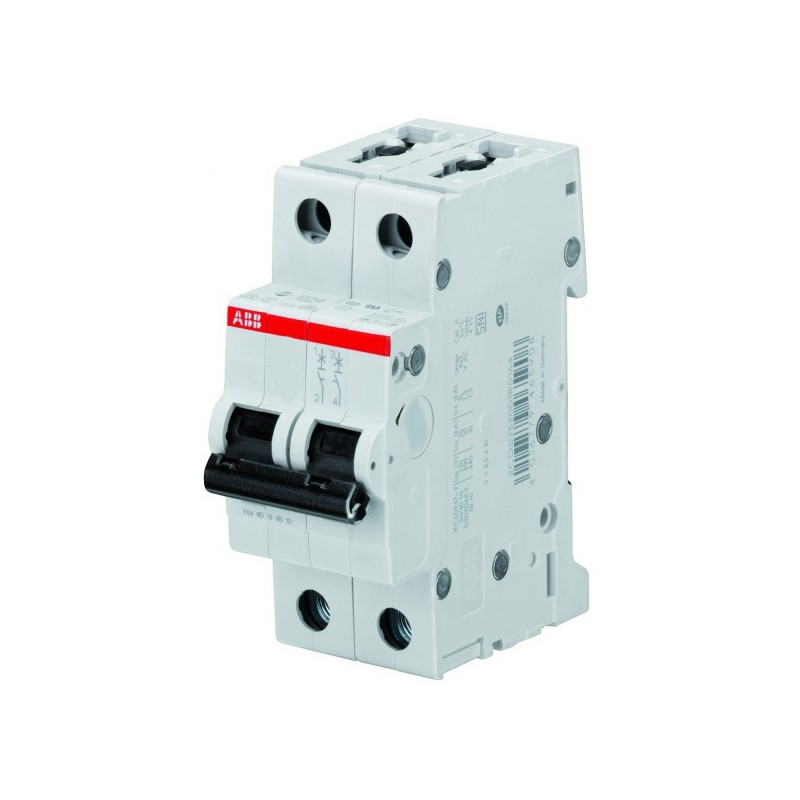

ABB circuit breaker 2 Modules S 2-Pole 4.5 KA 25A S598507
ABB S598507
4016779598507
ABB circuit breaker, 2 modules, DIN socket, 2P poles, 25 amperes, breaking capacity 4.5 kA, voltage 230 Vac, curve C.
ABB circuit breaker 2 Modules S 2-Pole 4.5 KA 25A S598507
€34.44
Tax included
€34.44
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 129
: 4
The C-curve can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic installations.
A circuit breaker is a safety device that can automatically (i.e. without external intervention) interrupt the flow of electrical current in an electrical circuit in the event of an overcurrent.
Characteristics:
- Depth mm 66
- Interrupting capacity Icn ka 4500
- Width mm 36
- Height mm 90
- Current In A25
- Poles N°2
- Voltage V 230
- Modules N°2
- Degree of protection IP20
- Maximum cable cross-section mm²
Prodotto ottimo, leva robusta e senza difetti.
Ottimo!
Perfettamente funzionante e di qialità!
Servizio eccellente, cortesia, disponibilità e velocità nei tempi di consegna. Consigliatissimo.
Data sheet
- Voltage:
- 230VAC
- Modules:
- 2
- Poles:
- 2P
- Curve:
- C
- Power:
- 4.5KA
- Amps:
- 25A
- Circuit Protections:
- Circuit breakers
