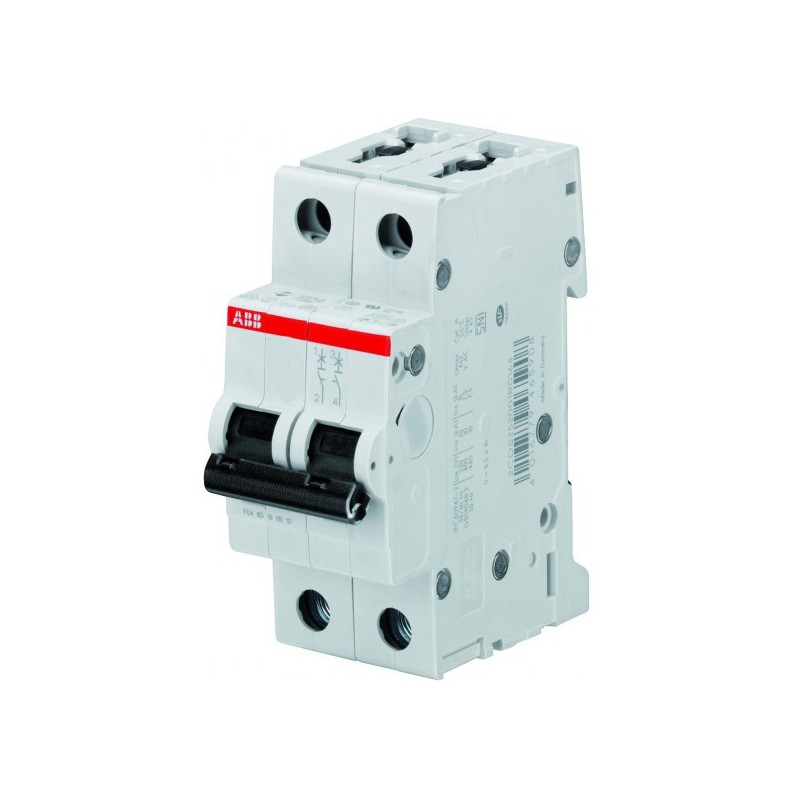

ABB Circuit breaker 2 modules 2-pole 4.5 KA 6A S598446
ABB S598446
4016779598446
ABB thermal-magnetic circuit breaker, 2 modules, DIN connection, 2P poles, 6 amperes, breaking capacity 4.5 kA, voltage 230 Vac, curve C.
ABB Circuit breaker 2 modules 2-pole 4.5 KA 6A S598446
€23.44
Tax included
€23.44
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 48
: 48
Pay in installments with Klarna
The C-curve can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic installations.
A circuit breaker is a safety device that can automatically (i.e. without external intervention) interrupt the flow of electrical current in an electrical circuit in the event of an overcurrent.
Characteristics:
- Depth mm 66
- Breaking capacity Icn A 4500
- Width mm 36
- Height mm 90
- Current In A6
- Poles N°2
- Voltage V 230
- Modules N°2
- Degree of protection IP20
- Maximum cable cross-section mm²
Data sheet
- Voltage: 230VAC
- Modules: 2
- Poles: 2P
- Curve: C
- Power: 4.5KA
- Amps: 6A
- Circuit Protections: Circuit breakers
