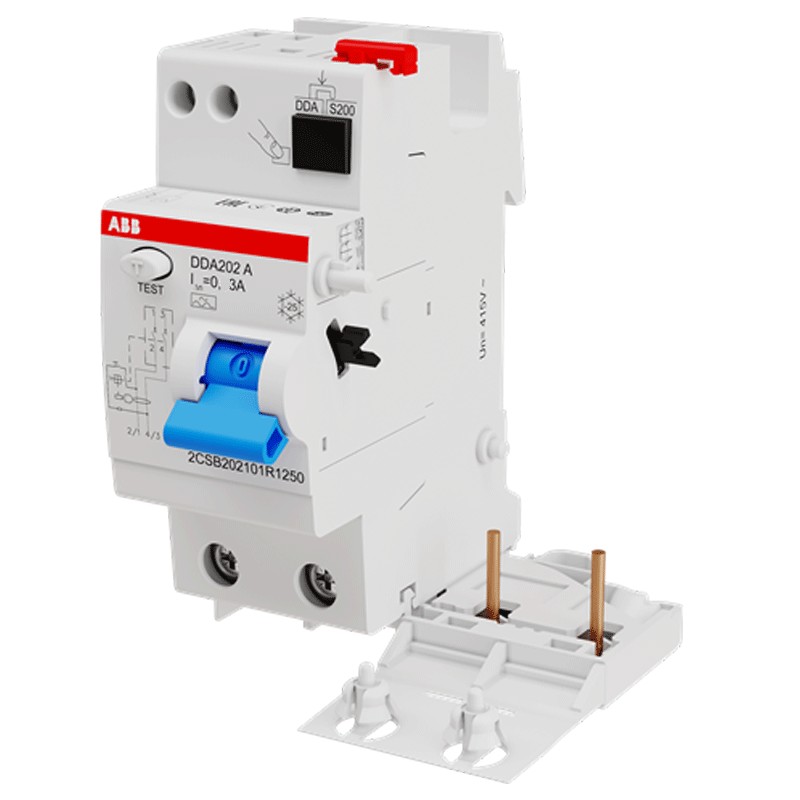

ABB DDA202 2P 25A 300mA differential lock type A 2 modules B427960
ABB B427960
8012542796008
Abb DDA202 series differential block (circuit breaker), with the following characteristics:
- 2 modules
- DIN connection (universal for any switchboard on the market)
- 2 poles
- 25 amperes
- Rated residual current 300mA
- Rated voltage 230/400 Vac
- Type of differential A
ABB DDA202 2P 25A 300mA differential lock type A 2 modules B427960
€94.23
Tax included
€94.23
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 76
: 37
Pay in installments with Klarna
The differential blocks are mechanically designed to prevent a wrong coupling between the block and the circuit breaker: the power of the block must always be equal or greater than that of the circuit breaker. The lateral plastic clamp allows a quicker assembly of the block on the circuit breaker and a push button prevents possible interventions.
It is used to protect human health in case of earth fault (electrical leakage) or phase-to-earth electrocution, thus providing protection also against macro electrical shock, both direct and indirect, on exposed persons.
The differential block type A, ensures operation for AC and unidirectional pulsating type currents.
Features:
- Abb series
- Rated voltage 230/400Vac
- Rated current In 25A
- Rated residual current 300mA
- Type of differential A
- 2 modules
- 2 poles
- Height 93mm
- Width 70 mm
- Depth 76 mm
- Net weight 210 gr
There are no reviews
Data sheet
- Voltage: 230/400VAC
- Modules: 2
- Poles: 2P
- RCD Type: A
- Differential current : 0.3A
- Amps: 25A
- Circuit Protections: Earth Leakage add-on Blocks
