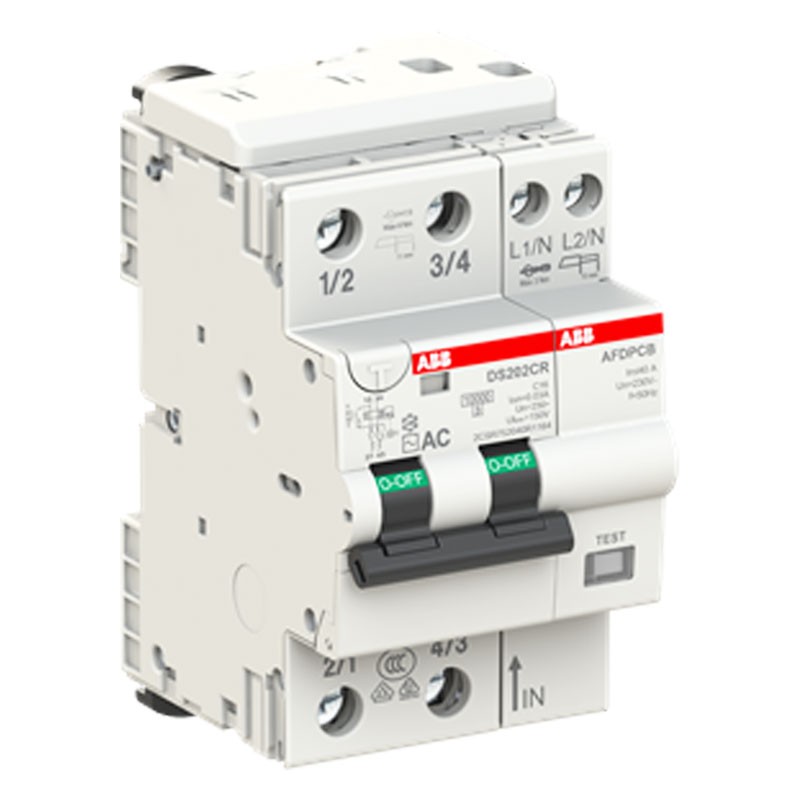

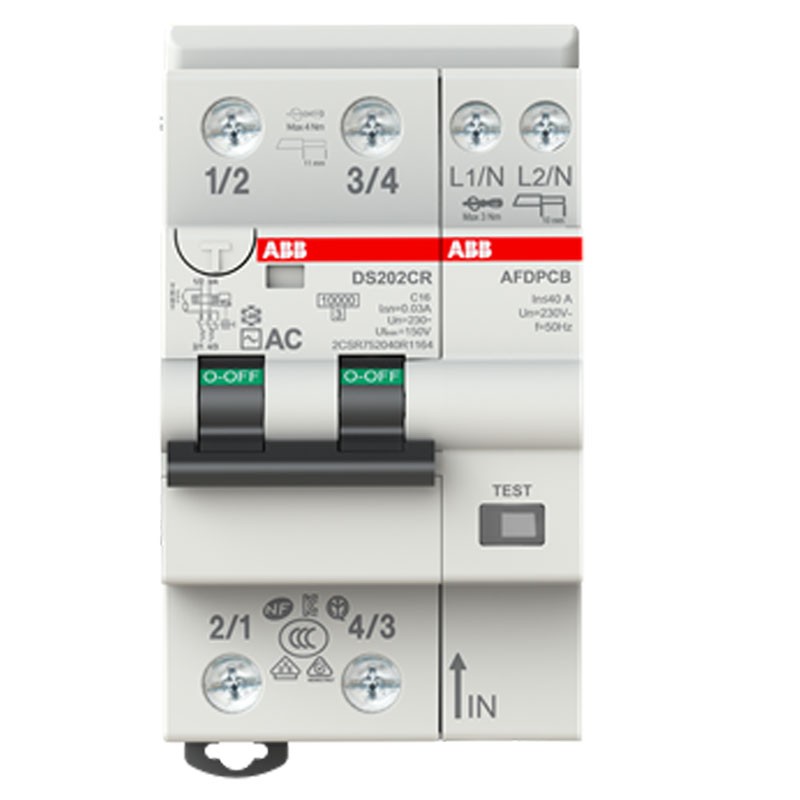

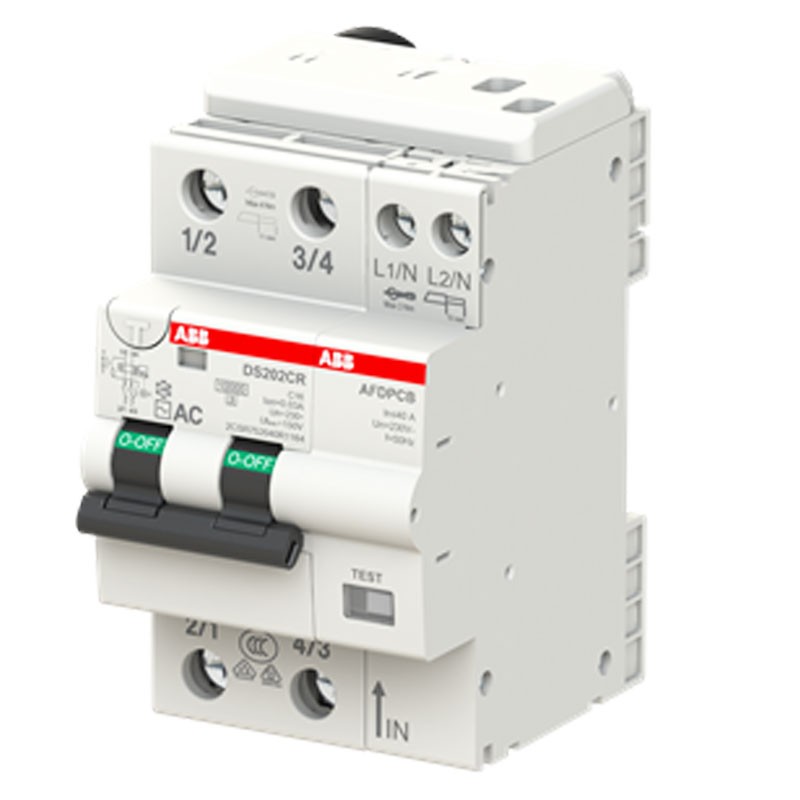

Abb Residual Current Operated Circuit Breaker 2 poles 16A 30mA AC type 6kA 2 modules DS202CRC16AC30
ABB DS202CRC16AC30
8012542141754
Residual Current Operated Circuit Breaker with overcurrent protection Abb, with the following characteristics:
- Rated operating voltage: acc. to IEC 60898-1 230V
- Rated insulation voltage (U i ): acc. to IEC/EN 60664-1 440V
- Rated impulse withstand voltage (U imp ):4 kV
- Tripping characteristic: C
- Residual current type: AC type
- Input voltage type :AC
- Rated current (In ):16 amperes
- Rated residual current: 30 mA
- Rated short-circuit capacity: 6 kA
- Rated maximum short-circuit breaking capacity (I cu ): 10kA
- Rated service short-circuit breaking capacity (Ics ): 6kA
- Maximum peak current: 0.25kA
- Leakage current type: AC
- Frequency: 50Hz
Connection capacity:
- Bar 10...10 mm²
- Flexible 1...25 mm²
- Rigid Solid 1...35 mm²
Rated cross-section:
- 1 - Solid-Core 1... 35 mm²
- 4 - Multi-Wired 1... 25 mm²
Abb Residual Current Operated Circuit Breaker 2 poles 16A 30mA AC type 6kA 2 modules DS202CRC16AC30
€127.83
Tax included
€127.83
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 714
: 32
Pay in installments with Klarna
The Residual Current Operated Circuit Breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.
The Residual Current Operated Circuit Breaker in the electrical system integrates three different protections:
- the magnetic one for short circuits that can endanger an entire building with the danger of fire;
- the thermal one for overloads in the power supply (e.g., more than one appliance in operation);
- that differential proper of the circuit breaker that protects the subject from a power leakage.
AC type Residual Current Operated Circuit Breaker, the tripping is ensured for suddenly or slowly increasing applied sinusoidal alternating differential currents (IEC EN 61008-1).
Features:
- Abb series
- Standard: CEI/EN 61009-1 - CEI/EN 61009-2-1
- Rated frequency: 50Hz
- Power loss: 4.20W
- Power connection: arbitrary
- Energy class limit: 3
- Electrical resistance: 10000 operations
- Mechanical endurance: 20000 operations
- 2 modules
- Number of poles: 2
- Number of protected poles: 2
- Fault indication: blue flag on the window
- Operating characteristic: Instantaneous
- Overvoltage category: III
- Position of neutral terminals: Right Left
- Tightening torque: 4 Nm
- Type of accessory: Auxiliary contact - Signaling/auxiliary contact
- Type of earthing disconnect switch: Non-delayed
- Ambient air temperature: Operating -5 /+55 °C - Storage -40 /+70 °C
- Mounting type: on DIN rail EN 60715 (35mm) via mounting clip
- Mounting position: Any
- Cable size: 35mm²
- Degree of protection: IP20
- Pollution degree: 3
- Environmental conditions: 28 cycles - with 55 °C / 90-96 % - and 25 °C / 95-100 %
- Wire stripping length: 11mm
- RoHS status: following EU Directive 2011/65/EU and Amendment 2015/863 of July 22, 2019
- Net width of the product: 36 mm
- Net height of the product: 86 mm
- Net depth/length of product:72 mm
- Net product weight:0.220 kg
- Built-in depth ( t 2 ): 72 mm
Veramente soddisfatto del servizio. A seguito di un piccolo disguido ho avuto massima assistenza ed hanno risolto velocemente e brillantemente. Comprerò ancora e lo consiglio ai futuri acquirenti.
In confronto ad altri siti ho trovato facilmente il materiale che cercavo, completo delle caratteristiche tecniche.
spedizione rapida, prodotto come dalle attese !
Data sheet
- Modules: 2
- Poles: 2P
- Curve: C
- Power: 6KA
- RCD Type: AC
- Differential current : 0.03A
- Amps: 16A
- Circuit Protections: RCBO
