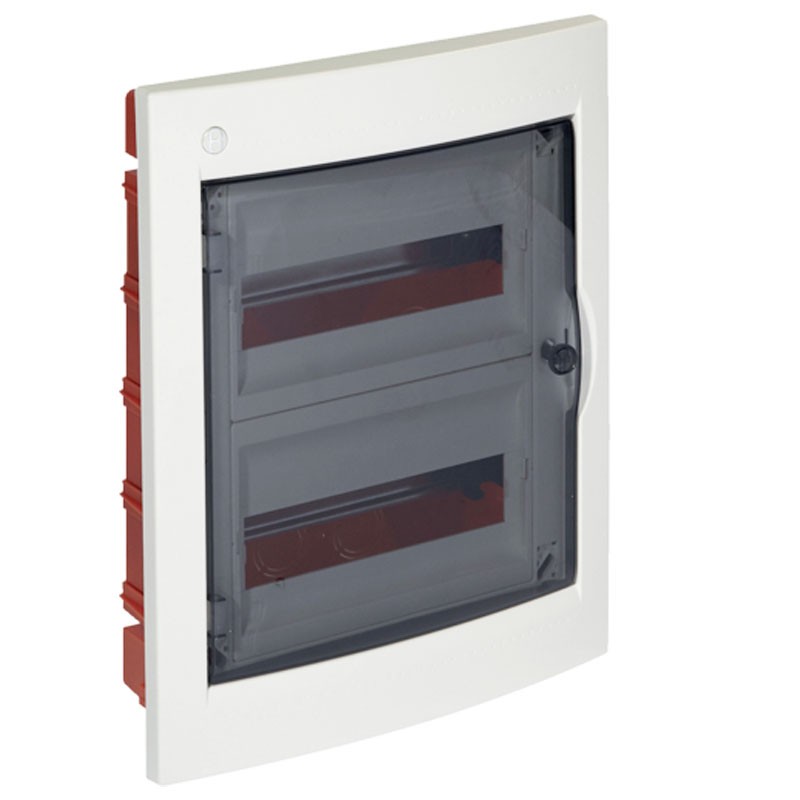

Bocchiotti switchboard with flush door 24 modules IP40 B04104
IBO B04104
8015892041040
Switchboard Bocchiotti LINEA PABLO, with the following features:
- With DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
- Fixing mode: built-in
- 24 modules (on two rows)
- Impact resistance degree IK09
- Degree of protection IP40 (protection against solid bodies 1mm)
- Door color: smoked
- Switchboard color: white RAL 9016
Bocchiotti switchboard with flush door 24 modules IP40 B04104
€46.17
Tax included
€46.17
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 28
: 11
Features:
- Bocchiotti Series
- Rated current 125 A
- Type of door closure without locking
- Cover type Blind door
- Lock without
- Type of cover Door
- Transparent cover or door yes
- Plastic material
- Mounting plate included no
- With lock no
- Number of keys 1
- Number of profiles 2
- Reference standards EN 60670-24
- European WEEE Directive not affected
- Insulation protection class II
- Degree of resistance to incandescent wire according to EN 60695-2-11: 960°C
- Halogen-free
- Ultraviolet resistant
- Operating temperature -25/+60 °C

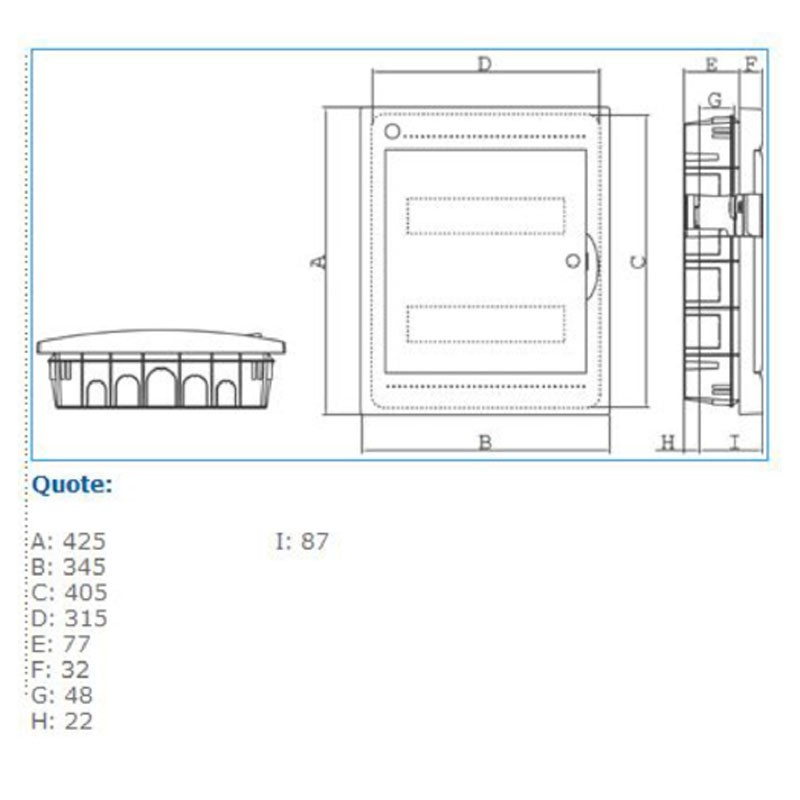

Dimensions:
- Recessed depth 77 mm
- Built-in depth 109 mm
- Internal depth 109 mm
- Height 425 mm
- Installation height 405 mm
- Width 345 mm
