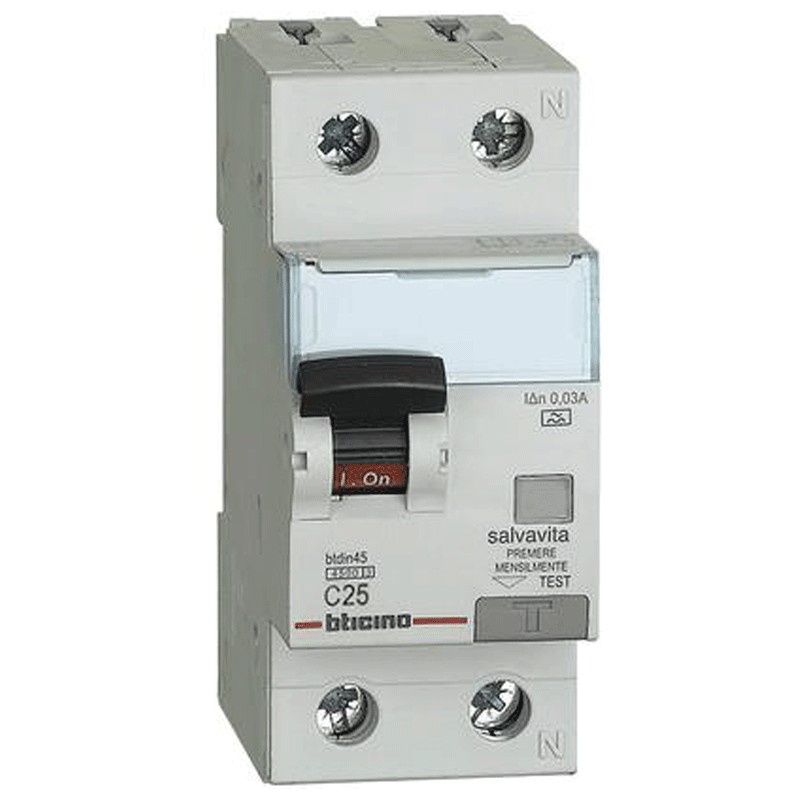

Bticino 1P+N 25A 30mA differential circuit breaker type A 4,5kA 2 modules GA8813A25
BTI GA8813A25
8005543458426
Bticino differential thermomagnetic circuit breaker, 2 modules, DIN connection (universal for any switchboard on the market), poles 1P+N, 25 amperes, breaking capacity 4.5kA, voltage 230 Vac, differential current Idn 0.03A, type A, trip curve C.
Bticino 1P+N 25A 30mA differential circuit breaker type A 4,5kA 2 modules GA8813A25
€103.40
Tax included
€103.40
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 5
: 3
The thermomagnetic circuit breaker is located next to the circuit breaker and integrates a magnetic protection with a thermal one and interrupts the electric current if necessary.
The thermal magnetic circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.
The thermal-magnetic differential switch present in the electrical system integrates three different protections
- the magnetic one for short circuits that can put an entire building at risk of fire;
- the thermal one for overloads in the supply of electrical energy (e.g. more than one household appliance in operation);
- the differential which protects the subject from a current leakage.
The residual current circuit breaker type A intervention is ensured for sinusoidal alternating currents, differential and pulsating differential unidirectional currents applied suddenly or slowly increasing (CEI EN 61008-1).
Features:
- Bticino series
- Voltage 230 Vac
- Current In 25A
- Interrupting capacity Icn 4,5kA
- Intervention curve C
- Differential current Idn 0.03A
- Type of differential A
- 2 modules
- 1P+N poles
- Height 83 mm
- Width 35.6 mm
- Depth 76 mm
- Maximum cable section 25/35mmq
- Degree of protection IP20
Prodotto integro e corrispondente a richiesta. ServizioClienti ottimo e consegna veloce.
Affidabile
Data sheet
- Modules:
- 2
- Poles:
- 1P+N
- Curve:
- C
- Power:
- 4.5KA
- RCD Type:
- A
- Differential current :
- 0.03A
- Amps:
- 25A
- Circuit Protections:
- RCBO
