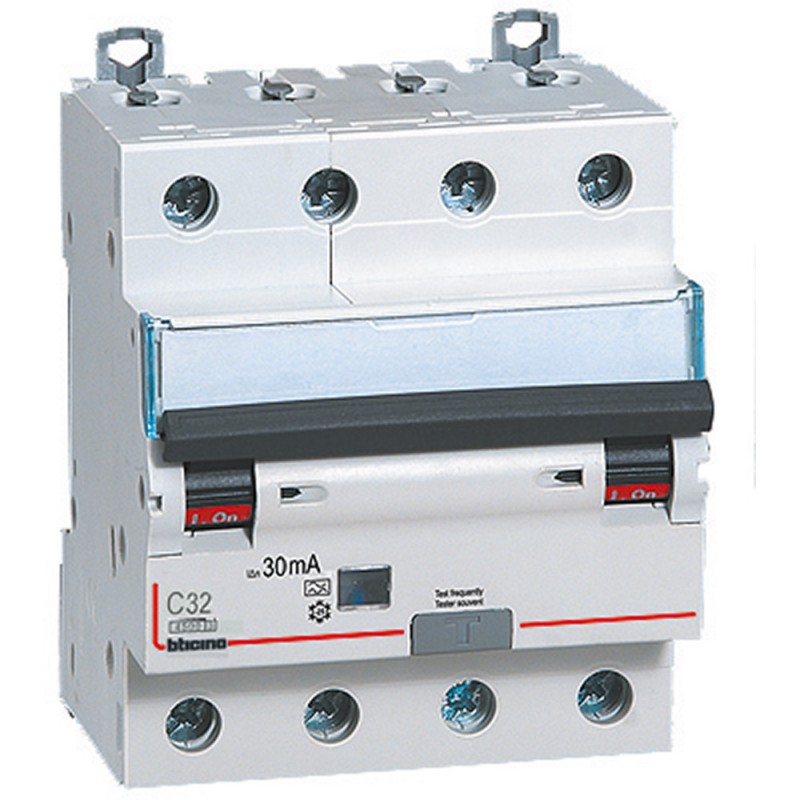

Bticino 4P 32A 30mA differential circuit breaker type A 4.5kA 4 modules GA8843A32
BTI GA8843A32
8005543458587
Bticino differential thermomagnetic circuit breaker, 4 modules, DIN connection (universal for any switchboard on the market), 4 poles, 32 amperes, breaking capacity 4.5kA, voltage 230 Vac, differential current Idn 0.30A, type A, trip curve C.
Bticino 4P 32A 30mA differential circuit breaker type A 4.5kA 4 modules GA8843A32
€305.62
Tax included
€305.62
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
The magnetothermal differential is, therefore, a system that combines the functions of the circuit breaker with the magnetic and thermal characteristics.
The magnetothermal differential switch in the electrical system integrates three different protections
- the magnetic one for short circuits that can put an entire building at risk of fire;
- the thermal one for overloads in the supply of electrical energy (e.g. more than one household appliance in operation);
- the differential which protects the subject from a current leakage.
The type A residual current circuit breaker tripping is ensured for alternating sinusoidal differential currents and unidirectional pulsating differential currents applied suddenly or slowly increasing (CEI EN 61008-1).
Features:
- Bticino series
- Voltage 230 Vac
- Current In 32A
- Interrupting capacity Icn 4,5kA
- Intervention curve C
- Differential current Idn 0,30A
- Type of differential A
- 4 modules
- 4 poles
- Height 83 mm
- Width 71.2 mm
- Depth 76 mm
- Maximum cable section 25/35mmq
- Degree of protection IP20
There are no reviews
Data sheet
- Modules:
- 4
- Poles:
- 4P
- Curve:
- C
- Power:
- 4.5KA
- RCD Type:
- A
- Differential current :
- 0.03A
- Amps:
- 32A
- Circuit Protections:
- RCBO
