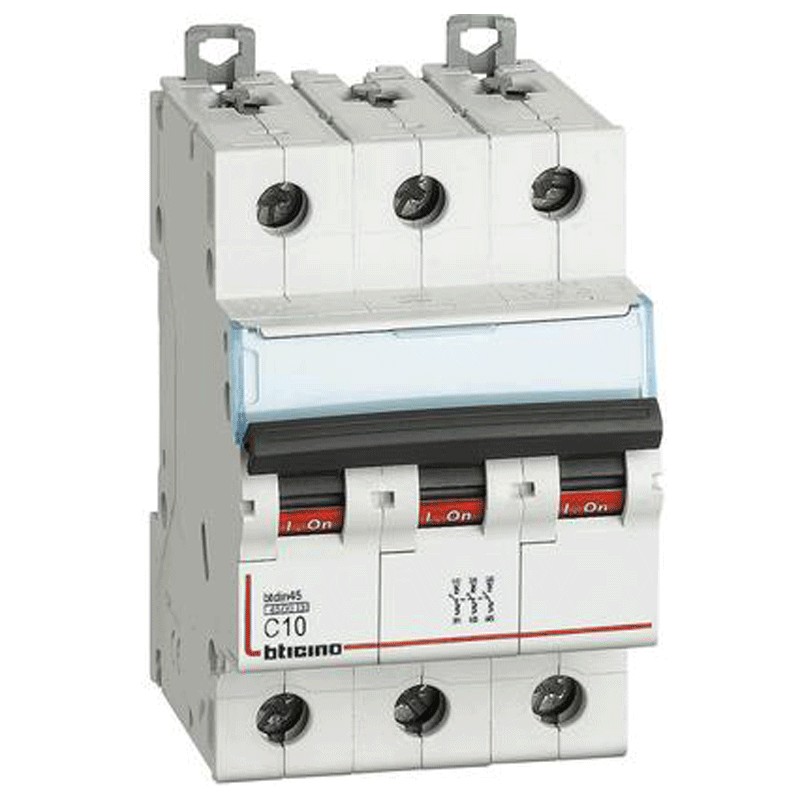

Bticino Circuit breaker 3-pole 10A curve C 4.5K FA83C10
BTI FA83C10
8005543472026
Bticino Circuit breaker, 3 modules, DIN connection (universal for any switchboard on the market), poles 3P, 10 amperes, breaking capacity 4.5 kA, voltage 400 Vac, curve C.
Bticino Circuit breaker 3-pole 10A curve C 4.5K FA83C10
€59.05
Tax included
€59.05
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 7
: 4
Pay in installments with Klarna
The C-curve can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic installations.
A circuit breaker is a safety device that can automatically (i.e. without external intervention) interrupt the flow of electrical current in an electrical circuit in the event of an overcurrent.
Features:
- Bticino series
- Voltage 400 Vac
- Current In 10A
- Interrupting capacity Icn 4,5kA
- Tripping curve C
- 3 modules
- Poles 3P
- Degree of protection IP20
- Height 83 mm
- Width 53.4 mm
- Depth 76 mm
- Maximum cable cross-section 25/35 sq. mm
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 3
- Poles: 3P
- Curve: C
- Power: 4.5KA
- Amps: 10A
- Circuit Protections: Circuit breakers
