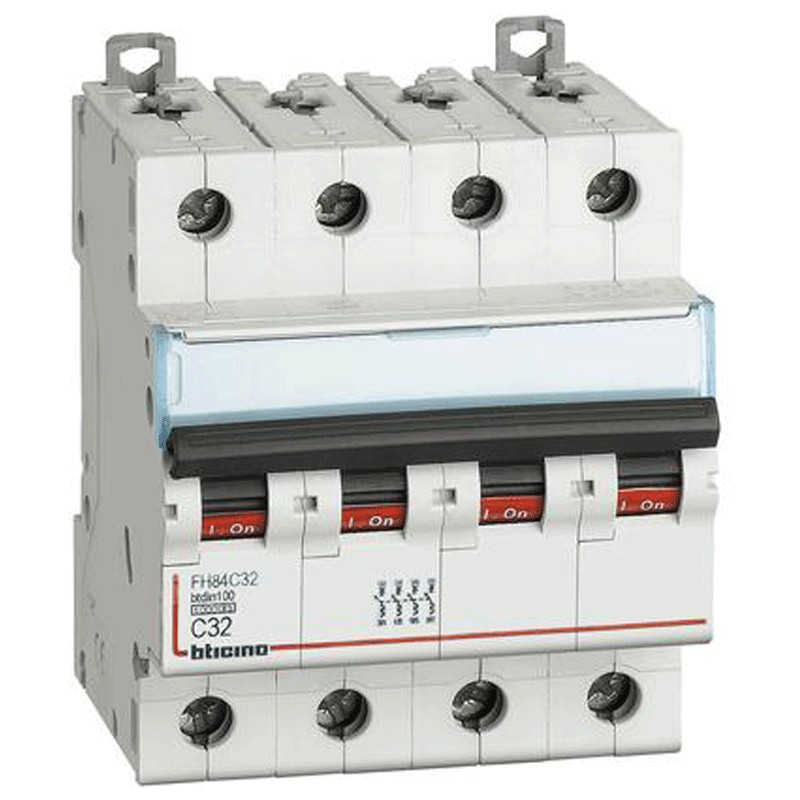

Bticino Circuit breaker 4-Poles 32A C Curve 10kA FH84C32
BTI FH84C32
8005543475225
Bticino thermal-magnetic circuit breaker, 4 modules, DIN connection (universal for any switchboard on the market), poles 4P, 32 amperes, breaking capacity 10kA, voltage 400 Vac, curve C.
Bticino Circuit breaker 4-Poles 32A C Curve 10kA FH84C32
€120.99
Tax included
€120.99
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 16
: 3
Pay in installments with Klarna
The C-curve can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic installations.
A circuit breaker is a safety device that can automatically (i.e. without external intervention) interrupt the flow of electrical current in an electrical circuit in the event of an overcurrent.
Features:
- Bticino series
- Voltage 400 Vac
- Current In 32A
- Interrupting capacity Icn 10kA
- Tripping curve C
- 4 modules
- Poles 4P
- Degree of protection IP20
- Height 83 mm
- Width 71.2 mm
- Depth 76 mm
- Maximum cable cross-section 25/35 sq. mm
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 4
- Poles: 4P
- Curve: C
- Power: 10KA
- Amps: 32A
- Circuit Protections: Circuit breakers
