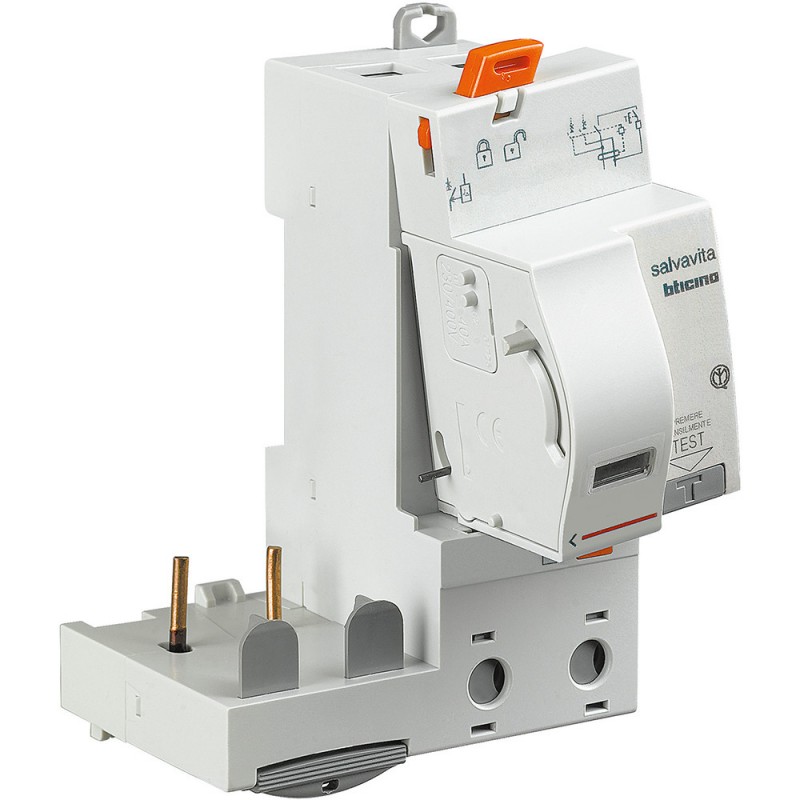

Bticino differential block 2P 63A A 30MA G23A63
BTI G23A63
8005543462829
Differential block (circuit breaker) Bticino, with the following characteristics:
- 2 modules
- DIN connection (universal for any switchboard on the market)
- 2 poles
- 63 amperes
- Differential current Idn 30mA
- Voltage 230/400 Vac
- Type of differential A
Bticino differential block 2P 63A A 30MA G23A63
€143.80
Tax included
€143.80
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
The differential blocks are mechanically designed to prevent a wrong coupling between the block and the circuit breaker: the power of the block must always be equal or greater than that of the circuit breaker. The lateral plastic clamp allows a quicker assembly of the block on the circuit breaker and a push button prevents possible interventions.
It is used to protect human health in case of earth fault (electrical leakage) or phase-to-earth electrocution, thus providing protection also against macro electrical shock, both direct and indirect, on exposed persons.
The differential block type A, ensures operation for AC and unidirectional pulsating type currents.
Features:
- Bticino series
- Voltage 230/400Vac
- Current In 63A
- Differential current Idn 30mA
- Differential type A
- 2 modules
- 2 poles
- Degree of protection IP20
- Height 83 mm
- Width 35,6 mm
- Depth 76 mm
- Maximum cable section 25/35 mmq
There are no reviews
Data sheet
- Voltage: 230/400VAC
- Modules: 2
- Poles: 2P
- RCD Type: A
- Differential current : 0.03A
- Amps: 63A
- Circuit Protections: Earth Leakage add-on Blocks
