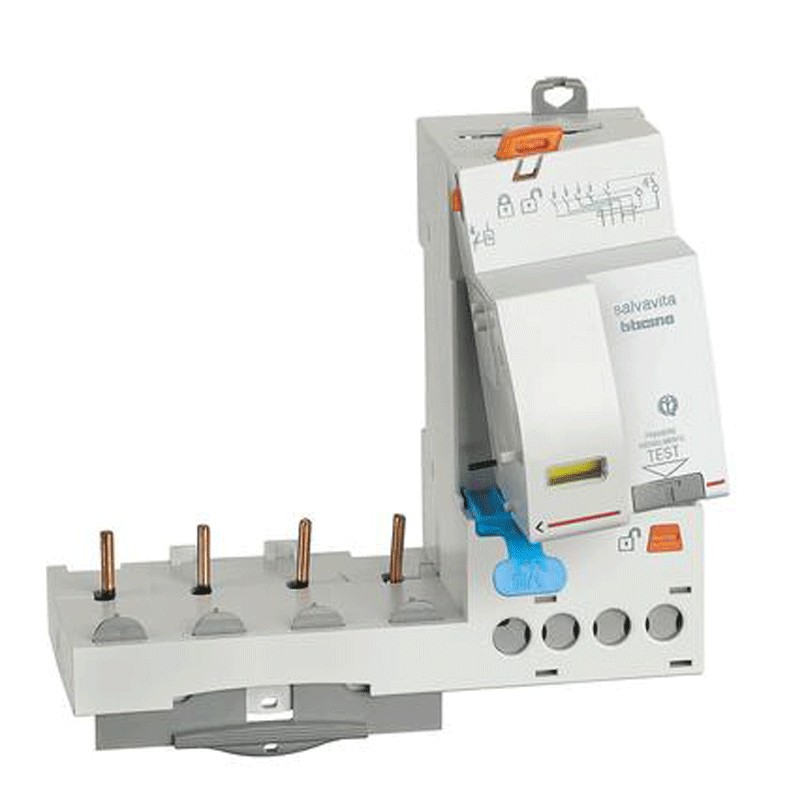

Bticino differential block 4P 32A A 30mA G43A32
BTI G43A32
8005543463079
Differential block (circuit breaker) Bticino, with the following characteristics:
- 2 modules
- DIN connection (universal for any switchboard on the market)
- 4 poles
- 32 amperes
- Differential current Idn 30mA
- Voltage 400 Vac
- Type of differential A
Bticino differential block 4P 32A A 30mA G43A32
€178.59
Tax included
€178.59
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 17
: 3
The differential blocks are mechanically designed to prevent a wrong coupling between the block and the circuit breaker: the power of the block must always be equal or greater than that of the circuit breaker. The lateral plastic clamp allows a quicker assembly of the block on the circuit breaker and a push button prevents possible interventions.
It is used to protect human health in case of earth fault (electrical leakage) or phase-to-earth electrocution, thus providing protection also against macro electrical shock, both direct and indirect, on exposed persons.
The differential block type A, guarantees the operation for AC and unidirectional pulsating type currents.
Features:
- Bticino series
- Voltage 400Vac
- Current In 32A
- Differential current Idn 30mA
- Differential type A
- 2 modules
- 4 poles
- Degree of protection IP20
- Height 83 mm
- Width 95 mm
- Depth 76 mm
- Maximum cable section 25/35 mmq
There are no reviews
Data sheet
- Voltage:
- 400VAC
- Modules:
- 2
- Poles:
- 4P
- RCD Type:
- A
- Differential current :
- 0.03A
- Amps:
- 32A
- Circuit Protections:
- Earth Leakage add-on Blocks
